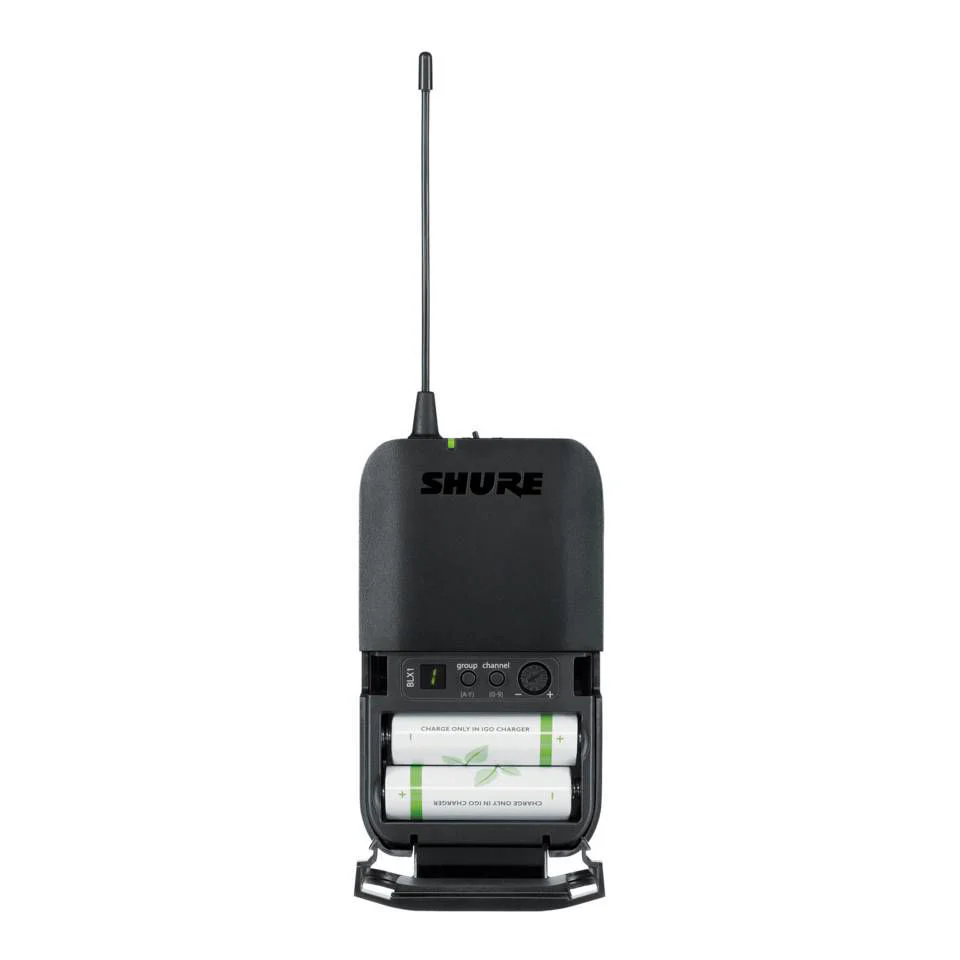

The BLX1 bodypack has a lightweight and durable design. Ergonomically designed to fit comfortably in hand, with adjustable gain control. The BLX1 bodypack transmitter is included in BLX and BLX-R Analogue Wireless Systems. You will get up to 14 hours of continuous use using 2 x AA batteries (included) and an operating range of 100m.

---

Features

• Power and battery status LED
• Adjustable gain control
• Quick and easy frequency matching
• AA batteries (included) provide up to 14 hours of continuous use
• 100 m (300 ft.) operating range (line of sight)

---

Specifications

• Audio Input Level: Max -16 dBV maximum | Min (0 dB) +10 dBV maximum
• Gain Adjustment Range: 26 dB
• Input Impedance: 1 MΩ
• RF Transmitter Output: 10 mW, typical (varies by region)
• Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
• Weight: 2.6 oz. (75 g), without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)
• Audio Input Level: 0dB -20 dBV maximum | -10dB -10 dBV maximum
• Gain Adjustment Range: 10 dB
• RF Transmitter Output: 10 mW, typical (varies by region)
• Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
• Weight: 7.7 oz. (218 g) without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)

---
