Features

• Up to 12 compatible systems (region dependent)
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open frequency

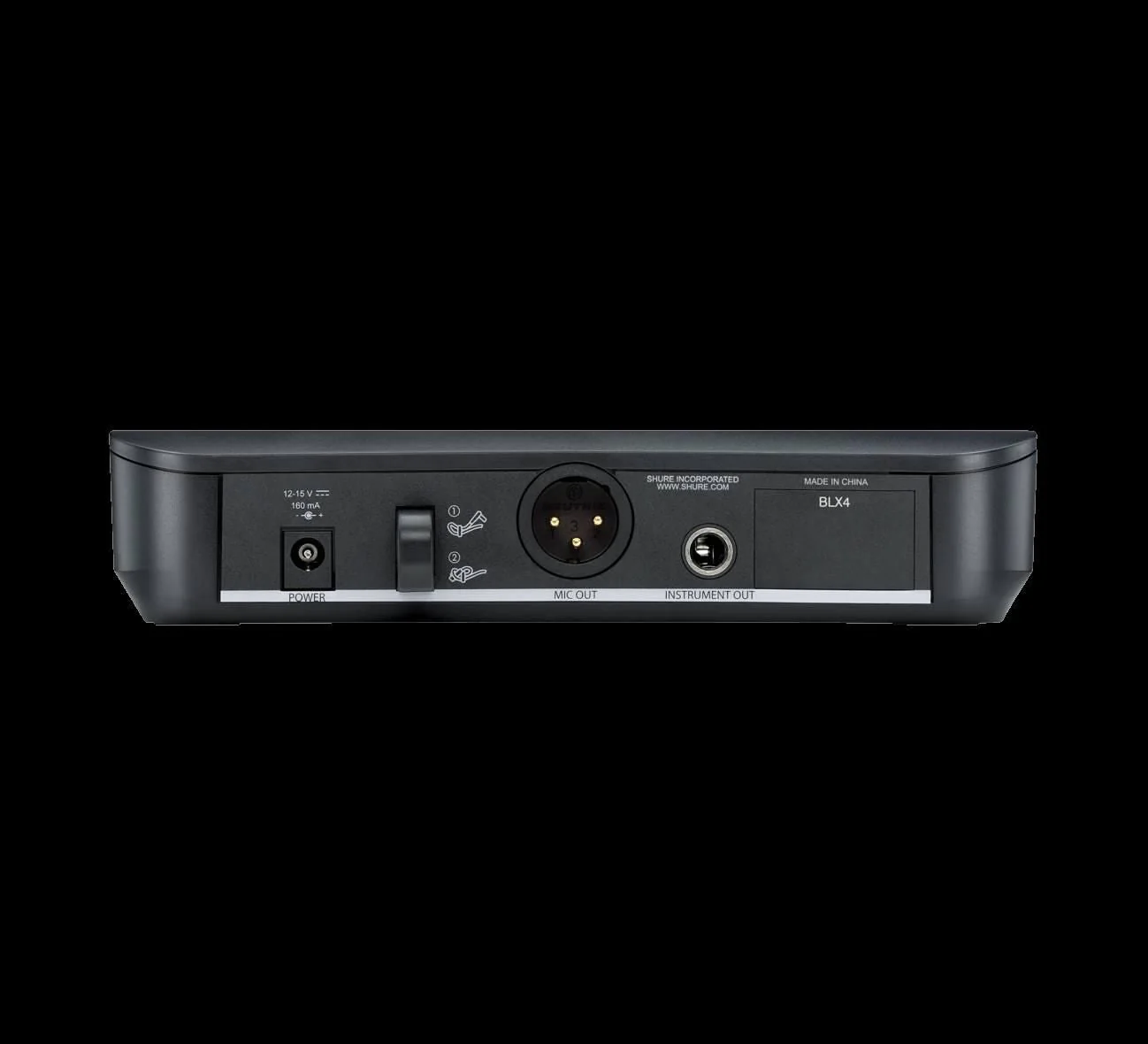

• ¼" and XLR audio outputs
• Frequency Band Version: K14: 614-638MHz
• Two color audio status indicator LED
  • Green: Normal audio levels
  • Red: Excessive audio levels (overload/clipping)

Specifications

• Weight: 241 g
• Height x Width x Depth: 40.0 × 188.0 × 103.0 mm
• Transmission: Analog
• Type of Power Supply: External
• Receiver Housings: Molded ABS
• Active Antenna Possible: No
• Bias via BNC: No
• Encryption: No
• High Density Mode: No
• Interference Detection: No
• Remote Control: No
• Number of compatible systems per frequency band: Up to 12
• DANTE-Enabled Products: No
• Scan Features: Quick Scan
• Sync Features: None
• Detachable Antennas: No
• Network ability: No
• Software control: No
• Logic: No
• Cascade: No
• Rack Hardware: Optional: Urt2
• Receiver Displays: LEDs
• Receiver type: Single
• Included antenna: Internal
• Line Mic Switch: No
• Image Rejection: 50 dB, typical
• RF Sensitivity: -105 dBm, for 12dB SINAD, typical
• Phantom Power Protection: Yes
