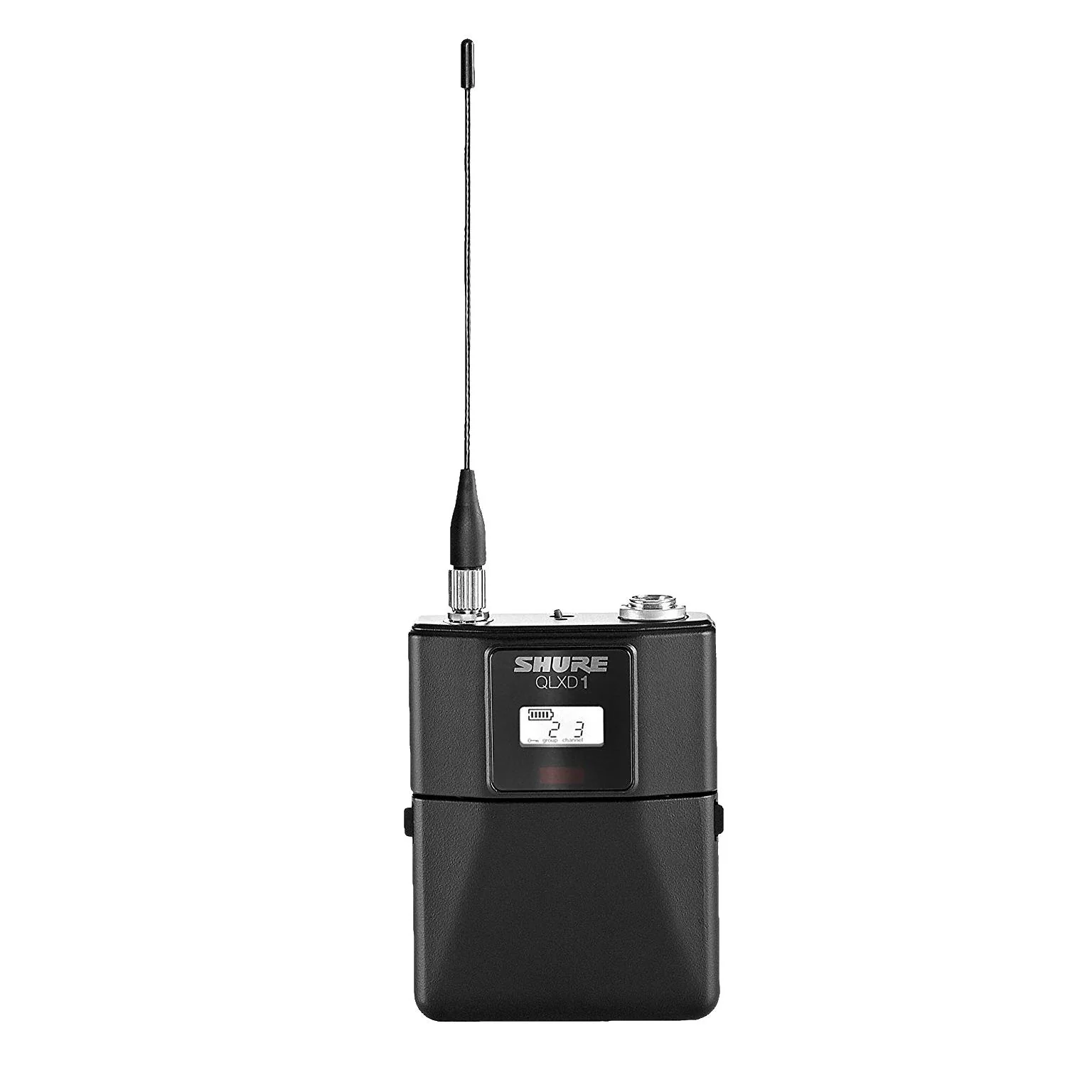

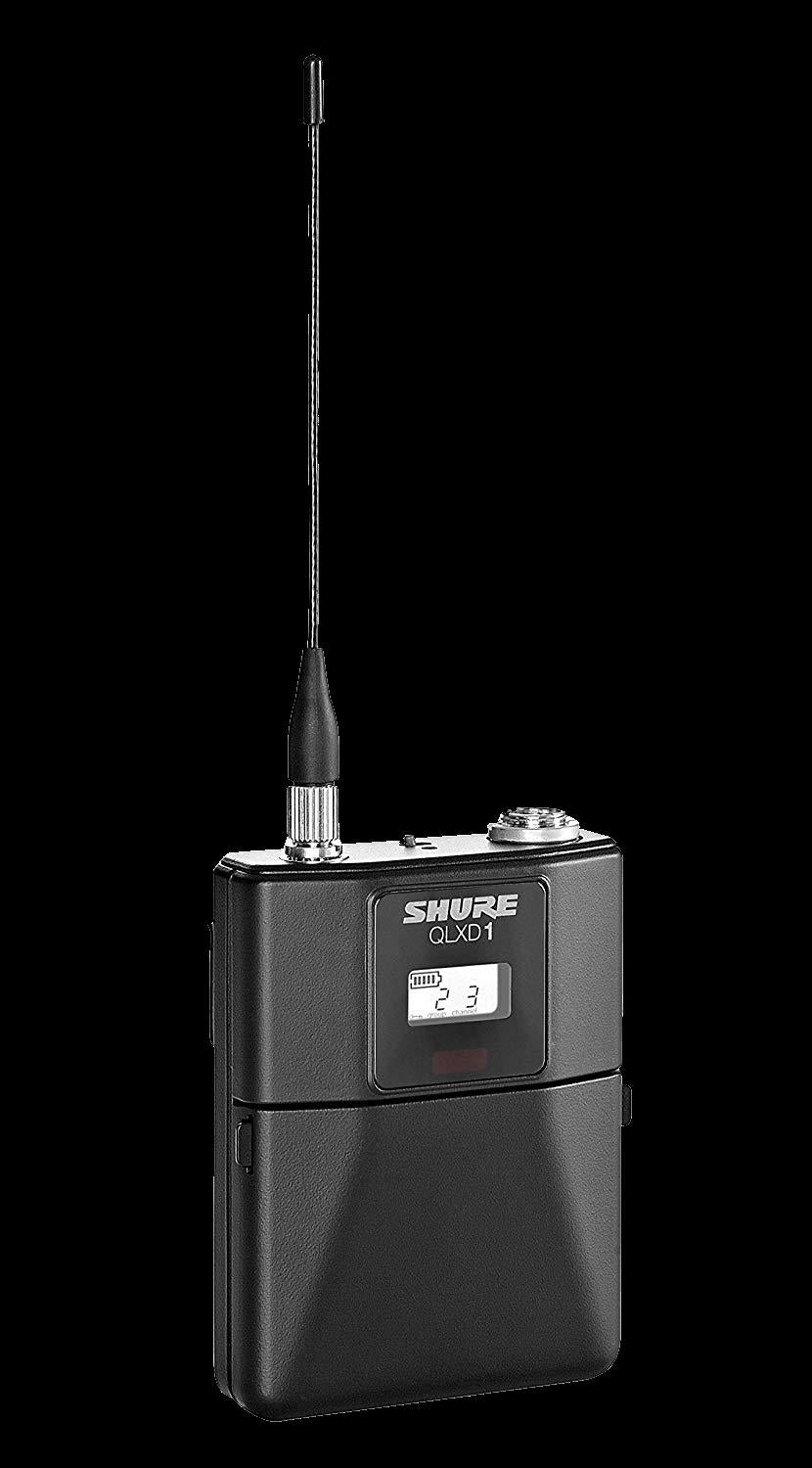

Shure QLXD1K52 Wireless Digital Mic Bodypack Transmitter (K52 = 606-670MHz)
Featuring transparent 24 bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues, and houses of worship.
Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durab
Features
- 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
- Over 120 dB of dynamic range - no transmitter gain adjustments needed
- AES 256-bit encryption for secure transmission
- Up to 9 hours continuous use with 2 x AA alkaline batteries
- Optional Shure lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- 100 meter (300 feet) line-of-sight operating range
- 4-Pin male mini connector (TA4M)
- Rugged metal construction
- Detachable ¼ wave antenna
- Frequency and power lockout
- Frequency Band Version K52 = 606-670MHz
Specifications
- Weight: 138 g
- Height x Width x Depth: 86.0 × 65.0 × 23.0 mm
- Battery life lithium: 10 h
- Battery life alkaline: 9 h
- Form Factor: Bodypack
- Transmitter housings: Metal
- Audio Mute: No
- Detachable Antennas: Yes
- Switchable RF power: Yes
- Batteries: AA, Shure Lithium-Ion battery
- Battery Status: Leveled battery life indication
- Encryption: 256 Bit AES
- Charger Options: Docking Charger
- Configuration: Unbalanced
- Connectors: TQG
- Frequency Diversity: No
- Functionality: Transmitter
- High Density Mode: No
- Included antenna: 1/4 wave
- Input impedance: 50 kΩ
- Transmitter displays: Backlit LCD
- Transmission: Digital in VHF, UHF, 900MHz ISM, 1.5GHz, 1.8GHz
