Building off the legacy of the award-winning Astra Modulation Machine, the all-new Brigade Chorus & Vibrato pedal from Universal Audio offers the gloriously warm analog modulation sounds of the coveted BOSS CE-1 Chorus Ensemble, along with the thick tone of it's legendary preamp - all inside a compact stompbox.

Features

• Authentic emulation of iconic 1976 Boss CE-1 Chorus Ensemble
• Perfectly captured bucket-brigade circuit for thick chorus and vibrato effects
• Stunning emulation of vintage analog preamp for fat tones and effects
• Volume control true/buffered bypass, preamp off/on
• Timeless UA design and craftsmanship, built for decades of dependable performance

A Vintage Classic, Revived.

Featuring switchable Chorus and Vibrato modes, Brigade is a mono modulation pedal that offers a faithful emulation of a 1976 icon. Delivering subtle modulation textures and warbling vibrato sounds, this pedal offers timeless UA design and world-class craftsmanship. With a streamlined control layout for rate, depth, and level, this pedal also features a switchable true/buffered bypass mode, so your tone stays un-touched when the pedal is in bypass. Finally, with a switch on the rear panel to engage a perfectly emulated preamp circuit of the legendary original hardware, you can fatten up the signal of any guitar.

Specifications

• Input: ¼” Unbalanced TS
• Output: ¼” Unbalanced TS
• Input Impedance: 1MΩ
• Output Impedance: 500Ω
• Maximum Input Level: 12.2dBu
• Maximum Output Level: 12.1dBu
• Frequency Response: 20Hz to 20kHz, ±1dB

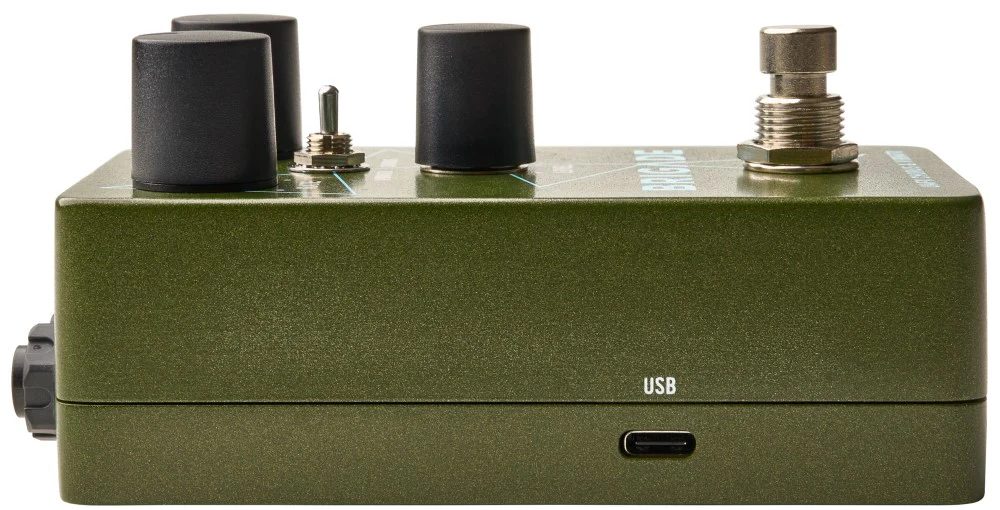

• USB Type-C: for Registration and Firmware Updates via Computer
• Power Requirements: Isolated 9V DC, Center-Negative, 250mA Minimum (Power Supply Sold Separately)
• Dimensions (with Knobs and Protrusions)
  • 65mm (H) x 92mm (W) 141mm (D)
  • 280g
