Made With USA Custom CineMag Transformers
Every aspect of our direct boxes are designed for maximum sonic integrity, from the custom-wound CineMag USA transformer to the rugged metal knob and switches. You can expect warm, rich tone even after long cable runs, and the extruded aluminum enclosure ensures a long life span. When you need to convert an instrument-level signal to mic-level, with sonic quality as your top priority, you'll be well-served with the Direct Box Active and Direct Box Passive from Warm Audio.

New DI Box Experience
Warm Audio DI boxes offer the rare versatility of having an onboard variable pad knob which attenuates your input signal all the way from -3dB to -30dB, which will easily tame any instrument input source.

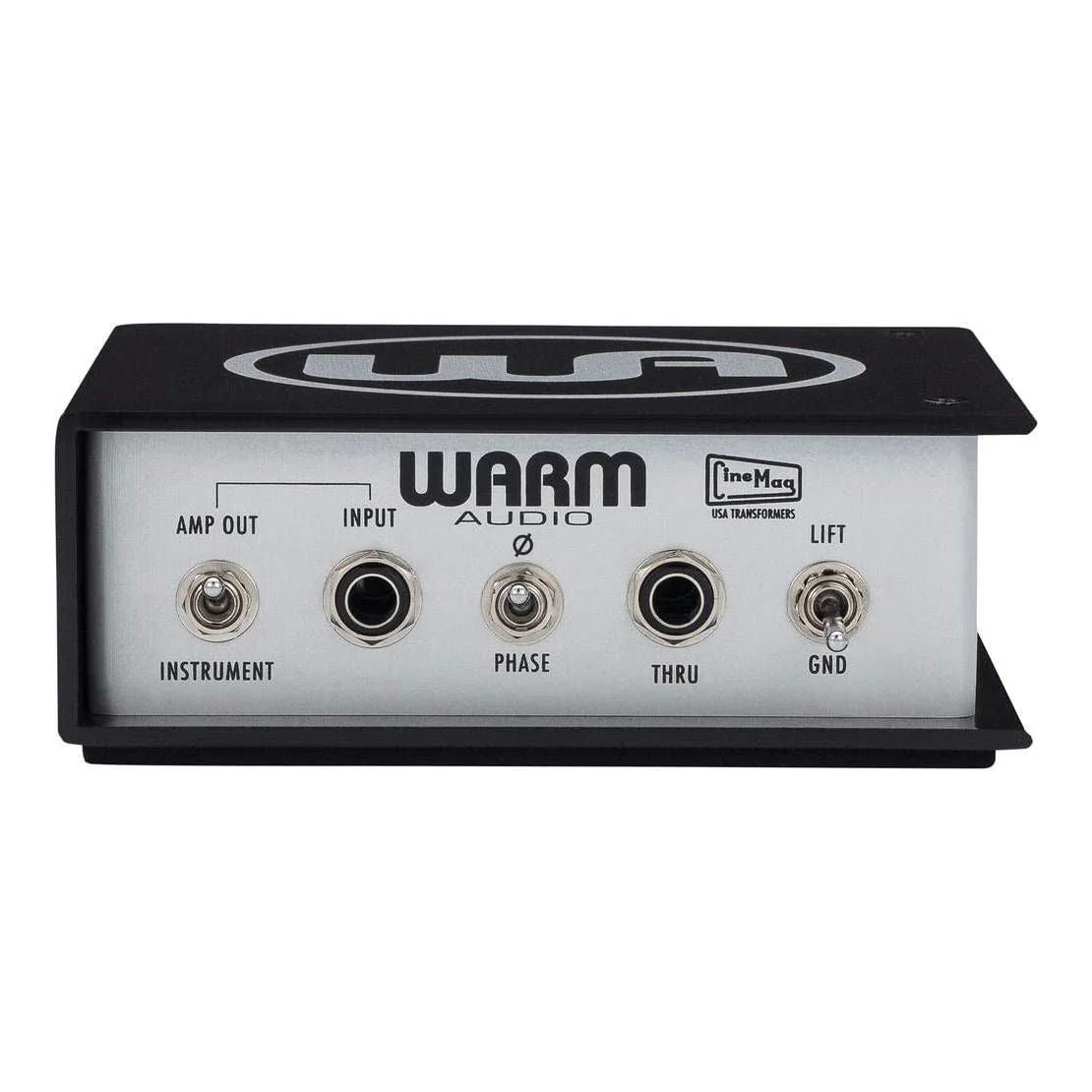

Both of our Direct Boxes offer a Thru-put jack that is jumpered to the input jack. It is a convenience jack allowing you to send your instrument's signal to a second place in addition to the live mixer or recording device. Our Direct Boxes can also take a recorded signal at line level and send it to another line input while simultaneously sending signal out of the XLR mic level output of the Direct Box.

Specifications

• CUSTOM-WOUND CINEMAG USA OUTPUT TRANSFORMER
• CONVERTS INSTRUMENTS TO MIC-LEVEL SIGNALS WITHOUT SIGNAL DEGRADATION
• IDEAL SOLUTION FOR PLUGGING YOUR INSTRUMENT DIRECT INTO ANY MIC PRE

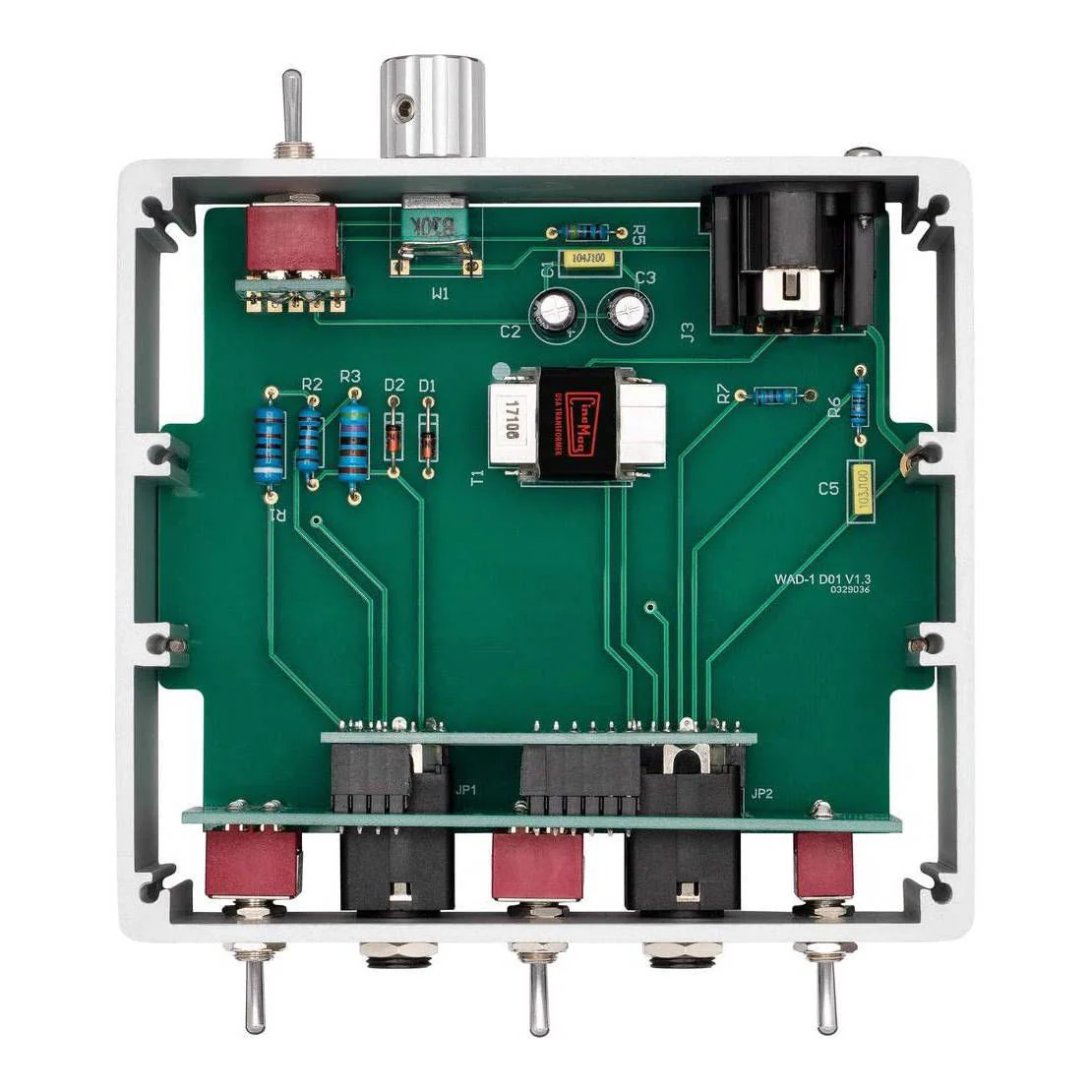

• TOP-QUALITY CLASS A COMPONENTS WITH GOLD-PLATED TRACES ON CIRCUIT BOARD
• RUGGED ALUMINUM CONSTRUCTION
• PAD: VARIABLE FROM -3DB TO -30DB
• BALANCED OUTPUTS: 600 OHMS, MIC LEVEL
• INPUT IMPEDANCE: 1 MEG OHMS
• THD: .01% FROM 20HZ TO 100HZ. LESS THAN .004% FROM 100HZ TO 20KHZ
• FREQUENCY RESPONSE: 20HZ TO 70KHZ +/- 0.5DB
