Combining carefully selected and customized transducers with the same high-grade plywood construction found on Yamaha’s high-end CZR Series, the CHR10 offers best-in-class sound quality and durability.

---

Features

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface

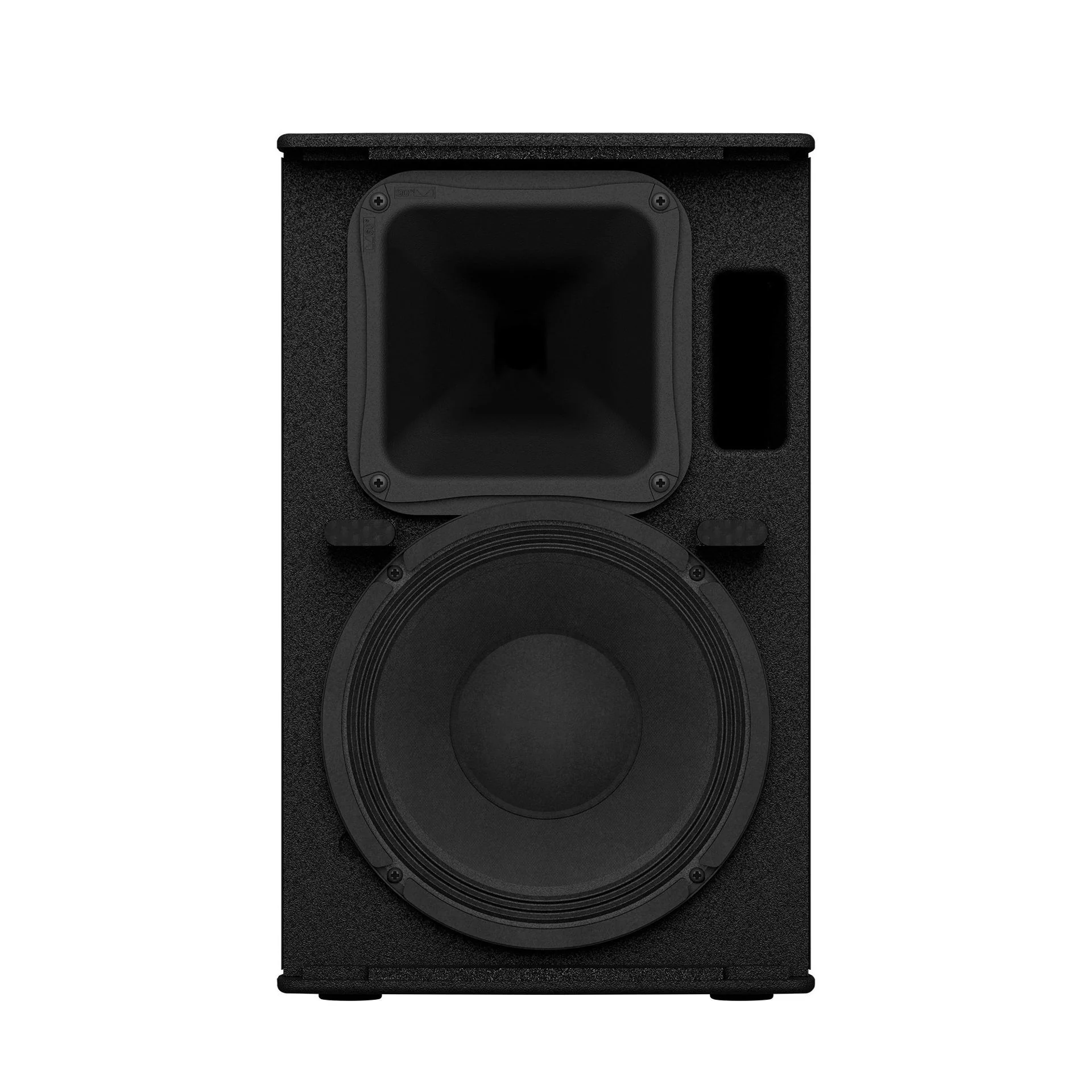

• Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response
• Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
• Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
• A pole socket for use on a stand
• Rigging points for use with eye bolts
• Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

---

Specifications

• Speaker type: 2-way Speaker, Bass-reflex
• Frequency range (-10dB): 55 Hz - 20 kHz
• Coverage area: H90ﾟ x V60ﾟ (Rotatable)
• Crossover: 2.5 kHz
• Nominal impedance: 8 Ω
• Sensitivity (1W; 1m on axis): 93 dB SPL
• Peak (Calculated): 122 dB SPL
• Components LF: Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
• Components HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
• NOISE: 175 W
• PGM: 350 W
• PEAK: 700 W

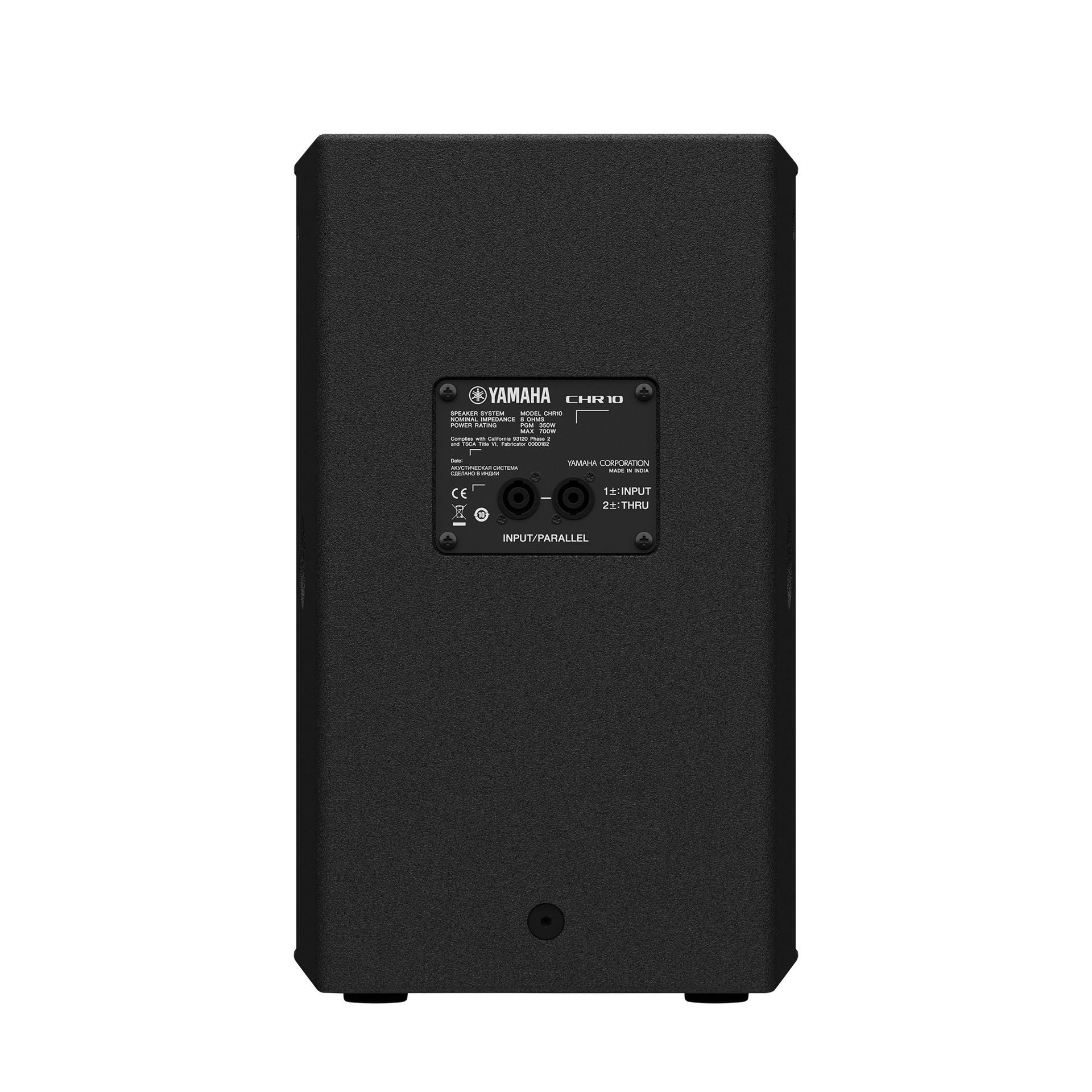

• I/O connectors: SpeakON NL4MP x 2 (Parallel)
• Cabinet material: Plywood
• Finish: Durable Polyurea Painting, Black
• Handle: Top x1
• Pole socket: Φ35 mm x1 (Bottom)
• Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
• Floor Monitor Angle: -
• Dimensions WxHxD: 305 mm (12.0") x 494 mm (19.5") (with rubber feet) x 300 mm (11.8")
• Net Weight: 13.7 kg (30.2 lbs)
• Options: U-bracket: UB-DXRDHR10

---
