Features

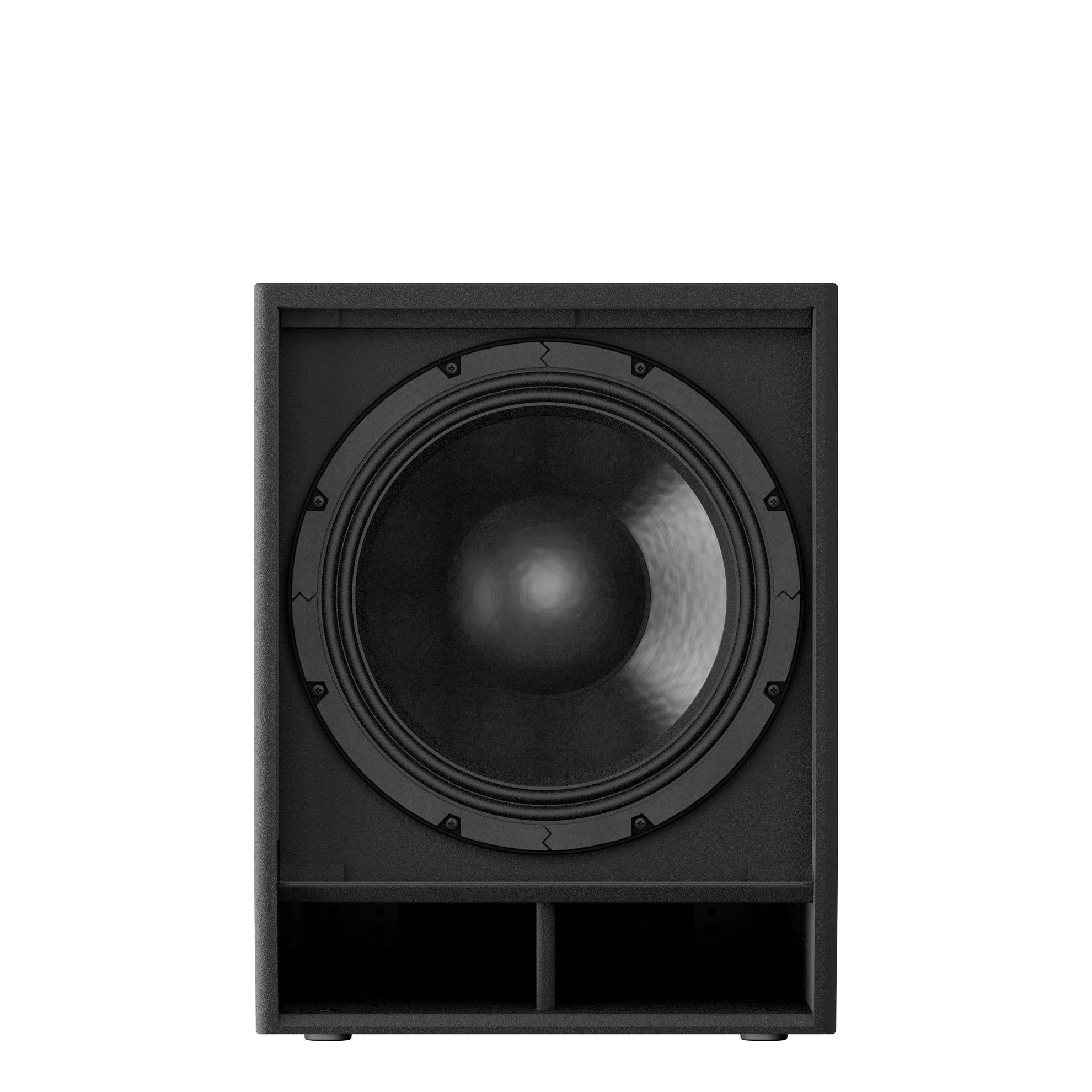

• 15” subwoofer with 4” Voice Coil
• High power 800W (PGM) input
• Cardioid mode capable with processors or DSP onboard power amps
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Dual-pole socket
• Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
• Durable Black Finish

---

Specifications

• Speaker type: Subwoofer, Bass-reflex
• Frequency range: (-10dB) Passive: 33 Hz - 3.5kHz, Normal (*1): 35 Hz - 150 Hz, Extend (*1): 33 Hz - 150 Hz
• Coverage area: -
• Floor Monitor Angle: -
• Components LF: 15" Cone, 4" Voice Coil, Ferrite magnet
• Components HF: -
• Crossover: -
• Power Rating NOISE: 400 W (EIA 426-A)
• Power Rating PGM: 800 W (EIA 426-A)
• Power Rating PEAK: 1600 W (EIA 426-A)
• Nominal impedance: 8Ω
• SPL Sensitivity (1W; 1m on axis): 98dB *2
• SPL Peak (Calculated): 130 dB *2
• I/O connectors: SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Handle: Aluminium die-cast, Side x2
• Pole socket: Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
• Rigging: -
• Width: 450 mm (17.7")
• Height: 587 mm (23.1") (with rubber feet)
• Depth: 600 mm (23.6")
• Net weight: 35.6kg (78.5 lbs)
• Options Cover: SPCVR-DXS15X, Caster: SPW-1
• Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White

---
