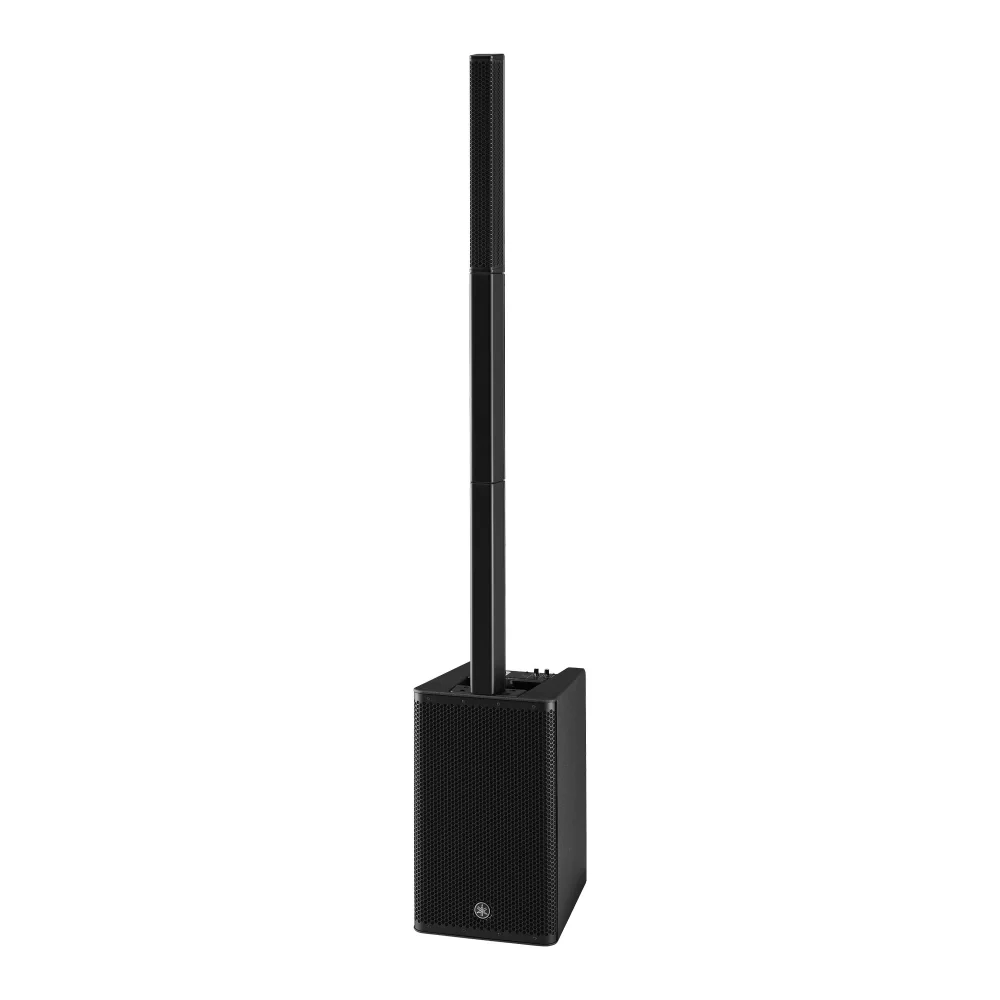

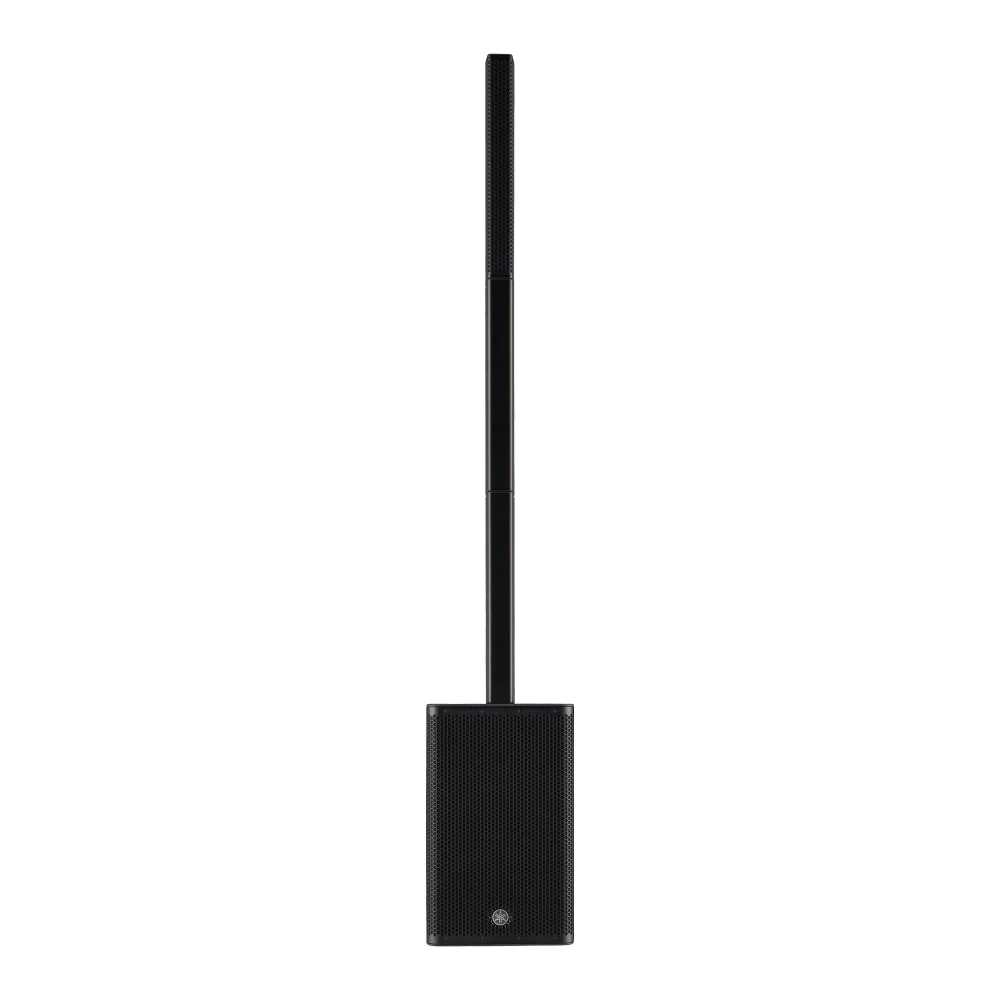

Combining easy setup by simply attaching the line array speaker to the top of the subwoofer enclosure and system expandability with the link function, when used in combination with a compact mixer or the fully compatible STAGEPAS 1K mkII, it creates a simple, compact, high-quality PA system. Features Compact yet Powerful Despite its lightweight and compact cabinet construction, the DXL1K features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL. Offering an impressive 170° horizontal and 30° vertical coverage, the DXL1K delivers clear, high-quality sound consistently throughout a wide area. J-Curve Slim Line Array The high-frequency speaker array is comprised of 10 small-diameter 1.5-inch speakers. By adopting a J-curve array configuration, the high-frequency unit achieves vertical coverage of 30 ° across a span of 170 °. With such a long, 10-driver array design the DXL1K can deliver clear, high quality sound consistently over longer distances, projecting uniform, high-quality sound from the front to the rear of the audience. Class-leading 12-inch “compact” subwoofer The subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. Despite housing a 12-inch speaker unit that is the largest in its class, the DXL1K boasts the smallest cabinet on the market for a subwoofer of this size and power. By incorporating Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass. 1100W Amplifier Also at the top of its class for output power, the 1100W Class-D amplifier module is capable of delivering an impressive 125 dB SPL from the deceptively compact speaker cabinet. And just as importantly, we’ve leveraged Yamaha’s decades-long experience as a manufacturer of professional PA products, and innovator of related technologies to ensure that with great power comes great stability, and that the DXL1K maintains the same accurate, superior-quality sound even at high output. High-Grade Polyurea Coating The lightweight ABS cabinet of subwoofer features a high-grade polyurea coating to prevent wear and tear during transport. It is light enough to make the system extremely portable, but also rugged and scratch-resistant enough to withstand harsh performance environments. Dolly (DL-SP1K) An optional dedicated dolly allows for more convenient transportation — particularly useful for performers transporting additional gear and instruments. Featuring a simple, sturdy mechanism that locks down the speaker cover the lightweight dolly enables smooth, reliable transportation.

Specifications

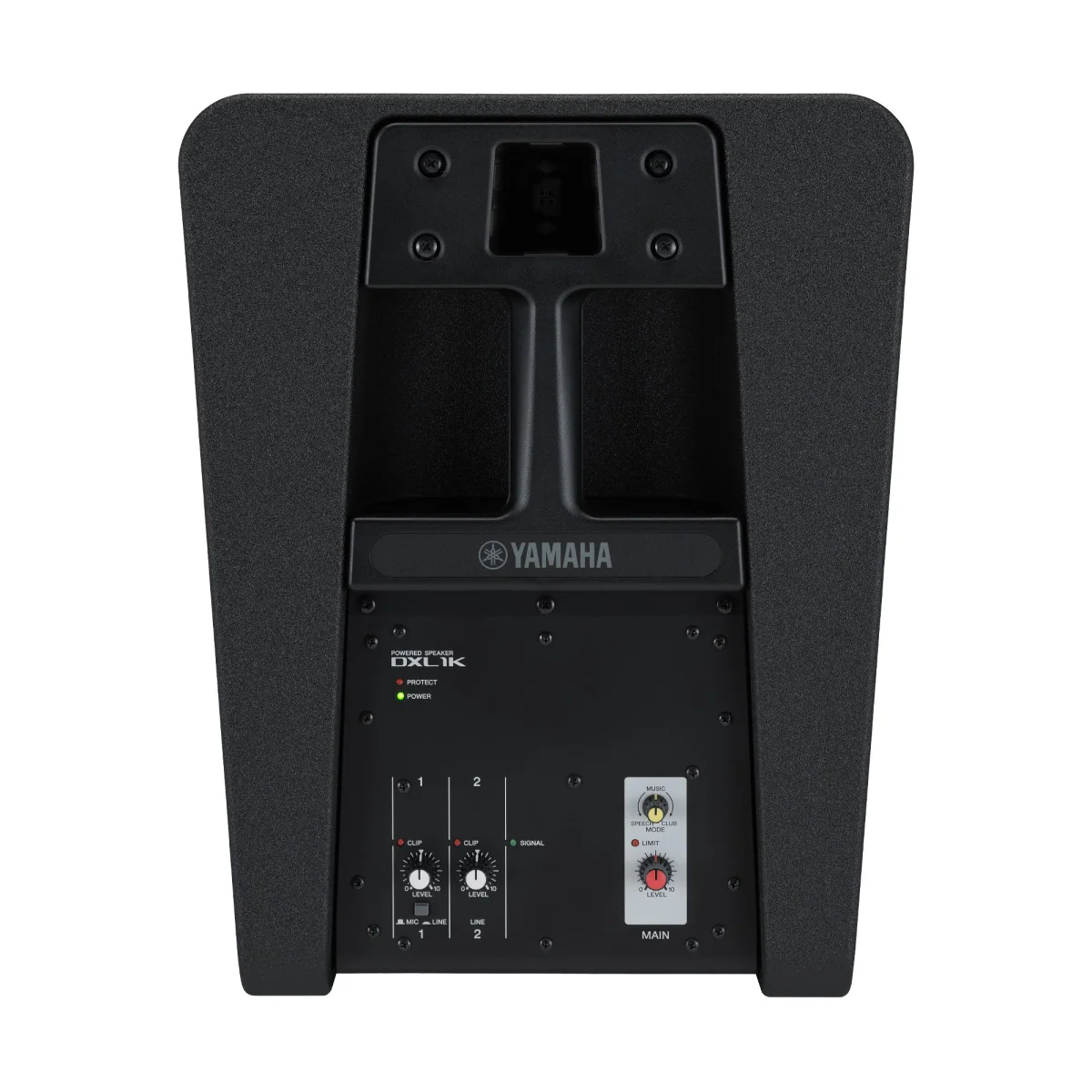

Speaker Type: Powered subwoofer with a line array speaker Frequency range (-10dB): 37 Hz - 20 kHz Coverage Area: H170ﾟ x V30ﾟ Crossover: 240 Hz Maximum output level (1m; on axis): 125 dB SPL Components: LF: Powered subwoofer: 12” (30 cm) Cone HF: Line array speaker: 1.5” (3.8 cm) Cone x 10 Amplifier class: Amplifier class Class-D Power rating: Dynamic 1100 W Power consumption: 25 W (Idle), 91 W (1/8 power) Power requirements: Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz Processors: MODE (SPEECH/MUSIC/CLUB) I/O connectors: INPUT1: Combo x1 (mic/line), INPUT2: Combo x1 (line), LINK IN: XLR x1, LINK OUT: XLR x1 Handle: Top of powered subwoofer x1 Dimensions System: 334 x 2,000 x 418 mm (maximum) Line array speaker: 67 x 582 x 86 mm Powered subwoofer: 334 x 550 x 418 mm Spacer: 67 x 555 x 86 mm (each) Product Weight System: 23.0 kg (maximum) Line array speaker: 1.8 kg Powered subwoofer: 20.0 kg Spacer: 0.6 kg (each) Accessories Power cord x1 Cover x1 DL-SP1K Dolly
