Features

• Louder, Lighter, Legendary
• Yamaha ingenuity and NEXO expertise combine for a new lineup of DXRs
• Less Weight, More Power
• Ultra-Precise 48Bit DSP Processing for High-Definition Sound
• Intelligent Dynamic Control for Consistent Clarity at Any Output Level
• Extensive DSP Protection Functions for Maximum Output
• High-Efficiency 1100W Class-D Amplifiers
• Intelligent Onboard 3-Channel Mixer
• Durable, Compact ABS Enclosures
• Symmetrical Enclosure Design for Mirror-Mode Floor Monitoring
• Dual-Angle Pole Mount Socket
• Rigging Points for Standard Eye-Bolts and Optional U-Brackets

---

Specifications

• Speaker type: 12" 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB): 52Hz - 20kHz
• Nominal coverage:
  • H:90°
  • V: 60°
• Components:
  • LF: Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite
  • HF: Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
• Crossover: FIR-X tuning™ (linear phase FIR filter)
• Output power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
• Maximum output level (1m; on axis): 134dB SPL

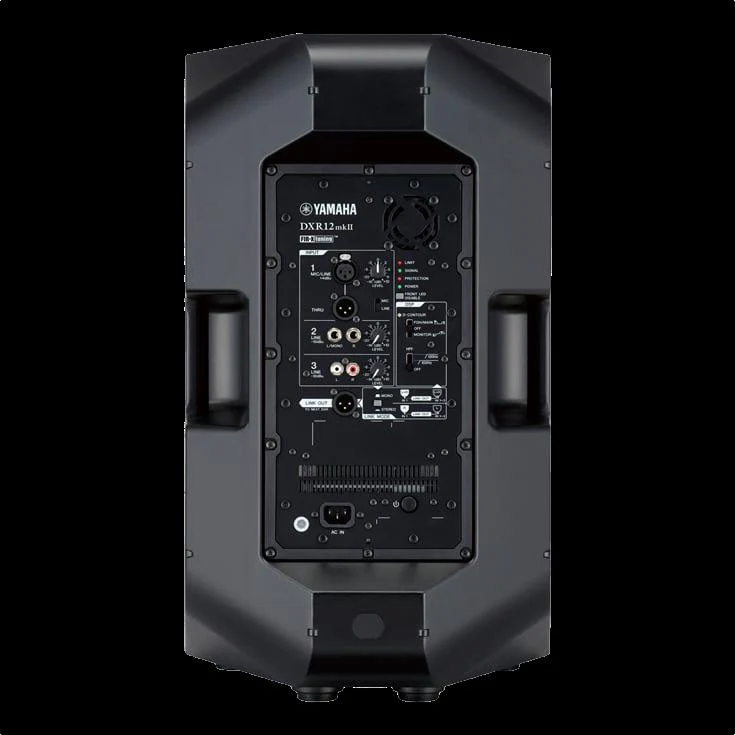

• I/O connectors: INPUT: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
• Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
• Power requirements: 100V - 240V, 50Hz/60 Hz
• Power consumption: 110W
• Flying and mounting hardware: Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
• Pole socket: 35mm with 2-way features (0 or 7 degrees)
• Dimensions:
  • W: 362mm (14 2/8")
  • H: 601mm (23 5/8")
  • D: 350mm (13 6/8")
• Net weight: 18.6kg (41.0lbs)
• Accessories: UB-DXR12 (U-bracket)
• Others: Material: Material: ABS (Matte Finish, Black)

---
