For smaller venues or temporary sound reinforcement setups that require serious power with a professional edge, look no further than this compact powerhouse.

Try selecting our D-XSUB “BOOST” or “XTENDED LF” low frequency processing settings, turn up the volume, and watch the eyes widen and jaws drop. All this in a small, easy to install enclosure.

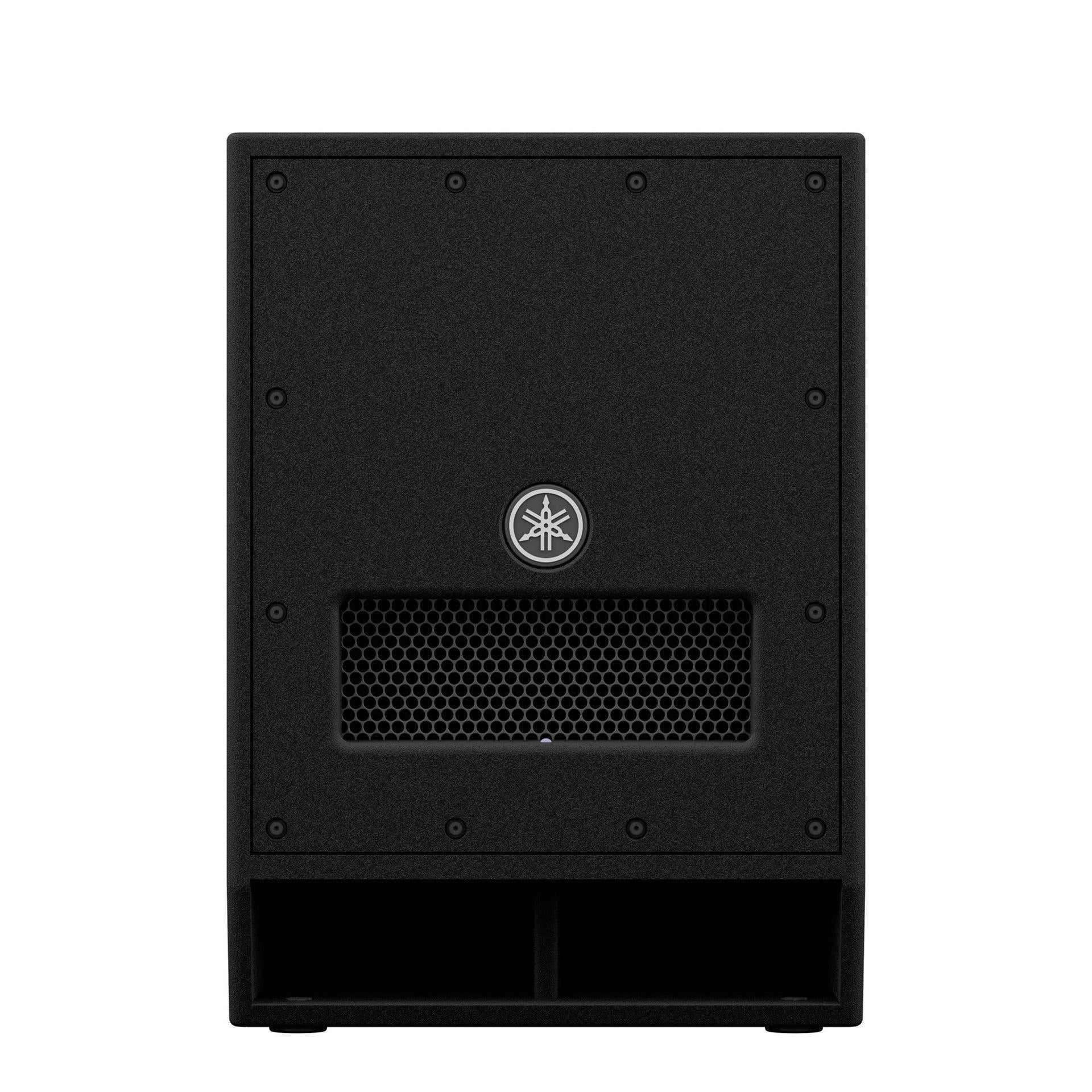

• 12" powered subwoofer with 1020W class-D power amplifier
• High-output 12” woofer with a band-pass design cabinet for superb bass response with a maximum 134dB SPL
• 42Hz-150Hz frequency range is ideal for small to medium-sized applications
• Built-in D-XSUB processing allows you to extend the frequency response even lower
• Plywood cabinet is durable and acoustically optimized for minimal distortion
• Cardioid mode for bass management onstage
• Selectable X-OVER (80/100/120 Hz)
• M20 and Ø35 mm dual pole sockets
• Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS122)

Product Specifications

Speaker Type	12" powered subwoofer Band-pass type
Frequency Range (-10dB)	42 Hz - 150 Hz
Components	12" cone and 2.5" voice coil
Output Power	Dynamic:1020W / Continuous: 800W
Maximum Output Level	134 dB SPL
I/O Connectors	INPUT: XLR-3-31 x2 THRU: XLR3-32 x 2 (Parallel with INPUT)
Processors	D-XSUB: BOOST XTENDED-LF OFF
Cooling	Natural convection
Power Requirements	100V – 240V 50Hz/60Hz
Power Consumption	100W
Pole Socket	35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Width	400 mm (15.75")
Height	567 mm (22.32")
Depth	570 mm (22.44")
Weight	30.0 kg (66.1lbs)
Others	Meranti Plywood Durable Polyurea Coating Black
