Features

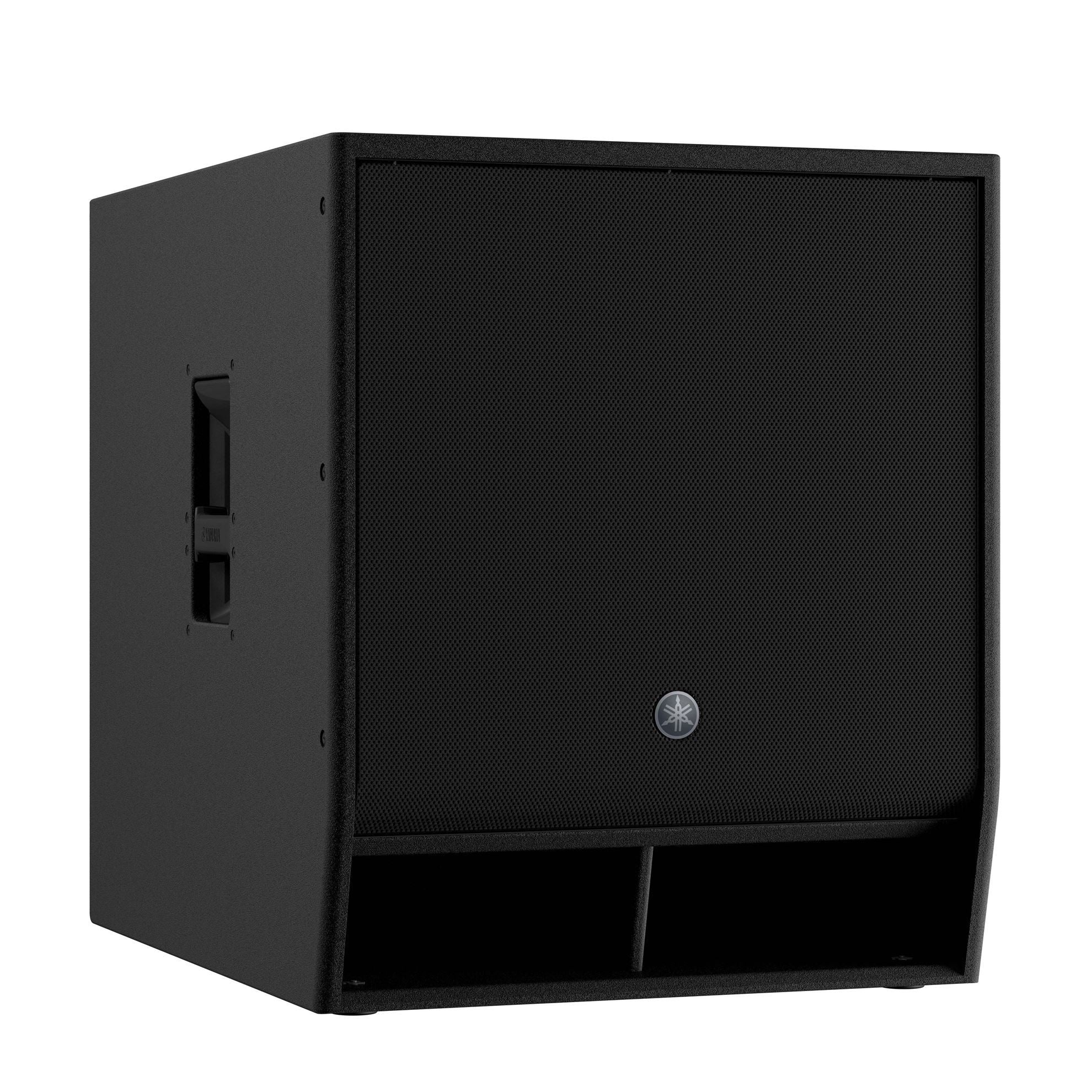

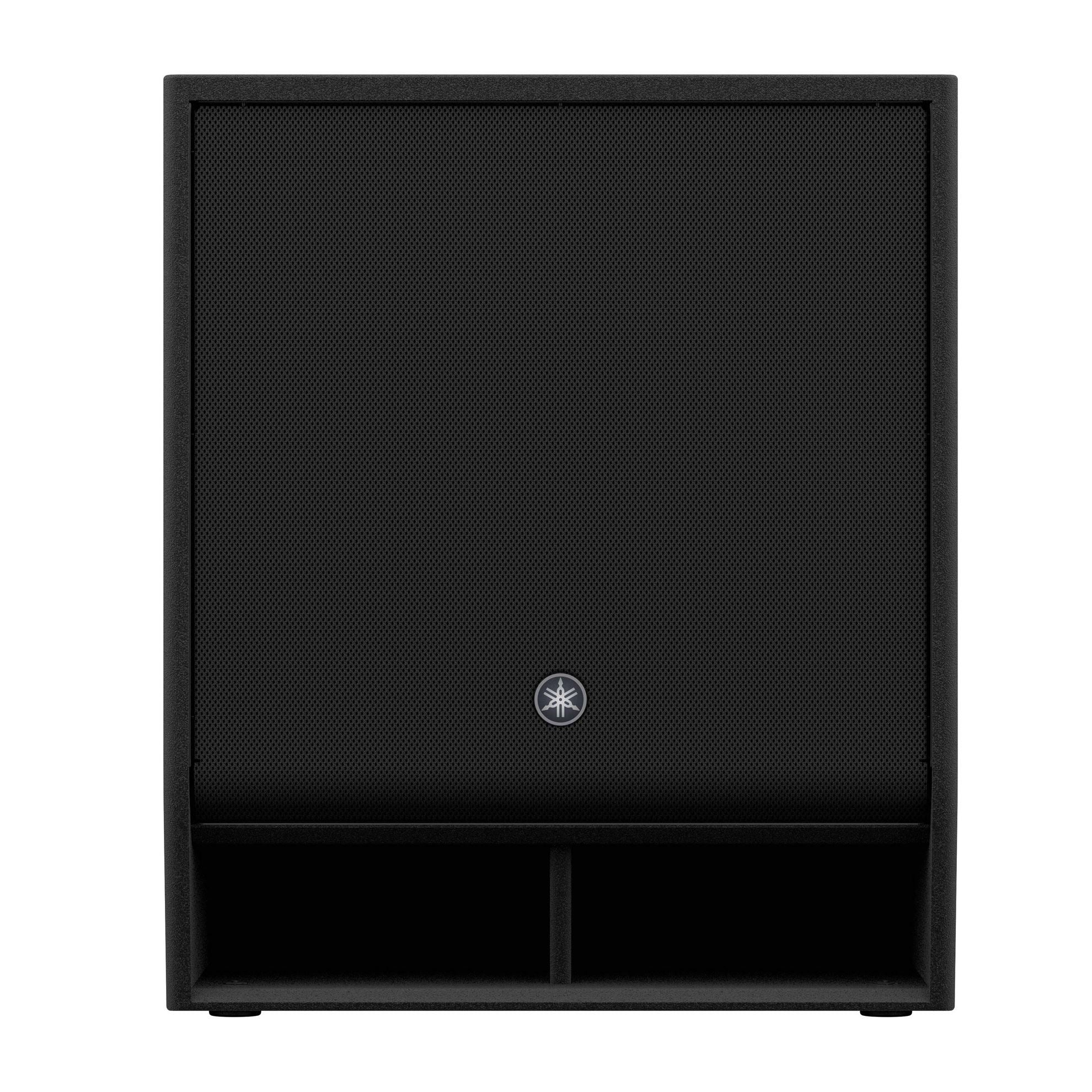

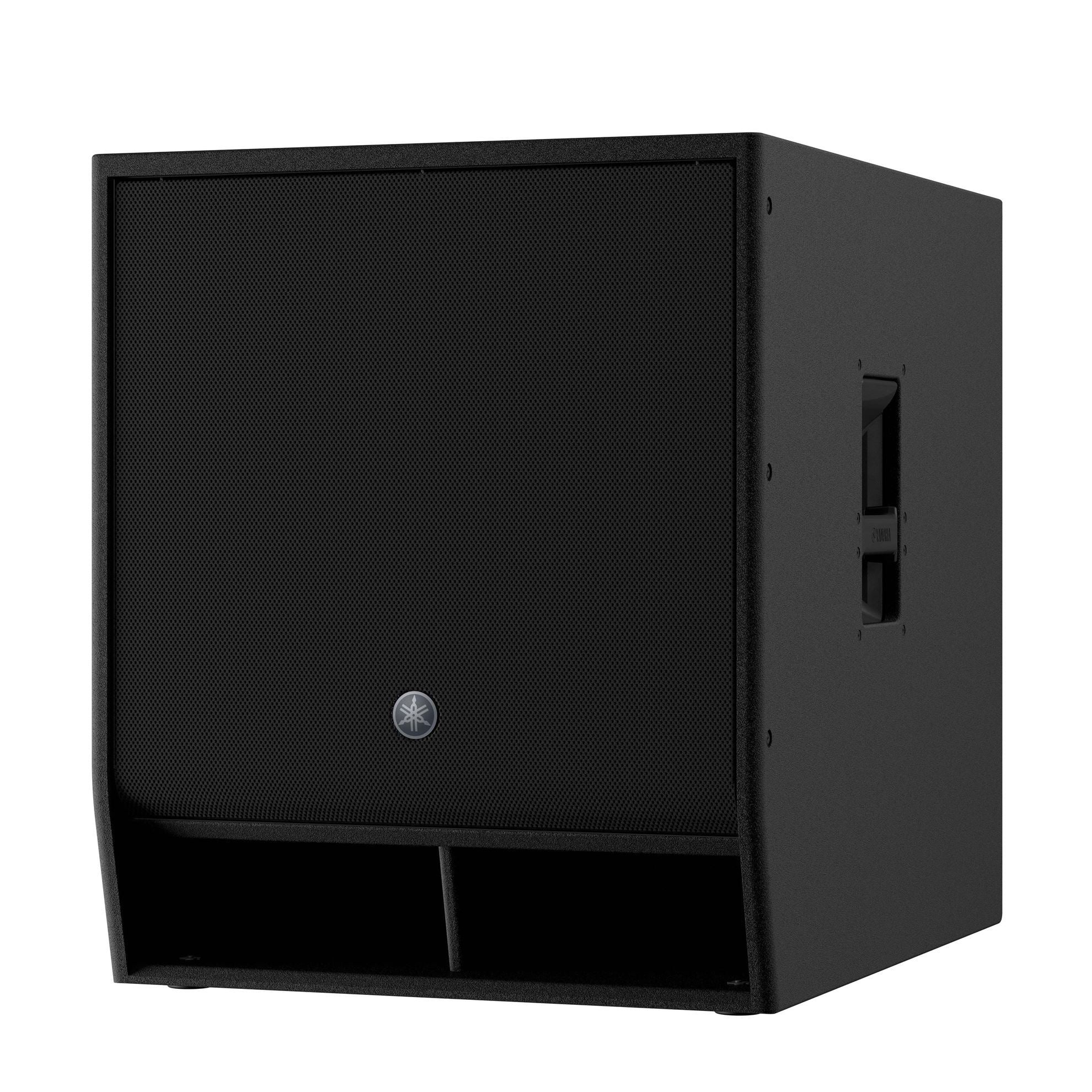

• Powered 18” subwoofer with 4” Voice Coil
• Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
• High power 1600W Class-D amplifier module
• 96kHz DSP for true high-resolution sound with super low latency
• Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• Equipped with D-XSUB processing and cardioid mode capability
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
• Durable Black finish

---

Specifications

• Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range (-10dB): 39Hz - 20kHz
• Coverage area: H90ﾟ x V60ﾟ (Rotatable)
• Components LF: 12" Cone, 3" Voice Coil, Neodymium magnet
• Components MF: -
• Components HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover: 1.8kHz (FIR-X)
• Sampling frequency rate Internal: 96kHz and FIR Filter
• A/D D/A Converters: 96kHz AD/DA
• Maximum output level (1m; on axis): 139dB SPL *1
• SRC: Yes
• Dynamic: 2000W (LF: 1000W, MF/HF: 1000W) *2
• Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
• Continuous: 950W (LF: 850W, MF/HF: 100W)
• Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
• Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
• Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
• AC: IEC AC inlet x1 (V-Lock)
• Amplifier class: Class-D
• Cooling: Fan cooling, Variable speeds
• Power consumption: 45W (Idle), 150W (1/8)
• Handle: Aluminium die-cast, Side x2
• Rigging: M10 x12
• Width: 410 mm (16.1")
• Height: 646 mm (25.4") (with rubber feet)
• Depth: 394 mm (15.5")
• Net weight: 21.4kg (47.2lbs)
• Options: U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
• Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
• Floor Monitor Angle: 50° Symmetrical
• Pole socket: Φ35 mm x2 (0° or -7°)

---
