Yamaha DZR Series:Power and Performance Integrated

Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the new DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.

The culmination of all Yamaha’s accrued sound reinforcement, acoustics, and signal processing technology expertise—particularly with the introduction of our Dante-enabled models—DZR represents Yamaha’s first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.

*NOTE: Yamaha have also created a DZR Series with Dante Networking capability.

Key Product Features

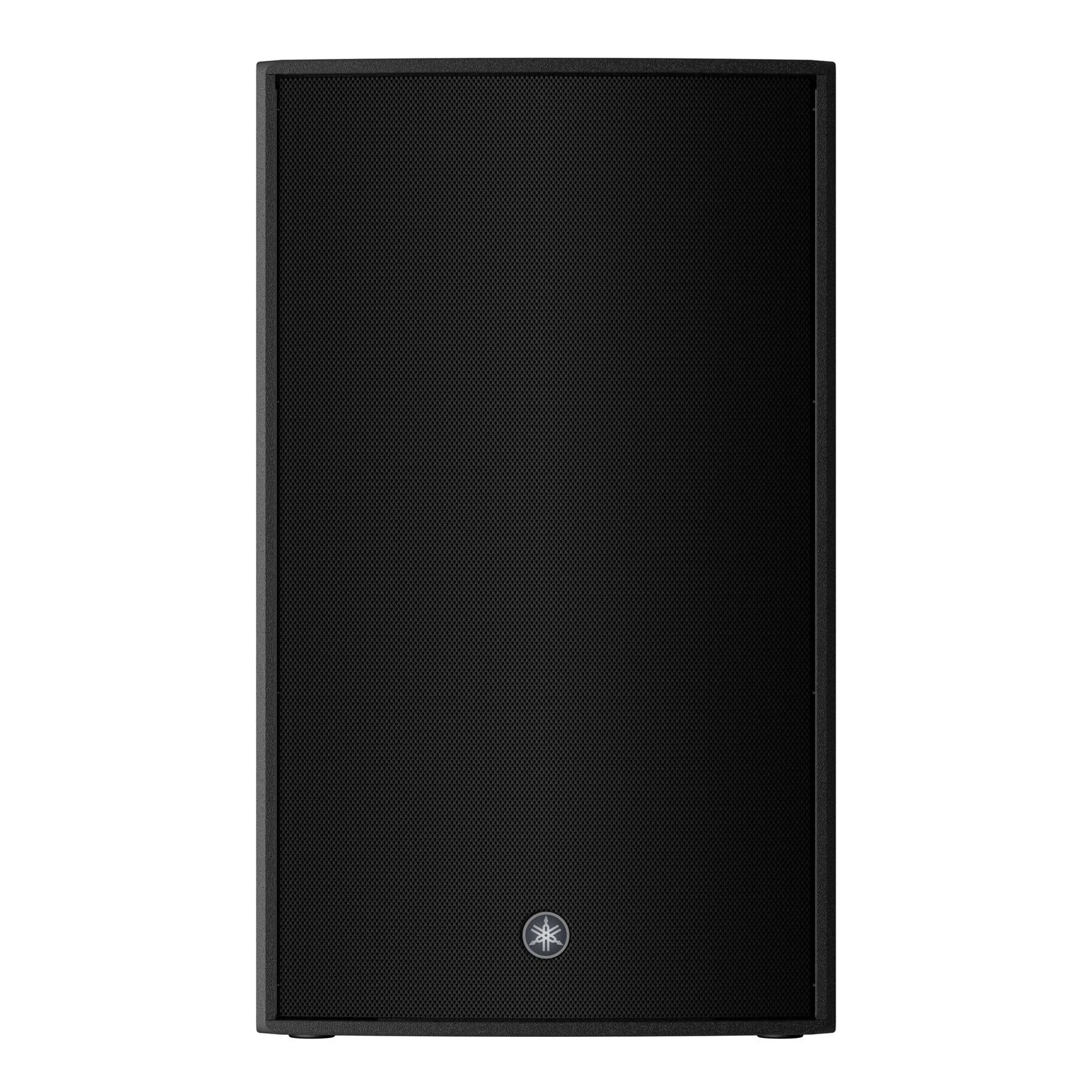

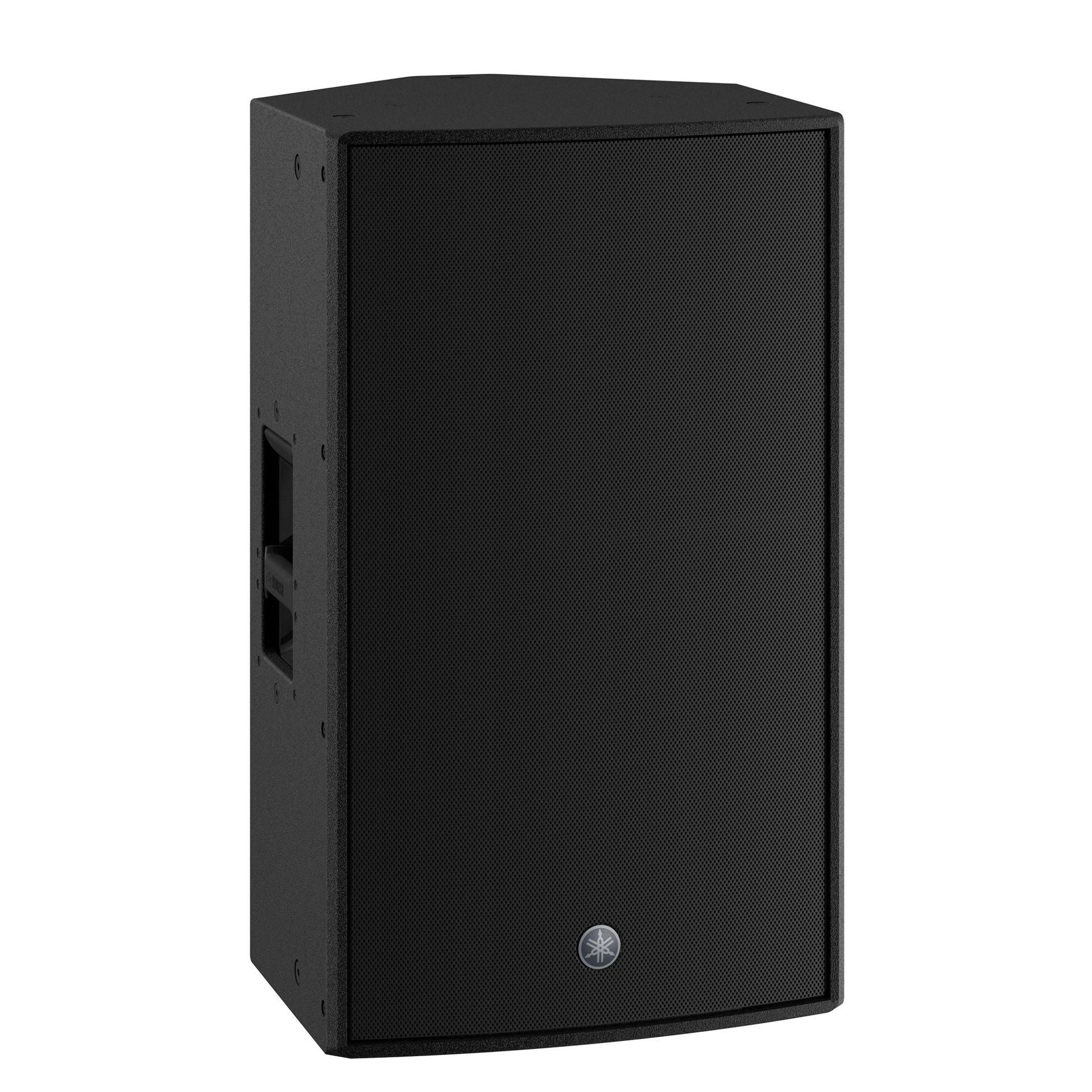

The DZR15 is a 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR15 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

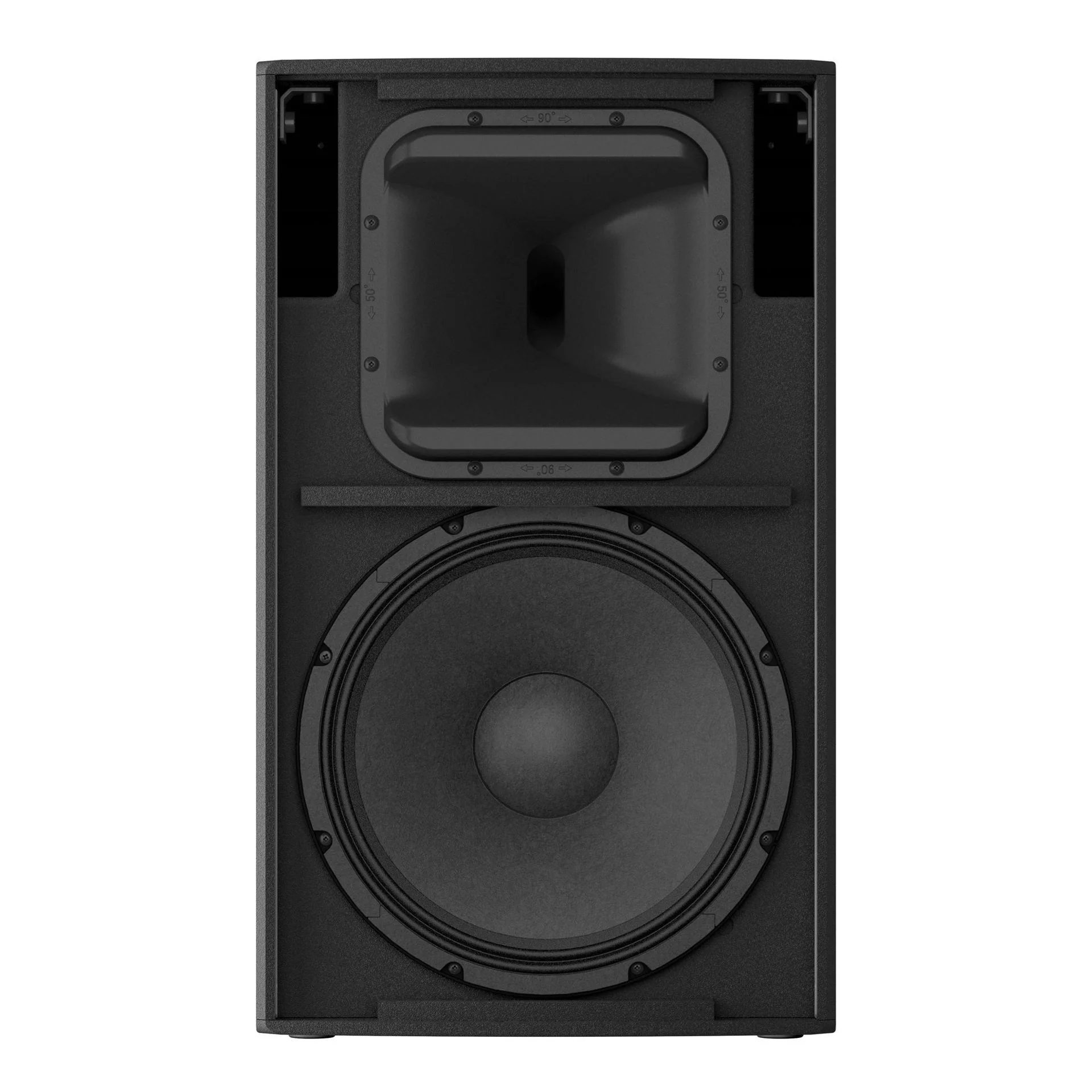

• 2-way powered loudspeaker with a 2” HF and a 15" LF
• Maximum 139dB SPL and 34Hz-20kHz frequency range is ideal for today's professional audio demands
• High power 2000W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• D-Contour and highly reliable protection circuits
• Floor monitoring setting enables mirroring configuration
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DZR15)
• Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement

Product Specifications

Model	DZR15
Speaker type	2-way/Bi-amped Powered Speaker/Bass-reflex
Frequency range (-10dB)	34Hz - 20kHz
Coverage area	H90ﾟ x V50ﾟ (Rotatable)
Low Frequency	15" Cone, 3" Voice Coil, Neodymium magnet
Mid Frequency	N/A
High Frequency	2" Voice Coil/1" Throat Compression Driver/Titanium diaphragm/Neodymium magnet
Crossover	1.7kHz (FIR-X)
Internal Sampling frequency rate	96kHz and FIR Filter
A/D D/A Converters	96kHz AD/DA
Maximum output level (1m; on axis)	139dB SPL *1
Dynamic Power	2000W (LF:1000W MF/HF: 1000W) *2
Continuous Power	1300W (LF: 920W MF/HF: 380W)
Analog I/O	Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Other I/O	USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC I/O	IEC AC inlet x1 (V-Lock)
Amplifier class	Class-D
Cooling	Fan cooling/Variable speeds
Power consumption	45W (Idle)/150W (1/8)
Handle	Aluminium die-cast/Top x1/Side x1
Rigging	M10 x12
Width	450 mm (17.7")
Height	761 mm (30.0") (with rubber feet)
Depth	460 mm (18.1")
Net weight	25.2kg (55.6lbs)
Options	U-bracket: UB-DZR15H/V, Cover: SPCVR-DZR15
Other Features	Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle	50° Symmetrical
Pole socket	Φ35 mm x2 (0° or -7°)
