Watch: Overview of the new Yamaha DZR Powered PA Speaker Range:

Yamaha DZR Series:Power and Performance Integrated

Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the new DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.

The culmination of all Yamaha’s accrued sound reinforcement, acoustics, and signal processing technology expertise—particularly with the introduction of our Dante-enabled models—DZR represents Yamaha’s first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.

*NOTE: Yamaha have also created a DZR Series with Dante Networking capability.

Key Product Features

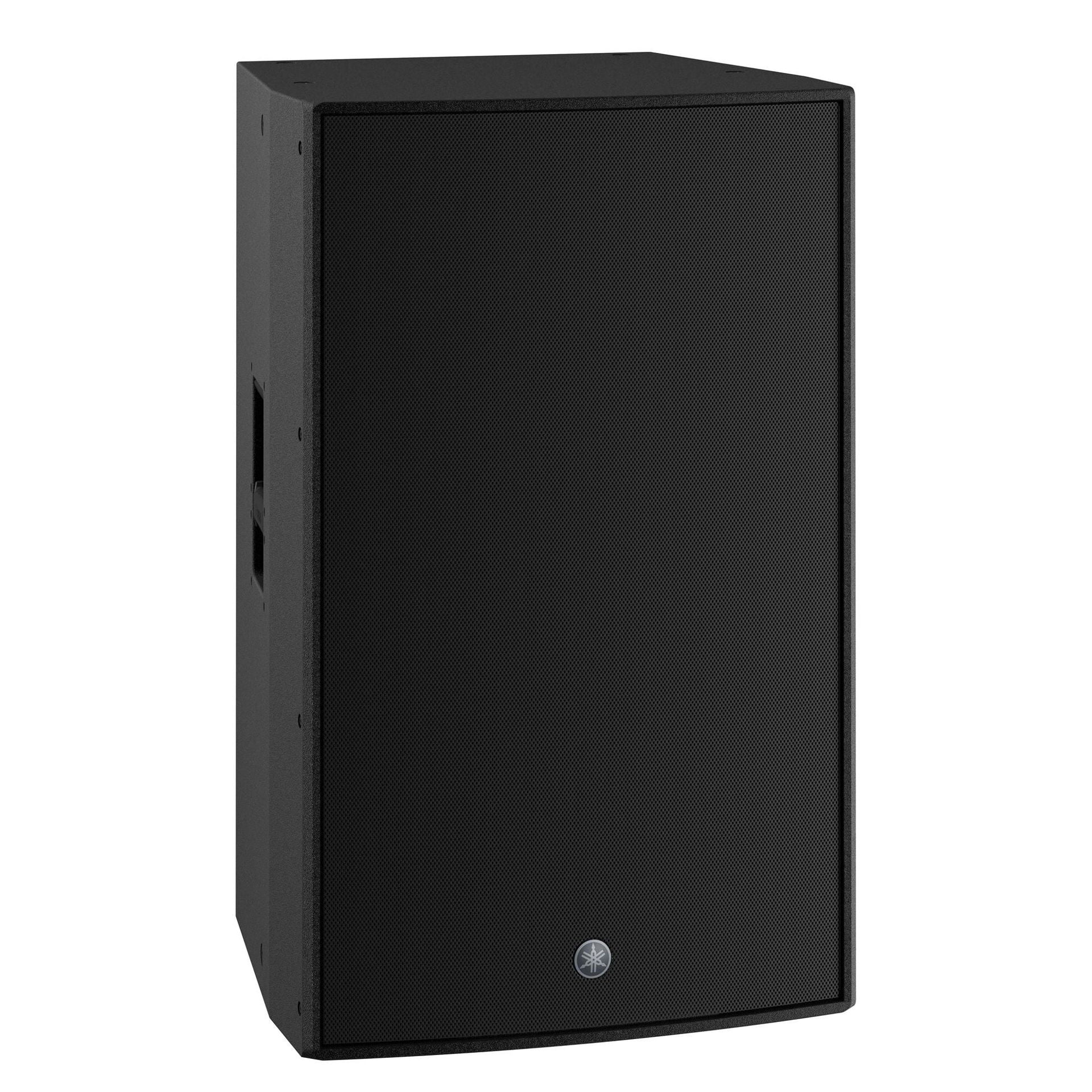

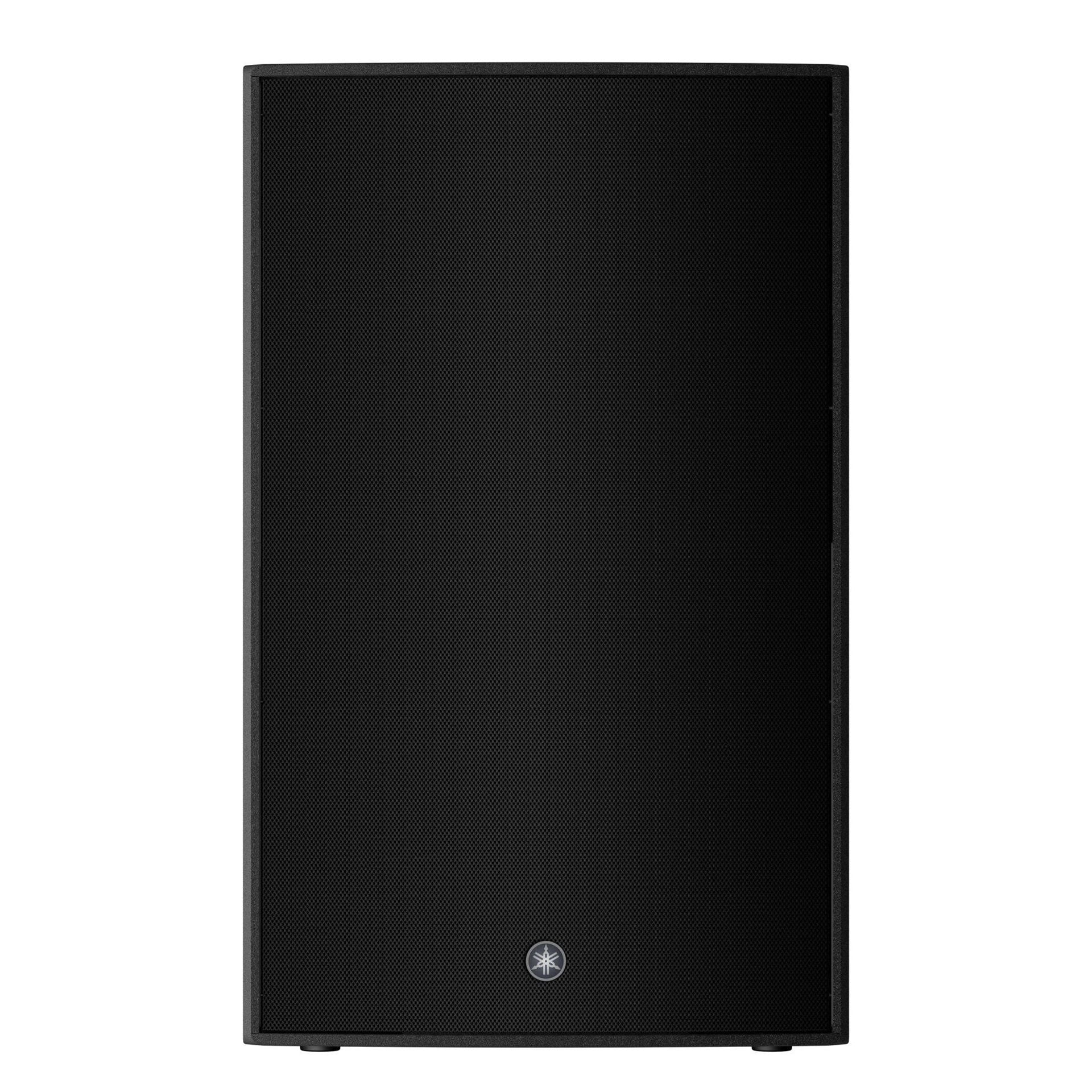

The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

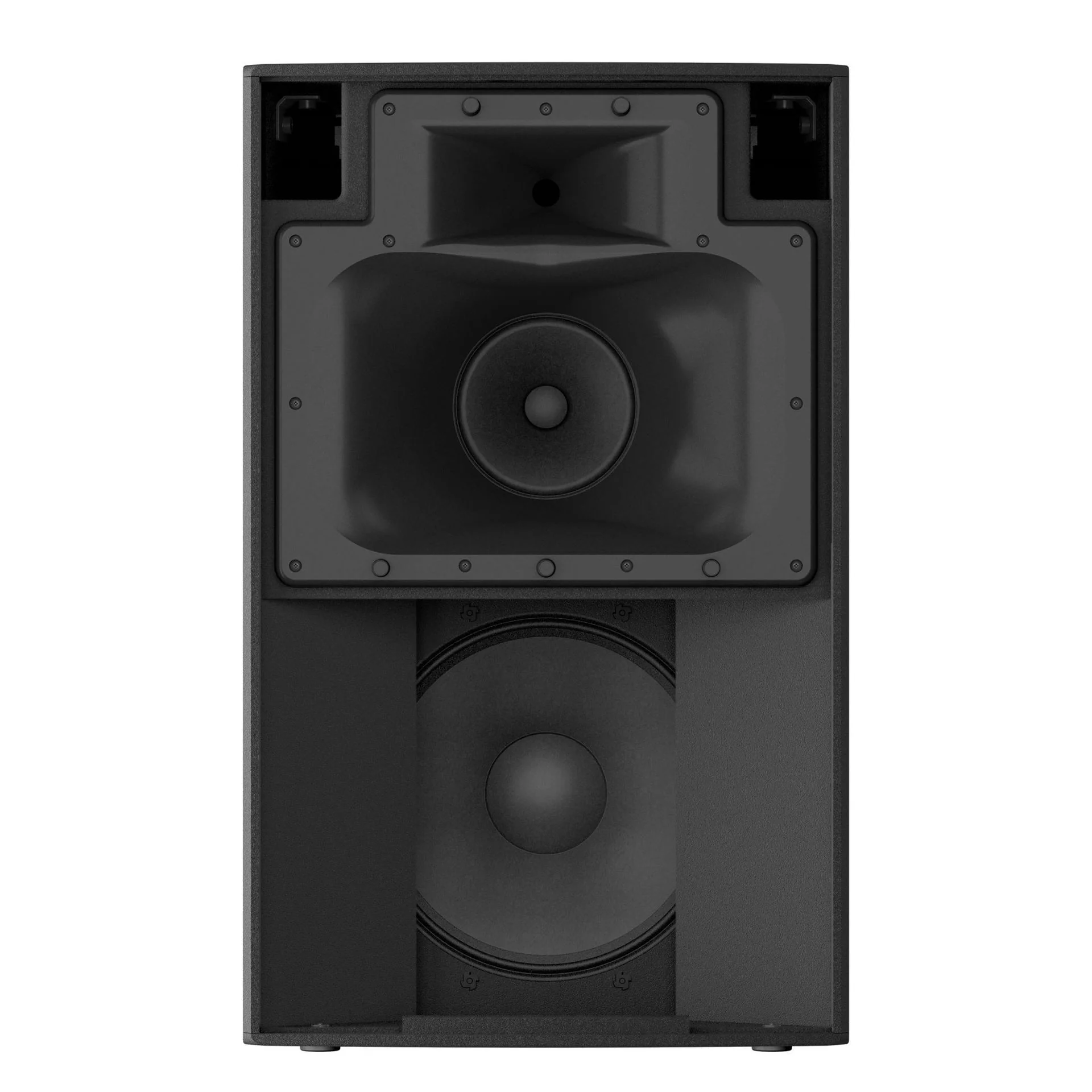

• 3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15" LF
• Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
• High power 2000W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• D-Contour and highly reliable protection circuits
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DZR315)

Product Specifications

Model	DZR315
Speaker type	3-way, Bi-ampled Powered Speaker, Bass-reflex
Frequency range (-10dB)	31Hz - 20kHz
Coverage area	H75ﾟ x V50ﾟ
Low Frequency	15" Cone, 3" Voice Coil, Neodymium magnet
Mid Frequency	8" Cone, 1.5" Voice Coil, Ferrite magnet
High Frequency	2" Voice Coil/1" Throat Compression Driver/Titanium diaphragm/Neodymium magnet
Crossover	700Hz (FIR-X), 2.5kHz (Passive)
Internal Sampling frequency rate	96kHz and FIR Filter
A/D D/A Converters	96kHz AD/DA
Maximum output level (1m; on axis)	143dB SPL *1
Dynamic Power	2000W (LF:1000W MF/HF: 1000W) *2
Continuous Power	1300W (LF: 920W MF/HF: 380W)
Analog I/O	Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Other I/O	USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC I/O	IEC AC inlet x1 (V-Lock)
Amplifier class	Class-D
Cooling	Fan cooling/Variable speeds
Power consumption	45W (Idle)/150W (1/8)
Handle	Aluminium die-cast/Top x1/Side x1
Rigging	M10 x16
Width	550 mm (21.6")
Height	897 mm (35.3") (with rubber feet)
Depth	520 mm (20.5")
Net weight	41.6kg (91.7lbs)
Options	Cover: SPCVR-DZR315
Other Features	Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle	-
Pole socket	-
