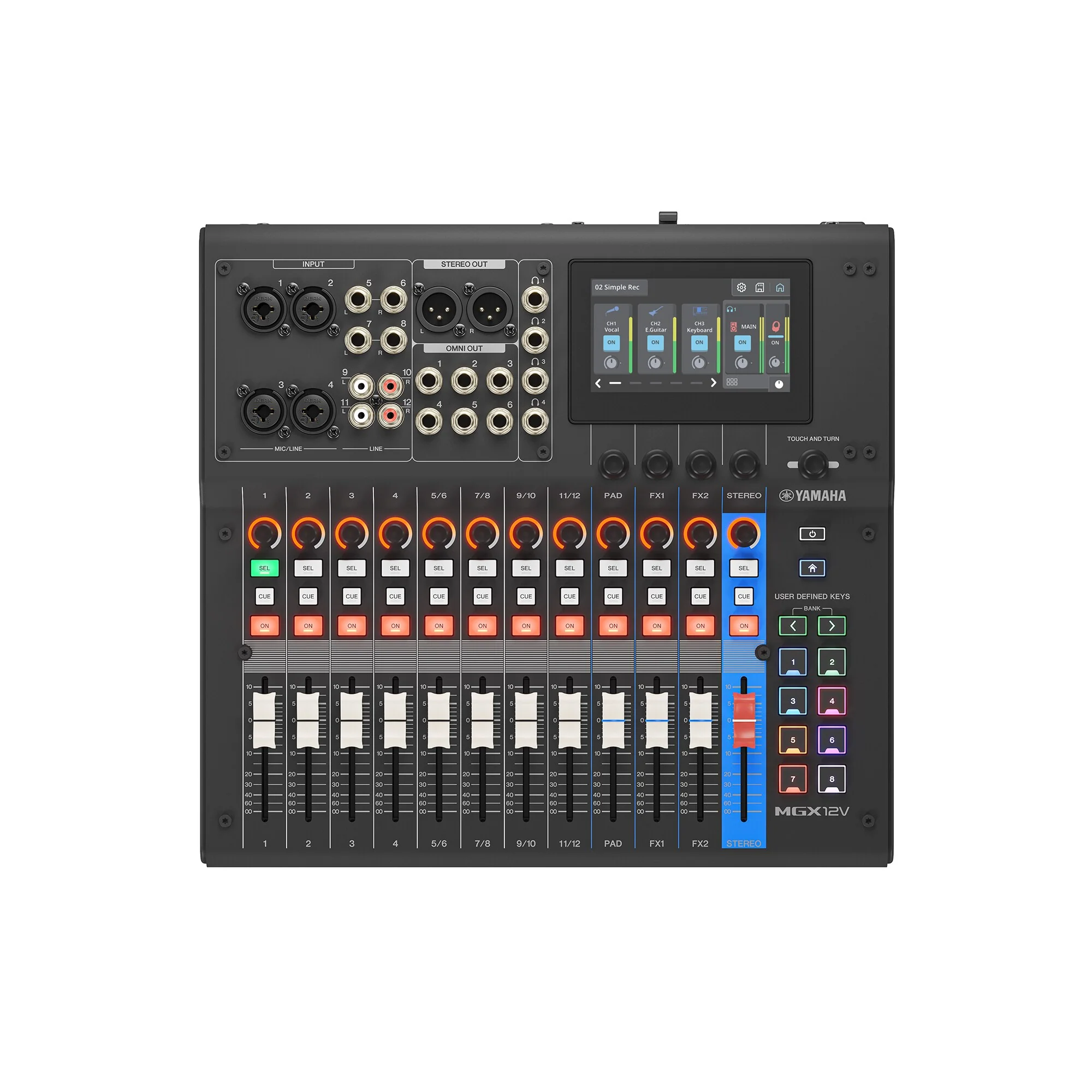

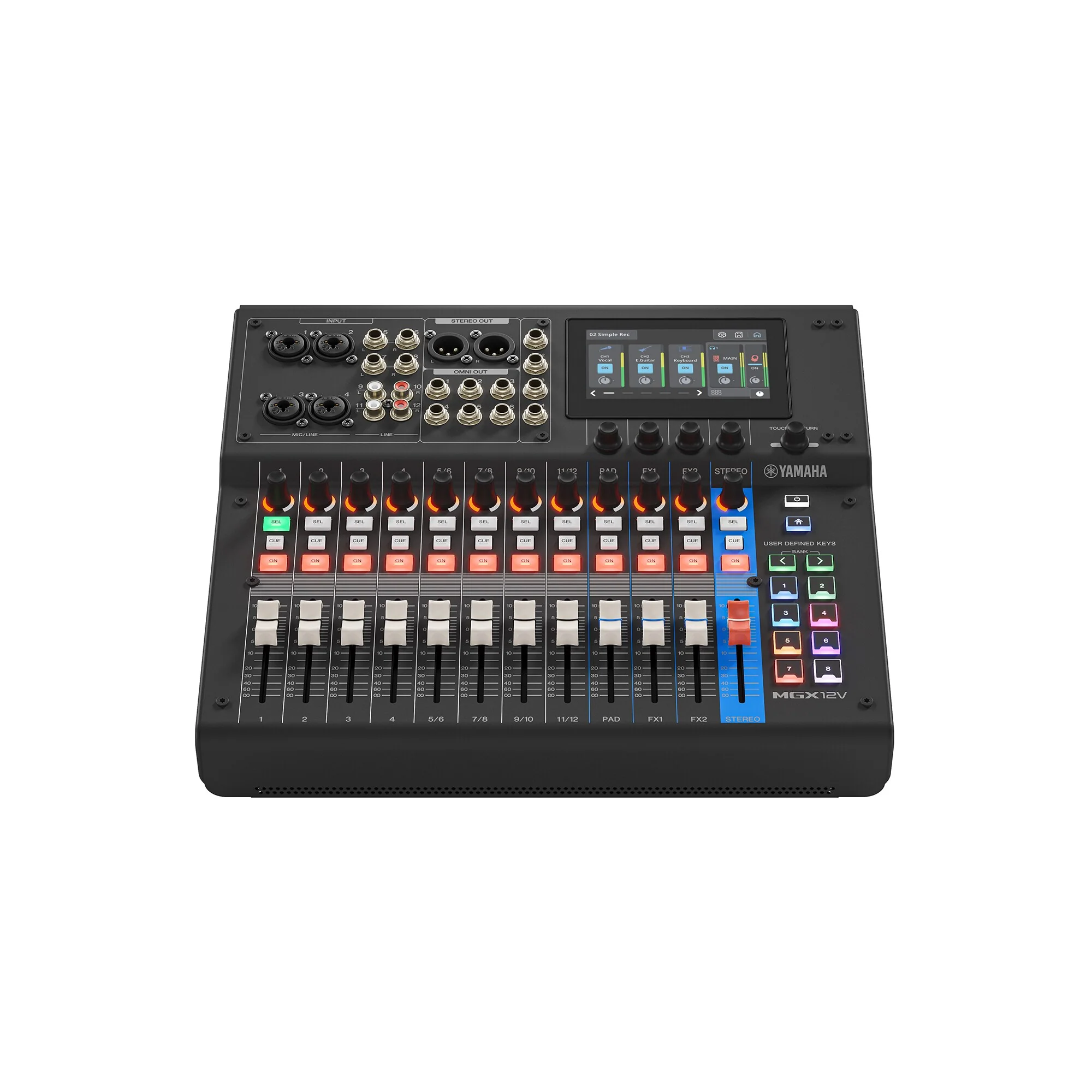

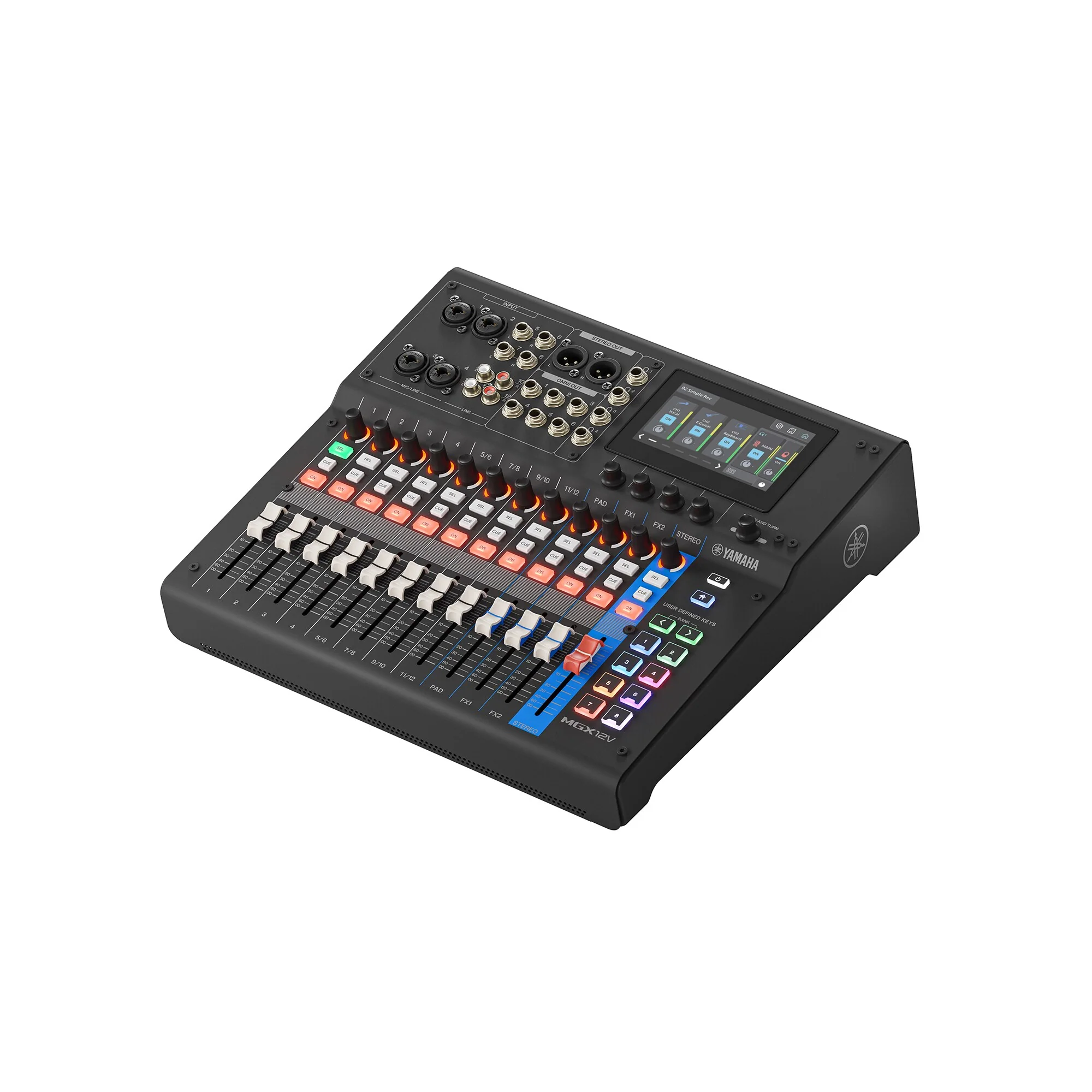

The Yamaha MGX12V digital mixing console delivers a powerful fusion of pristine audio performance and seamless video integration in a compact, production-ready format. Designed for today’s fast-paced creative environments, it provides exceptional sound quality with an intuitive workflow that keeps focus on the performance, not the setup.

Ideal for live sound, streaming, recording, and multimedia production, the MGX12V elevates production value with professional polish and reliability. Whether in the studio or on stage, it empowers creators and engineers to produce clear, engaging content that connects with every audience.

• 11 + 1 fader configuration (non-motorized fader)

• A 4.3-inch touchscreen with five control knobs

• Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return

• Busses: 1 STEREO + 8 MIX

• Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)

• Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones

• USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)

• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)

• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)

• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)

• HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough

• Built-in DSP processor for professional sound and latency-free monitoring

• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall

• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
