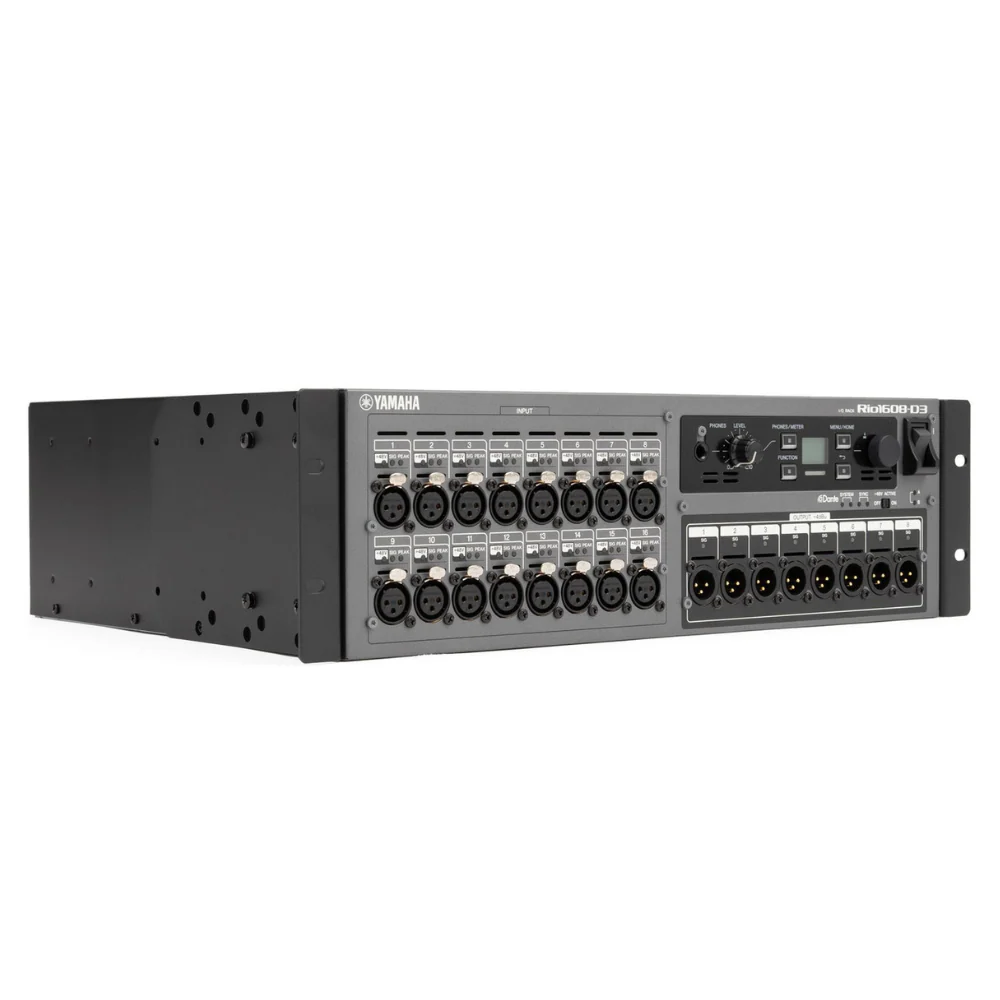

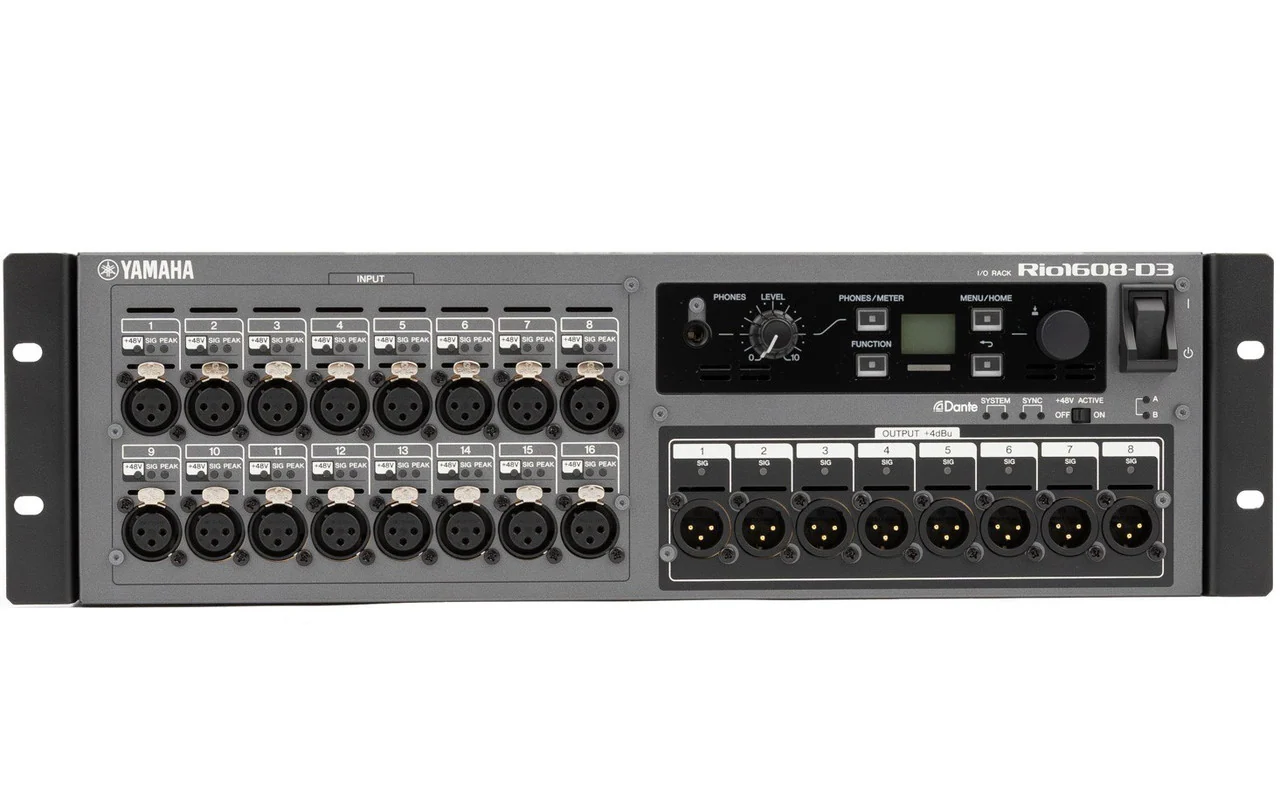

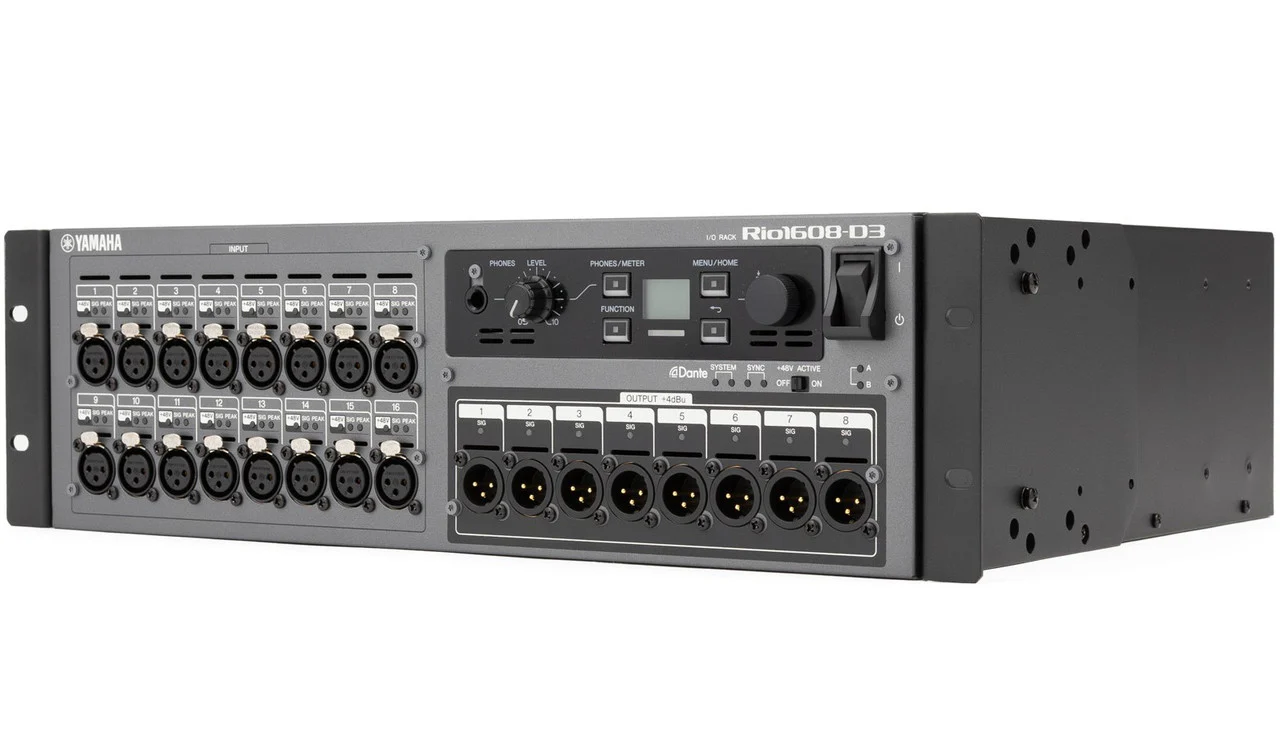

The Yamaha Rio1608-D3 is the third-generation evolution of Yamaha’s high-performance I/O rack systems, now enhanced with built-in Dante audio networking for maximum flexibility and scalability. Engineered to deliver exceptional sonic transparency that reflects Yamaha’s renowned “natural sound” philosophy, the Rio1608-D3 plays a crucial role in unlocking the full potential of compatible digital mixing consoles.

Its 16 inputs and 8 outputs, housed in a rugged, compact form factor, offer versatile connectivity for a wide range of professional applications. Designed for seamless integration, it provides extensive freedom in system placement, supports multi-unit configurations, and features redundant networking capabilities to ensure rock-solid reliability—even in demanding live or broadcast environments.

A core component of the RIVAGE PM7 Digital Mixing System, the Rio1608-D3 is also fully compatible with Yamaha’s DM7 Series consoles, making it a powerful and future-ready solution. Whether used on stage or in the studio, it maximizes the capabilities of Dante networking while delivering pristine, natural audio every time.

Features

• Improved dynamic range and lower noise floor
• Delay/Polarity/Gain function on the output port
• I/O setting available on the LCD
• Headphone port for listening to the sound on the I/O box
• Additional network port dedicated to the control (ProVisionaire and other control)

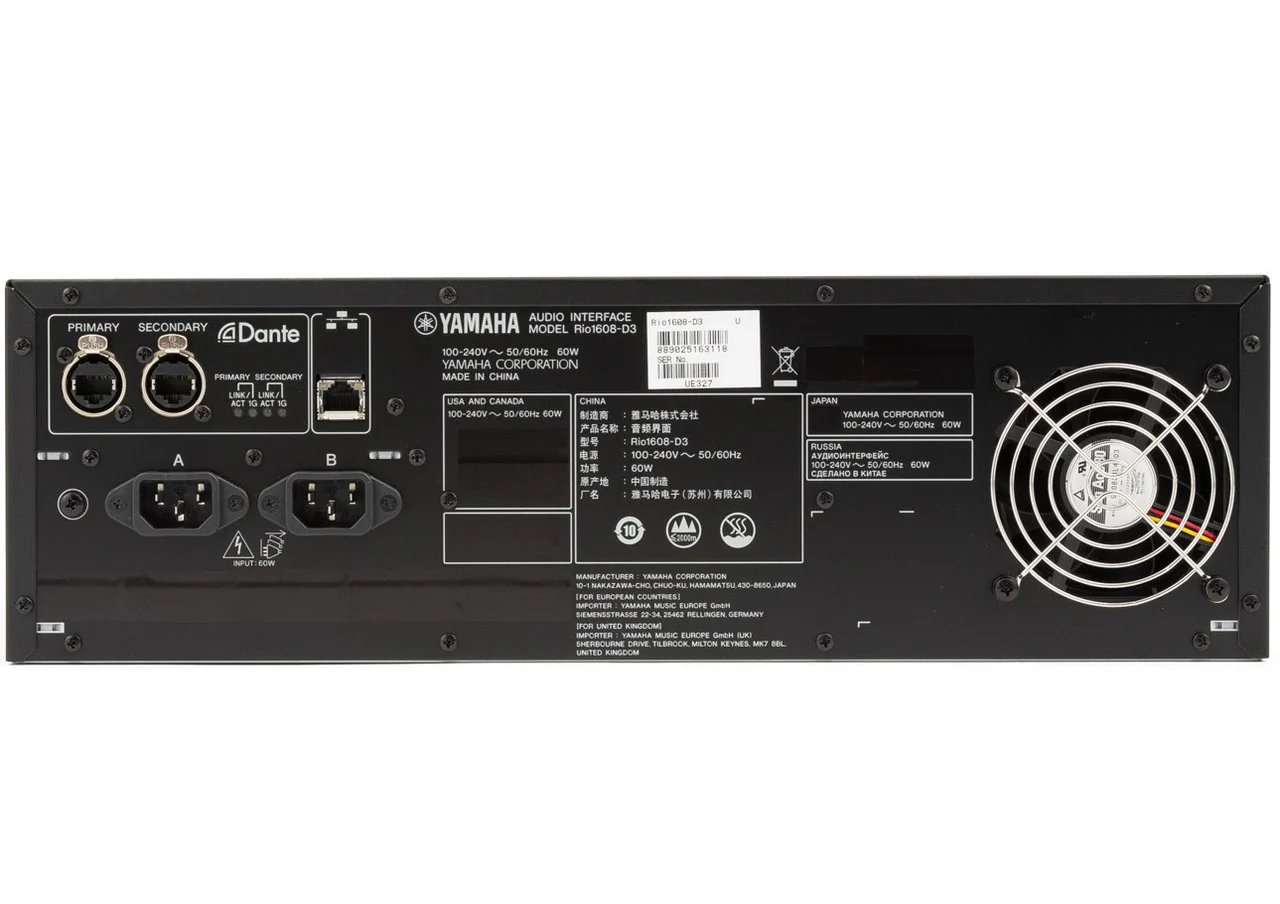

• Redundant power supplies
• 32bit AD/DA

Specifications

• Number of Analog Inputs: 16
• Number of Analog Outputs: 8
• AES/EBU: 0
• Phones: 1
• Sampling Frequency: 44.1 kHz/48kHz/88.2kHz/96kHz ±200 ppm +4.1667%
• Range of Sampling Frequency for External Clock: +0.1%, -0.1%, -4.0% ±200 ppm
• Signal Delay: Less than 1.7 ms
• Power Requirements: 60W
• Heat Radiation: 52 kcal/h
• Dimensions (WxHxD): 18.9" x 5.2" x 14.57" (480mm x 132mm x 370mm)
• Weight: 21.16lbs (9.6kg)
• NC Value:
  - Fan Speed LOW: 15
  - Fan Speed HIGH: 25
• Operating Temperature Range: Min: 32°F, Max: 104°F (Min: 0°C, Max: 40°C)
• Storage Temperature Range: Min: -4°F, Max: 140°F (Min: -20°C, Max: 60°C)
