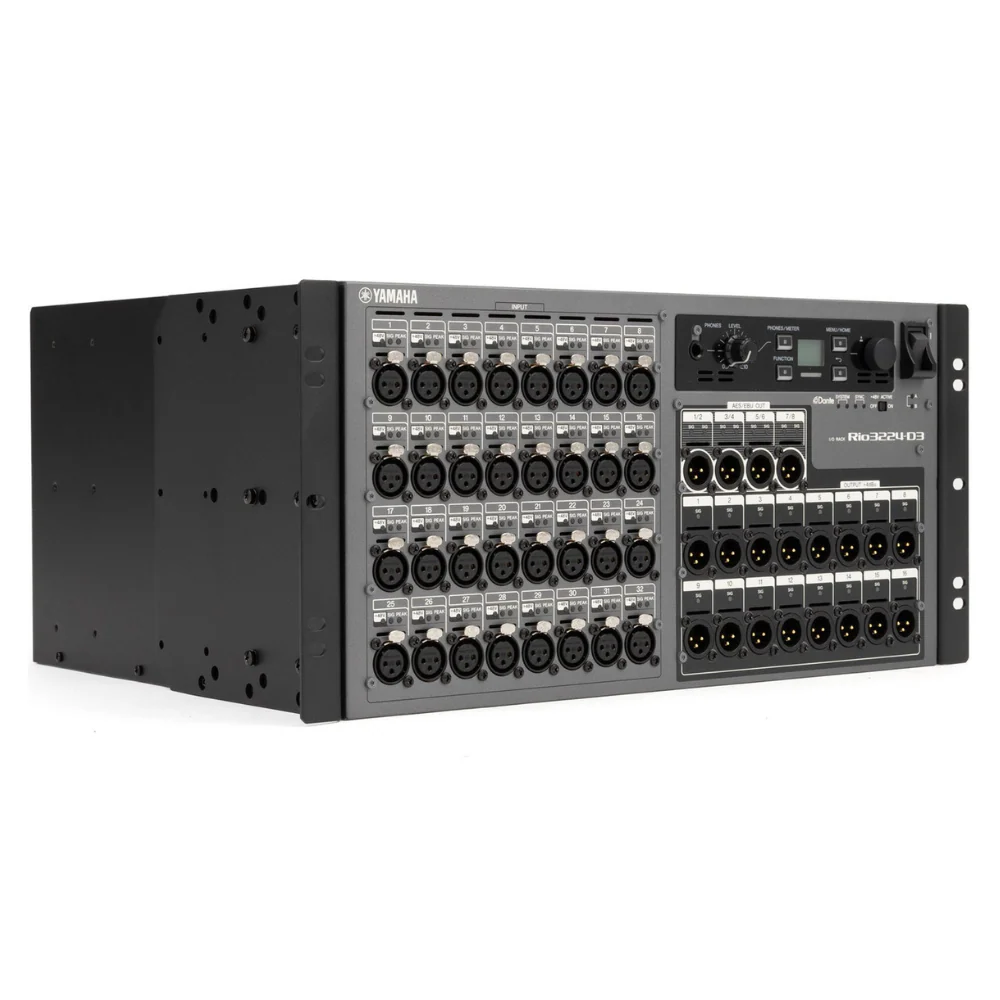

Yamaha Rio3224-D3 32-input/24-output Dante Stage Box
The Yamaha Rio3224-D3 is a premium 32-in/24-out digital I/O rack unit designed for seamless integration with Yamaha’s CL, QL, and RIVAGE PM series mixing consoles. Engineered for uncompromising sound quality, it features 32 high-performance head amps with switchable 48V phantom power, delivering Yamaha’s signature transparent and natural audio.
Built for modern live and studio environments, the Rio3224-D3 connects effortlessly to Dante audio networks, supporting sampling rates up to 96kHz for crystal-clear audio and flexible system configurations. Four stereo AES digital outputs provide additional routing options, while dual redundant power supplies ensure reliable operation in mission-critical situations.
With daisy-chain connectivity, onboard control of gain and parameters, and a clear character display for quick visual feedback, the Rio3224-D3 is a robust, professional-grade solution for any high-demand audio setup.
Features
- Dante stage box
- 32 x 24 analog I/O
- 4 stereo AES outputs
- 16 head amplifiers (with switchable 48V phantom power)
- 32-bit AD/DA
- Connects directly to a Dante digital audio network
- Optimized dynamic range and noise
- Delay/Polarity/Gain function on output port
- I/O setting on LCD screen
- Headphone jack for monitoring
- Additional control-dedicated network port
- Sampling frequency for external clock: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Signal delay: <1.7ms
- Benefit from local control of gain and other parameters
- Character display offers easy visual confirmation of your settings
- Supports daisy-chain connections
- Redundant power supplies
Specifications
- Analogue I/O: 32 inputs / 16 outputs
- AES/EBU: Eight outputs
- Dante network: 26 receive and 32 transmit channels
- Frequency range: 20 Hz - 20,000 Hz
- Dynamic range: 120 dB
- Equivalent input noise: -128 dBu
- Output noise: -88 dBu
- Crosstalk: -100 dB INPUT/OUTPUT channels
- Input gain: -6 dB @ 1kHz
- Comprehensive display and local control of gain
- Delay and other parameters
- Headphone output for monitoring the input and output sound or the last two Dante receive channels
- Redundant PSU
- 5 U
- Dimensions (W x H x D): 480 x 220 x 370 mm
