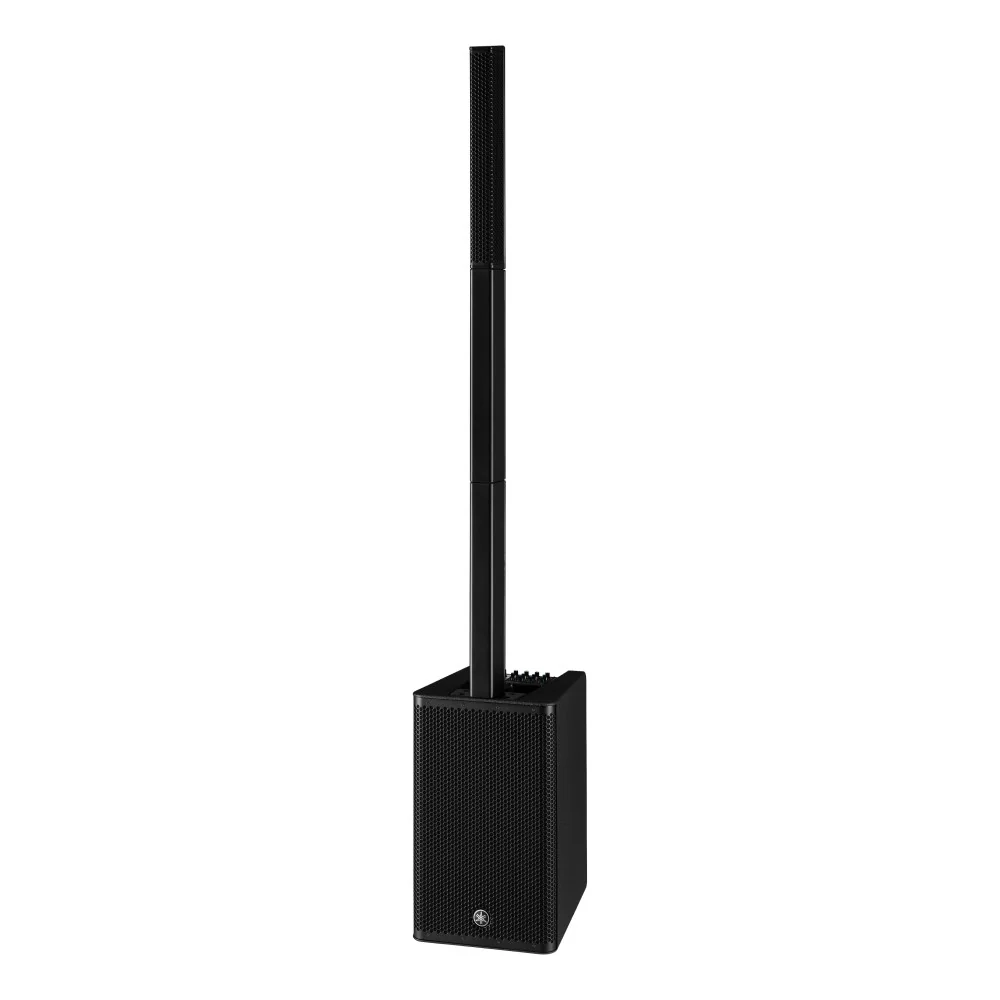

Transform any location into a stage quickly and effortlessly with the Yamaha STAGEPAS 1K mkII, the all-in-one portable PA system that delivers professional-quality audio performance with a convenient and streamlined setup, so you can focus on the music and the performance at hand. With an even higher SPL and more flexible remote functionality than it's predecessor, the STAGEPAS 1K mkII boasts the same lightweight cabinet design, professional mixing capabilities, and user-friendly operation that put the STAGEPAS ahead of any other portable PA system available. With an integrated concert-quality mixer and speaker, STAGEPAS 1K mkII has set the new standard for portable PA with Yamaha's professional expertise, developed over decades of producing cutting-edge professional audio equipment for every aspect of music creation and production.

Features

• 1100W power output
• Biggest in the class 12-inch subwoofer for low frequency
• 1.5-inch x10 slim line array speaker for high frequency
• Digital mixer (3 mono mic/line + 1 stereo line)
• Multi band comp “MODE” for master output
• 1-knob EQ per channel
• High resolution SPX digital reverb (4 types, parameter control)
• Priority Ducker for stereo channel
• 4 band PEQ per channel via remote control APP “STAEGPAS Controller”
• 2x Hi-Z (high impedance) inputs
• Link out and monitor out

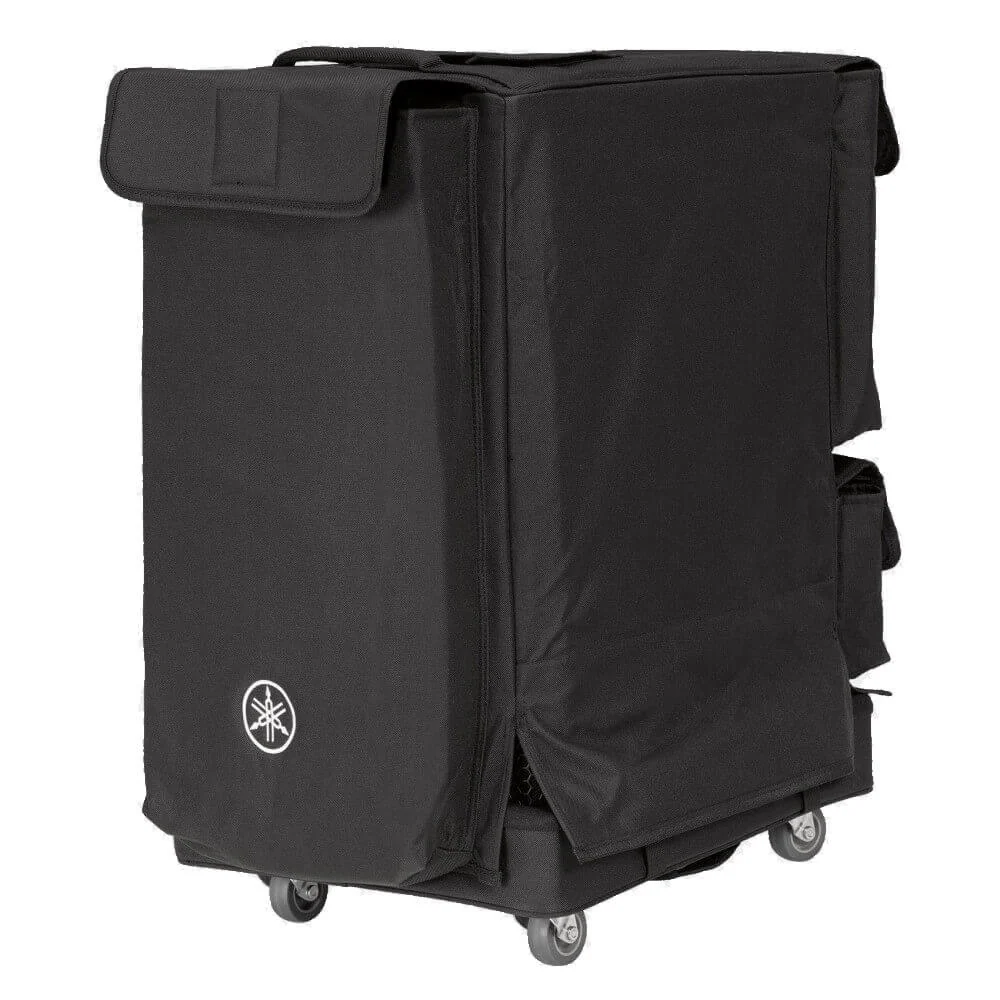

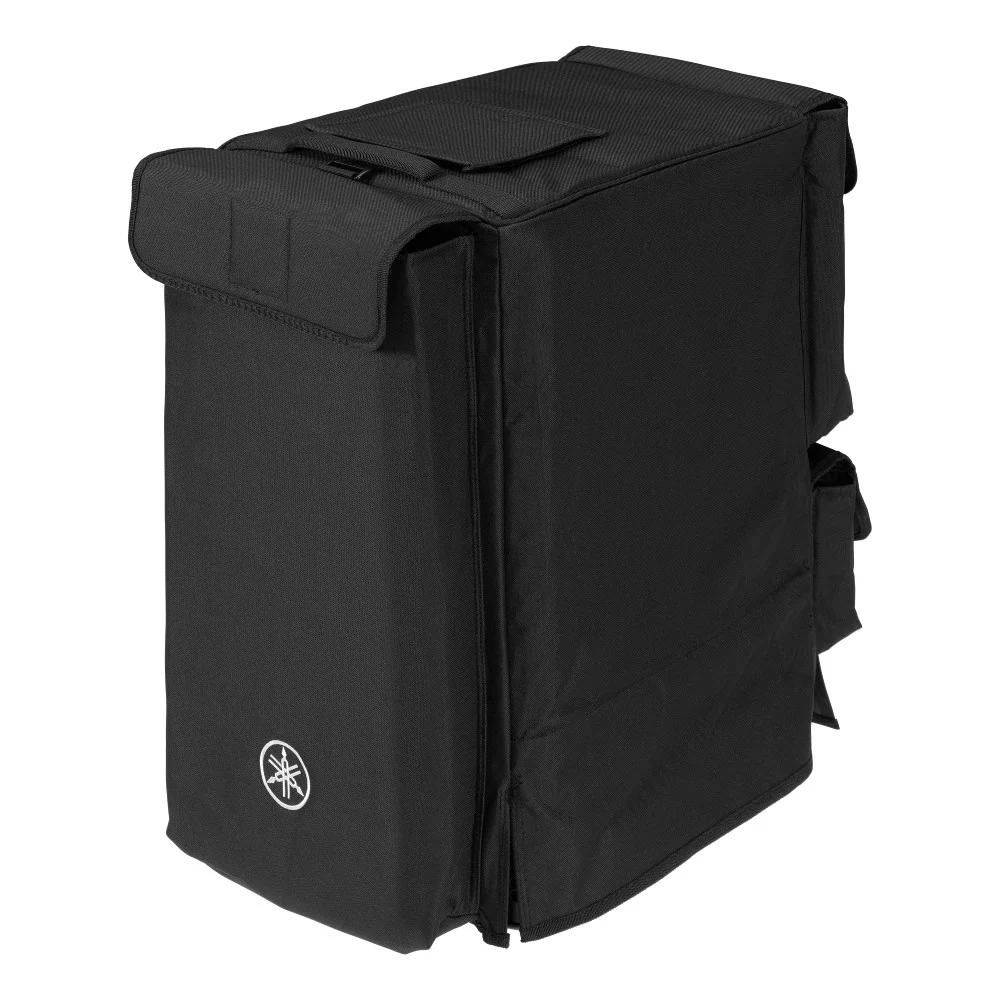

• Dedicated cover included

Simple Setup and Simple Control Allows you to Focus on your Performance

STAGEPAS 1K mkII includes a plethora of features to manipulate your sound, like a 1-knob EQ to perform multiple EQ adjustments simultaneously, and MODE, which enables the adjustment of optimized compression settings such as "Speech" and "Music" to suit a range of applications. Getting the perfect mix is quick and simple, and with one-knob adjustments, there's no need to learn complex workflows, so you can focus on the performance without worrying about tweaking endless parameters to find the best sound.

Best In-Class Compact Power

Driven by an 1100W amplifier, the array of 10 small 1.5" speakers and best-in-class 12" subwoofer delivers an impressive 170° horizontal and 30° vertical coverage area, consistently projecting over long distances for high-quality, uniform sound from the front to the back of the venue.

High-Efficiency 1000W Class-D Amplifier

Boasting class-leading output power, STAGEPAS 1K mkII's 1000W Class-D amplifier module is capable of delivering an astonishing 119dB SPL from the impressively compact speaker cabinet. Thanks to Yamaha's decades of experience in engineering and manufacturing professional PA equipment, not only does STAGEPAS 1K mkII deliver a huge amount of power, it maintains the same precise, high-quality audio, even at higher levels of output.

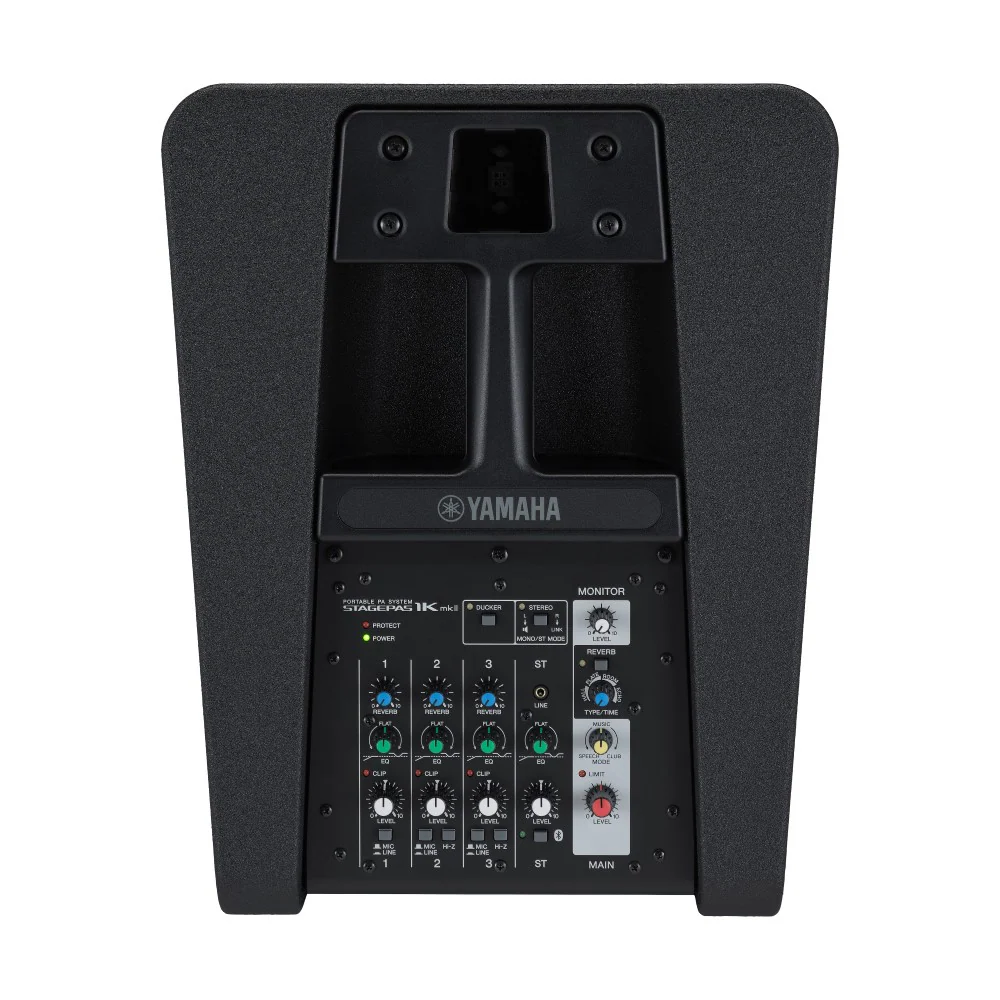

Digital Mixer with Versatile Input

The STAGEPAS 1K mkII's 5-channel mixer includes three channels of mono mic/line inputs and stereo inputs, with two mono input channels featuring Hi-Z compatibility for direct connection of guitars and other instruments. Additional to the Phone and 3.5mm mini jacks, the stereo connections allow for Bluetooth playback, as well as a vast range of input sources like CDs, PCs and smart devices.

Simple Setup

With STAGEPAS 1K mkII, simply place the two spacers and speaker unit into the subwoofer, and you're ready to go - no cables, speaker stands, or additional equipment is required beyond the main unit. All you need is inside the box!

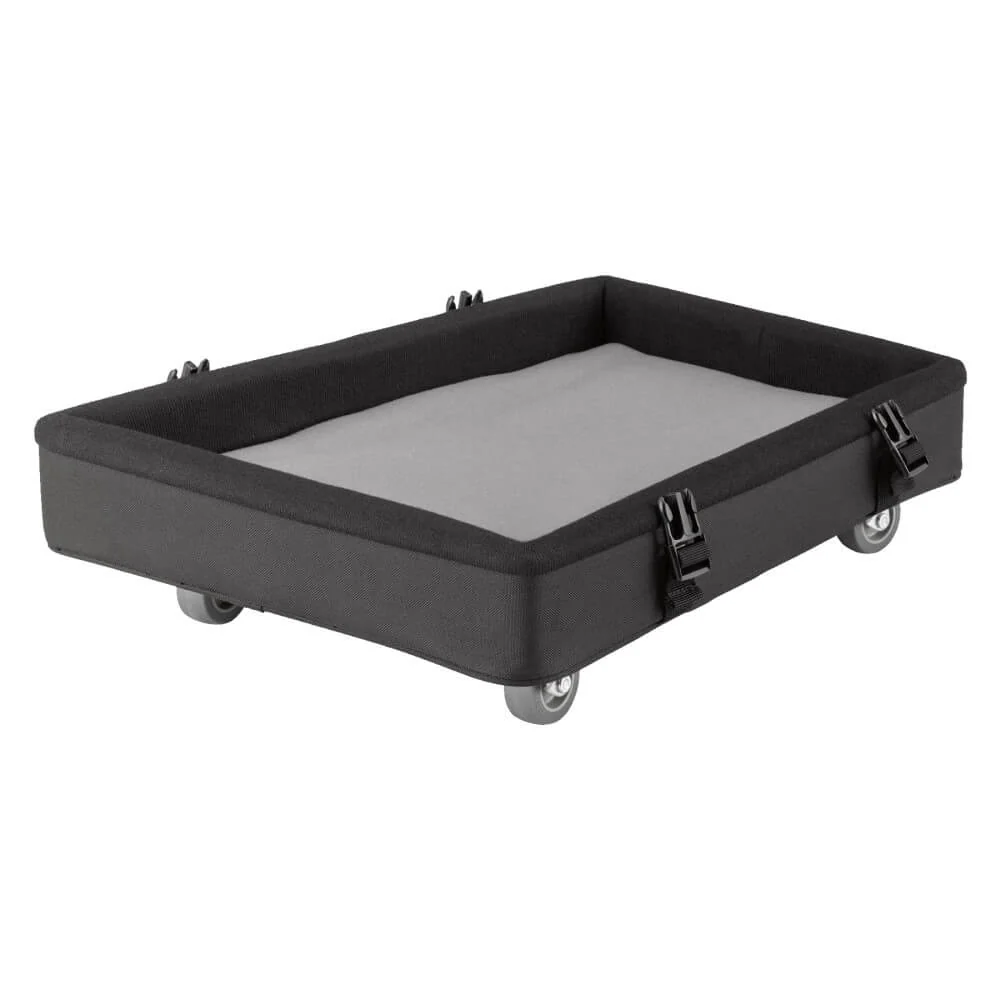

Included DL-SP1K Dolly

This STAGEPAS 1K mkII includes a dedicated dolly, which allows for convenient and effortless transportation - incredibly handy for performers transporting additional equipment and instruments. With a simple, rugged lock mechanism that locks the speaker cover in place, this dolly allows for smooth, reliable transportation between gigs and rehersals.

High-Grade Polyurea Coating

Constructed from lightweight ABS, the STAGEPAS 1K mkII features a robust polyurea coating to protect your system from damage during transport and storage. Lightweight enough to ensure the system remains completely portable, while remaining durable and scratch-resistant to withstand the rigors of touring and harsh performing environments.

Specifications

• Type: Powered Subwoofer with Line Array Speaker
• Mixing Channels: 5 (3x Mono, 1x Stereo)
• Input Channel Functions
  • Hi-Z: CH 2/3
  • 1-Knob EQ: CH1-3/ST
• Output Channel Functions: MODE (SPEECH/MUSIC/CLUB)
• Inputs: 3x Mono Mic/Line, 1x Stereo Line/2x Mono Line, 1x Link In
• Outputs: 1x Link Out, 1x Monitor Out
• Bluetooth: Bluetooth 5.0 A2DP (SBC, AAC)
• Control and Others
  • Reverb Footswitch
  • STAGEPAS Controller (iOS/Android App)
• DSP: SPX Digital Reverb (4 Program, Parameter Control)
• General
  • Subwoofer: Powered Subwoofer, Bass Reflex Type
  • Line Array Speaker: Enclosed
  • Frequency Range: 37Hz - 20kHz
  • Nominal Horizontal Coverage: 170°
  • Nominal Vertical Coverage: 30°
  • LF Driver: 1x 12" Cone
  • HF Driver: 10x 1.5" Cone
  • Amplifier Class: Class-D
  • Power Rating: 1100W
  • Max. Output Level: 125dB SPL
  • Crossover: 240Hz
• Power
  • Power Requirements: 220V - 240V, 50/60Hz
  • Power Consumption: 25W (Idle), 91W (⅛ Power)
• Accessories
  • 1x Power Cable
  • 1x Cover
• Dimensions
  • System: 334mm (W) x 2,000mm (H) x 418mm (D)
  • Line Array Speaker: 67mm (W) x 582mm (H) x 86mm (D)
  • Powered Subwoofer: 334mm (W) x 550mm (H) x 418mm (D)
• Weight
  • System: 23kg
  • Line Array Speaker: 1.8kg
  • Powered Subwoofer: 20kg
