NOISE ISOLATION POLAR PATTERN Noise isolation is the measure of sound attenuation levels achieved with A10 earphones that have been properly fitted in the ear canals with the supplied silicone ear tips. The noise isolation polar pattern illustrates how attenuation of the A10X earphones varies as a function of both frequency and direction of the sound source. In general, lower frequencies are less attenuated than higher frequencies and sound sources coming the side of the head are less attenuated than from the front or back. Audix earphones do not carry a Noise Reduction Rating and are not meant to be used as a hearing protection device.

Features

• 10 mm dynamic driver with beryllium diaphragm for precise imaging and low distortion
• High-energy balanced response with extended bass
• Optimized silicone ear tips (S, M, L) for strong seal and isolation
• Gold-plated MMCX connectors allow for 360-degree rotation for ideal positioning
• Reinforced wire wrap near the connector holds the earphone confidently in place
• Premium silver-plated, oxygen-free copper cable in a durable soft coat jacket with gold-plated 3.5 mm (1/8 in) plug

Specifications

• Operating Principle Dynamic – moving coil
• Sensitivity (@ 1 kHz) 107 dB SPL/mW
• Frequency Response 10 Hz – 19 kHz
• Impedance 35 Ohms
• Noise Isolation 25 dB @ 1 kHz
• Driver Size 10 mm
• Diaphragm Beryllium Alloy
• Magnet Neodymium
• Shell Crystal Polycarbonate, tuned and vented
• Connectors MMCX, 3.5 mm (1/8 in)
• Cable
  • 1.5 m detachable MMCX,
  • braided, oxygen-free
  • copper, 40 µin silver-plated

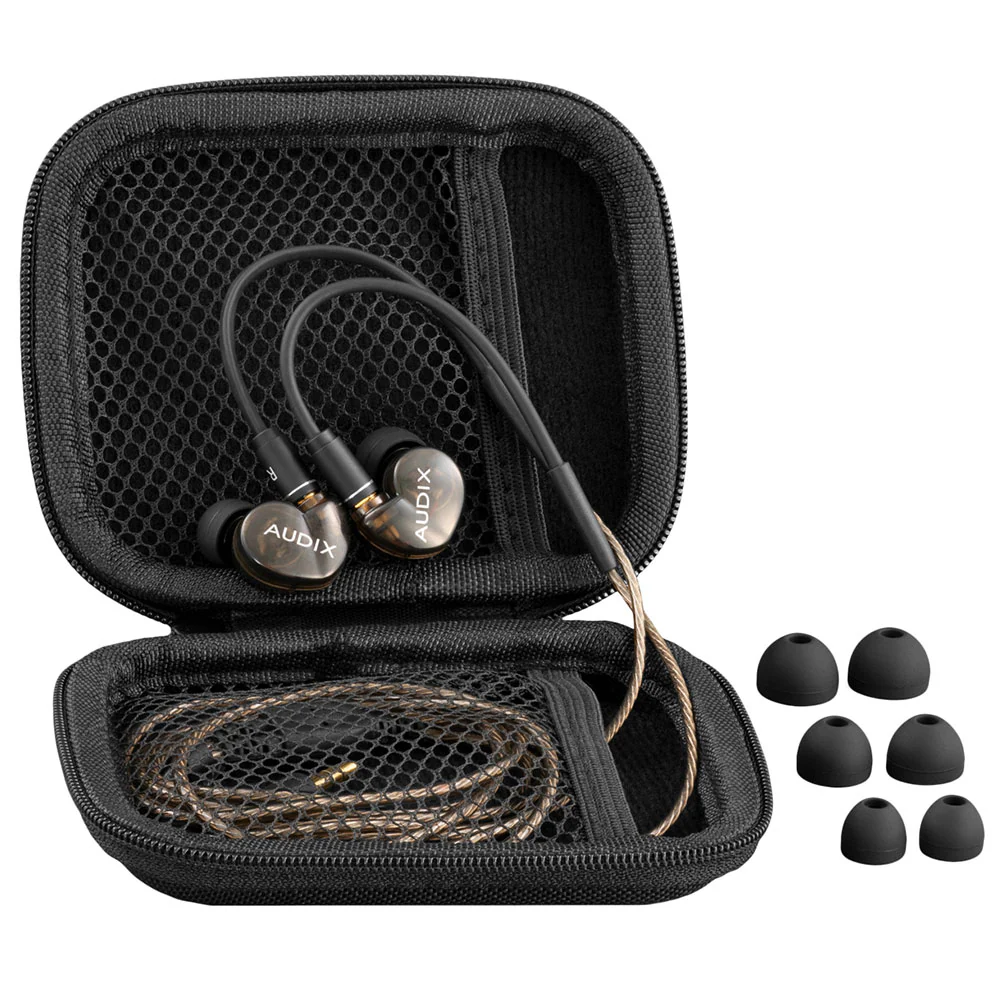

• Supplied Accessories
  • Protective carrying case
  • Detachable 1.5 m cable
  • Small, medium and large pairs of silicone ear tips
