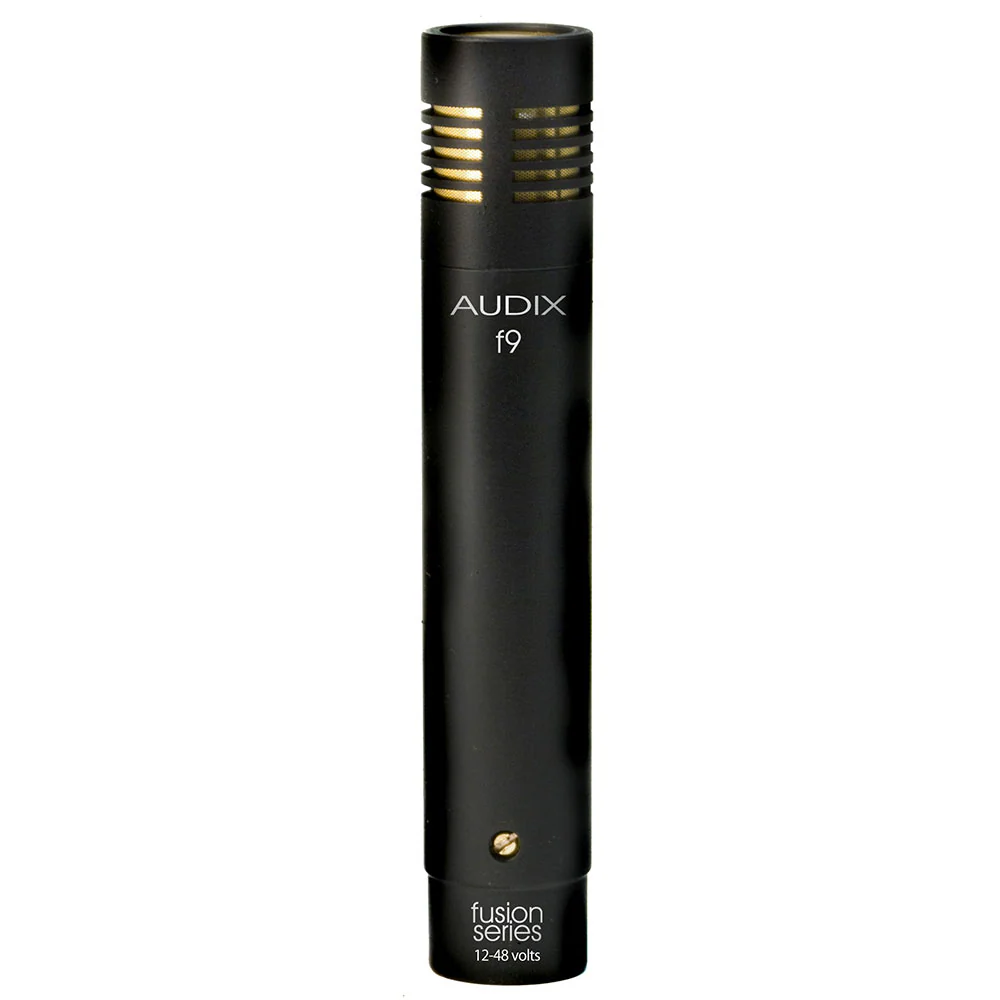

AUDIX F9 Pencil Condensers
Characterized with a uniformly controlled cardioid polar pattern, the f9 is designed to capture the acoustics of the instrument being miked while at the same time isolatingit from the rest of the instruments on stage. The f9 features a 16 mm pre-polarizedcapsule with gold vapor diaphragm and a frequency response of 40 Hz – 20 kHz.
The f9 is easy to position, durable and manufactured with high standards and tighttolerances. The f9 is manufactured with a precision cast zinc alloy body, durable blackE-coat finish and gold plated XLR connector.
USER TIPS
The f9, an excellent choice to mic any kind of acoustic instrument, has a cardioid pick-up pattern which helps to eliminate sound from other instruments on stage from “bleeding” into the microphone. However, the f9 is much more sensitive than a dynamic and will pick-up sound from a greater distance. The acoustic nature of the instrument being miked along with how loud it is will determine how far the microphone should be from the sound source. For example, the f9 can be placed 1-2 feet above the cymbals of a drum kit and still pick up plenty of sound, whereas for a acoustic guitar, the mic will need to be placed within 8-12 inches to be effective. Allow a distance of 2-3 feet between microphones to avoid phase issues.
Applications
- Cymbals
- Overheads
- Hi-Hat
- Percussion
- Acoustic instruments
- Audience mic
Features
- All-purpose pencil condenser microphone for live sound or home studio
- Excellent transient response
- Modular capsule design
- 3 year warranty
Specifications
- Transducer Type Pre-Polarized Condenser
- Frequency Response 40 Hz - 20 kHz
- Polar Pattern Cardioid
- Output Impedance 200 ohms
- Sensitivity 8 mV / Pa @ 1k
- Capsule Technology Gold Vapor Deposition
- Equivalent Noise Level 25 dB (A-weighted)
- Signal to Noise Ratio 69 dB
- Off-Axis Rejection >24 dB
- Maximum SPL 137 dB
- Power Requirements 12-48 V Phantom
- Dynamic Range 112 dB
-
Polarity
- Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output
- XLR connector
- Materials / Finish Zinc Alloy / Black Finish
- Product Weight 95 g / 3.3 oz
- Product Length 111 mm / 4.37 in
$214.89
AUDIX F9 Pencil Condensers—
$214.89
