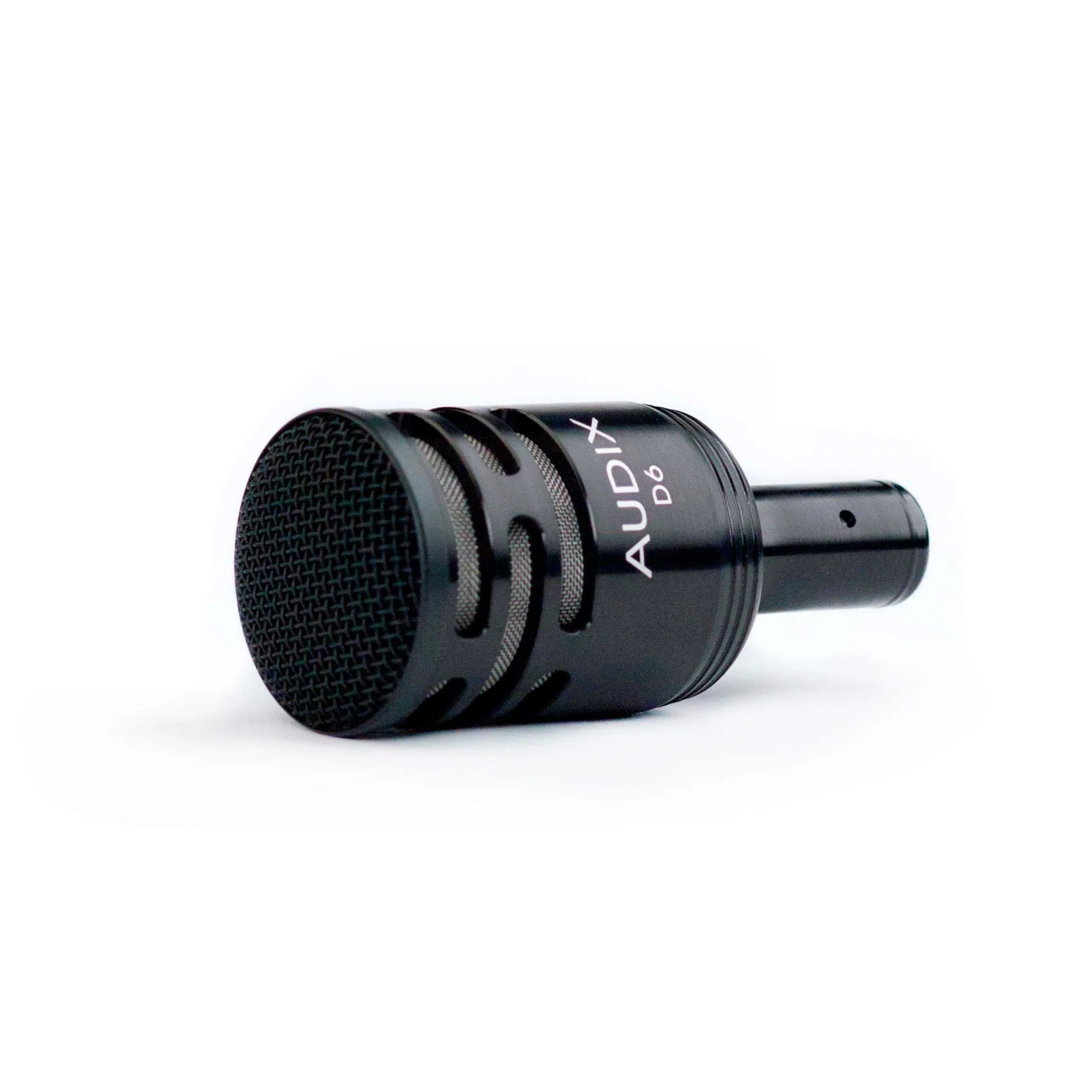

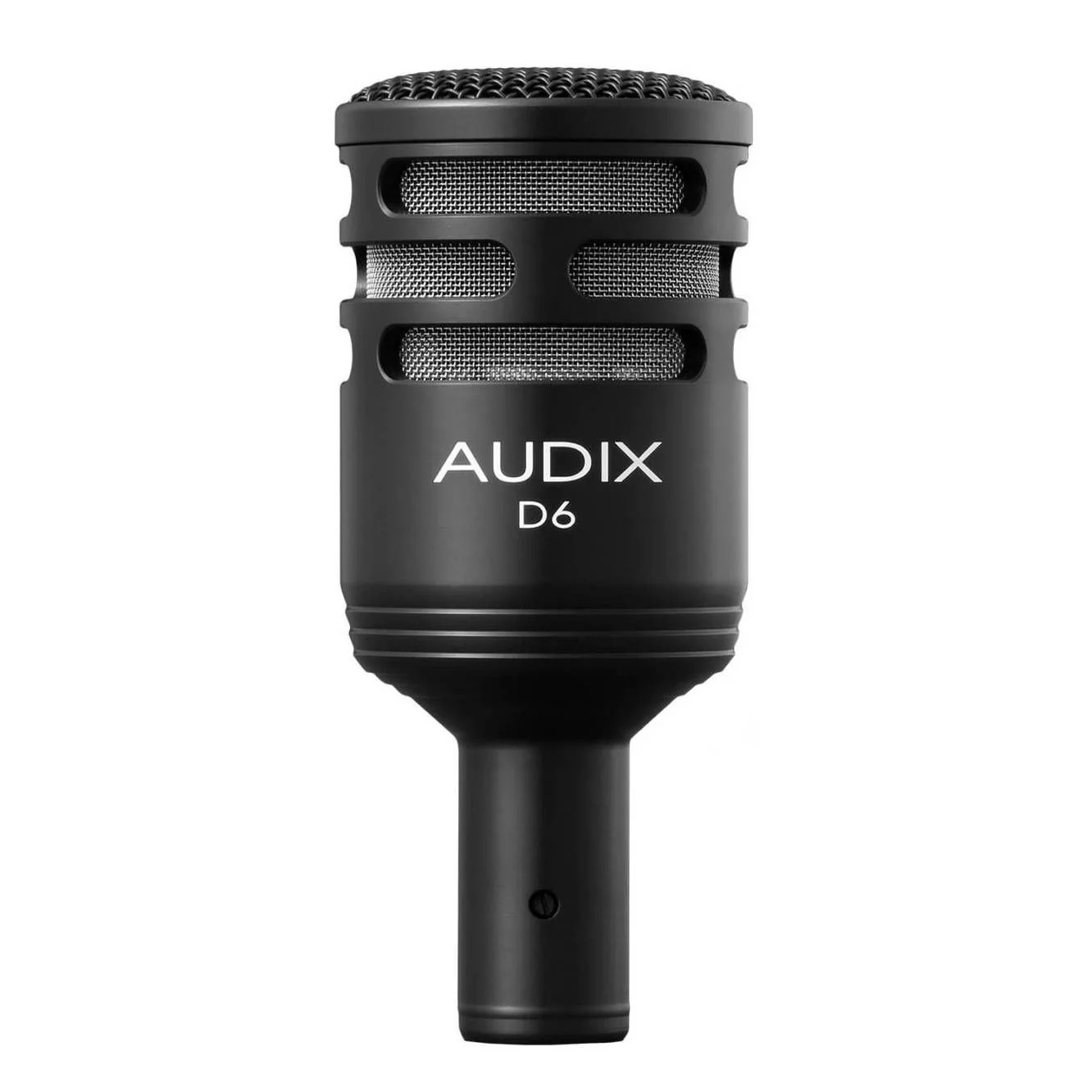

Designed with a cardioid pickup pattern for isolation and feedback control, the D6 drum microphone is equipped with a VLM™ diaphragm for natural, accurate sound reproduction.

Lightweight, compact, and easy to position, the D6 cardioid microphone is an excellent choice for miking instruments requiring extended low-frequency reproduction such as kick drums, large toms, and bass cabinets. The D6’s transformerless design, low impedance, and balanced output allow for interference-free performance.

Designed, machined, assembled, and tested by Audix in the USA.

---

Specifications

• Transducer Type: Dynamic
• Frequency Response: 30 Hz – 15 kHz
• Polar Pattern: Cardioid
• Output Impedance: 280 ohms
• Sensitivity: 0.8 mV / Pa @ 1k
• Capsule Technology: WLM Type E
• Off-Axis Rejection: >20 dB
• Maximum SPL: 144 dB
• Power Requirements: None

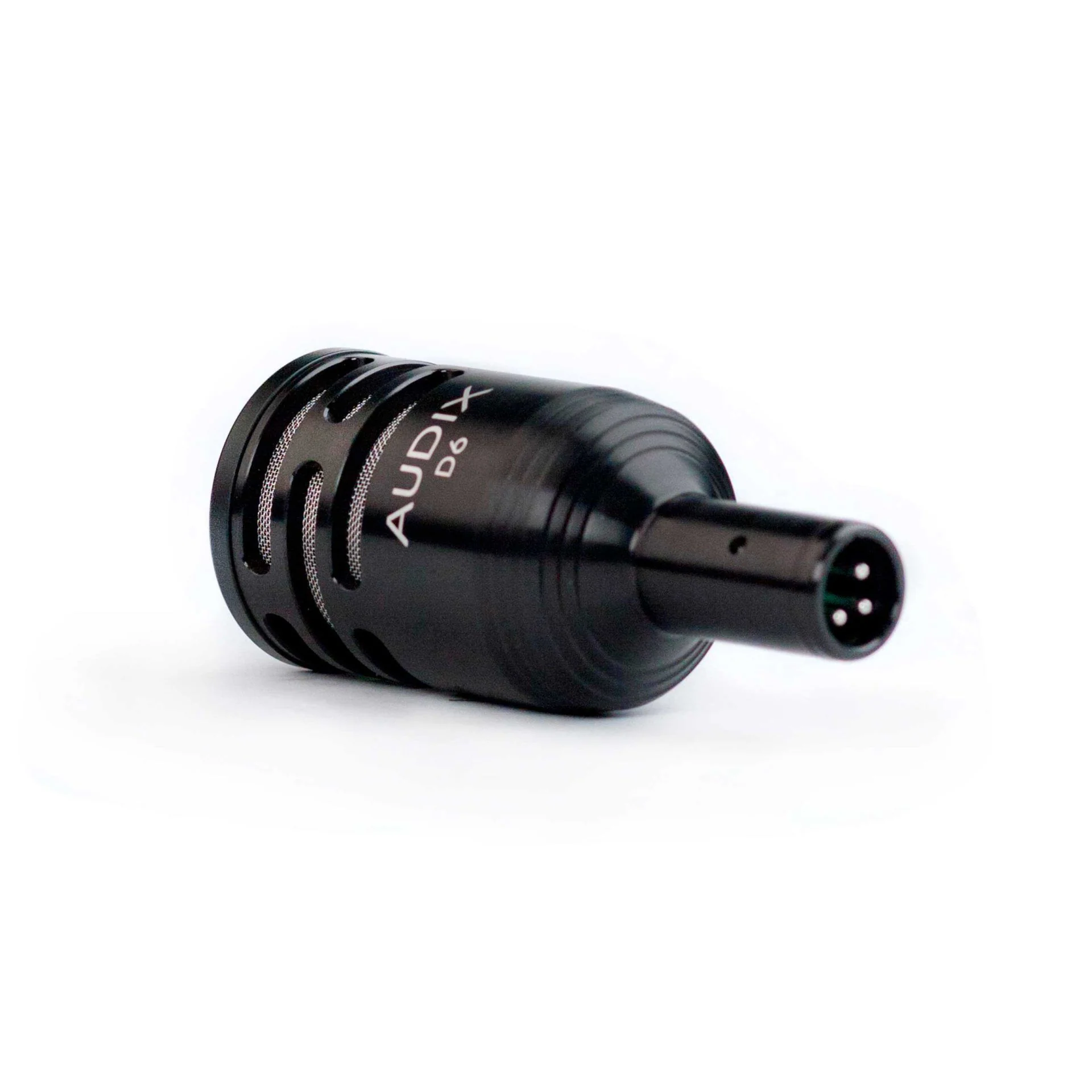

• Connector: 3-pin XLRm
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish: Machined Aluminum / Black Finish
• Weight: 254 g / 8.9oz
• Length: 117 mm / 4.6 in

What's in the box

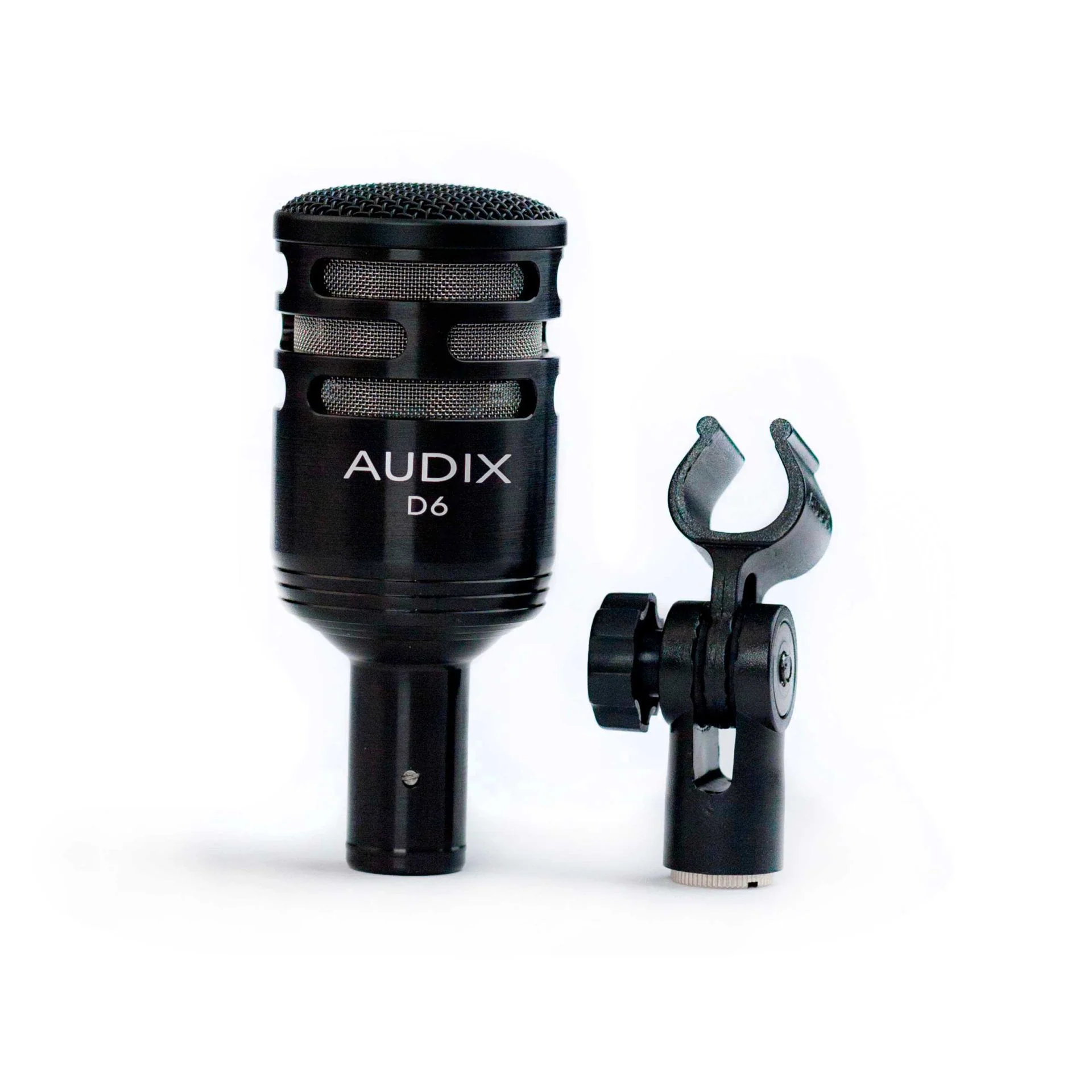

• 1x D6 Instrument Microphone
• 1x DCLIP Microphone Clip
• 1x P1 Carrying Pouch
