Experience your vinyl collection like never before—with the ability to preserve every detail as high-resolution digital audio. The handytraxx 1bit lets you enjoy pristine sound quality anytime, anywhere, while securely backing up your records in the industry-leading 5.6 MHz, 1-bit (DSD) format.

As the flagship model in the handytraxx lineup, the handytraxx 1bit offers cutting-edge recording technology that captures vinyl at an astonishing 5.6 million samples per second, delivering crystal-clear, dynamic sound that faithfully preserves the warmth and character of your records. Whether you're digitizing a treasured collection or simply enjoying your favorite albums, this portable turntable provides the ultimate solution for vinyl lovers who demand the best in both playback and archiving.

Features

• The built-in newly developed vacuum tube phono equalizer Nutube allows for natural harmonic enhancement
• Compatible with both PHONO and LINE outputs
• Equipped with tone controls for simple Bass and Treble adjustment
• Record directly to your PC with a single USB cable
• Powered by either six AAA batteries, USB power or mobile battery (both Type-C)
• Comes bundled with the incredibly powerful AudioGate 4 software, necessary for 1-bit recording and audio format conversion

Specifications

• Drive System: Belt Drive System (with CPU Controlled Rotation Compensation Function)
• Drive Motor: DC Servo Motor
• Rotation Speed: 33-1/3, 45, 78 RPM
• Platter: Aluminum Die-Cast
• Wow and Flutter: < 0.15% (WTD) at 3 kHz
• Signal-to-Noise Ratio (S/N Ratio): > 70 dB (DIN-B)
• Cartridge Type: MM Type Stereo Cartridge (JICO J44 A7)

Output Level

• Phono: 230mV (1 kHz, 5 cm/Sec)
• Line: Max 2.3 Vp 2 THD 1%
• Headphones: Max 80 mW (32 Ohms) THD 1%
• Speakers: 2 x Max 2.5 W (THD 1%, 4 Ohms)

Phono Preamp

• Gain: Standard Value 38 dB
• Equalizer Characteristics: RIAA

Tone Control

• Bass: 130 Hz, ±8 dB
• Treble: 5.5 kHz, ±8 dB

Tube Control

• Gain: 0 to 6 dB

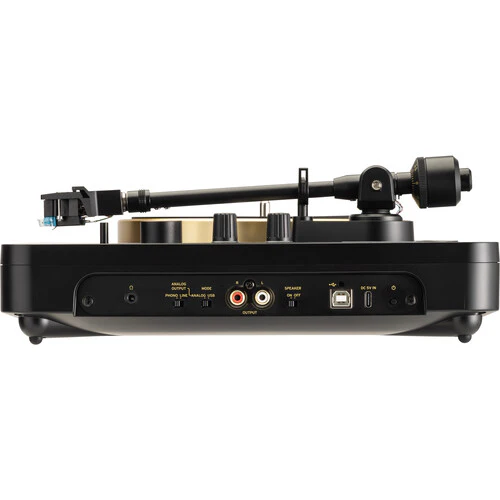

Inputs/Outputs

• USB I/O
  1 x USB-B 2.0 Female Output
  1 x USB-C (Power Only) Female Input
• Audio I/O
  1x 2RCA Coaxial Line Output
  1x 1/8" / 3.5 mm TRS Headphone Output
• USB
  DSD: 2.8224 MHz / 5.6448 MHz、1-Bit
  PCM: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz, 16- / 24-Bit

Power

• Power Source: AC Adapter with Power Brick (Included)
• Battery Type: 6x AA
• DC Input Power: 5 VDC
• Power Consumption: 2.35 W
