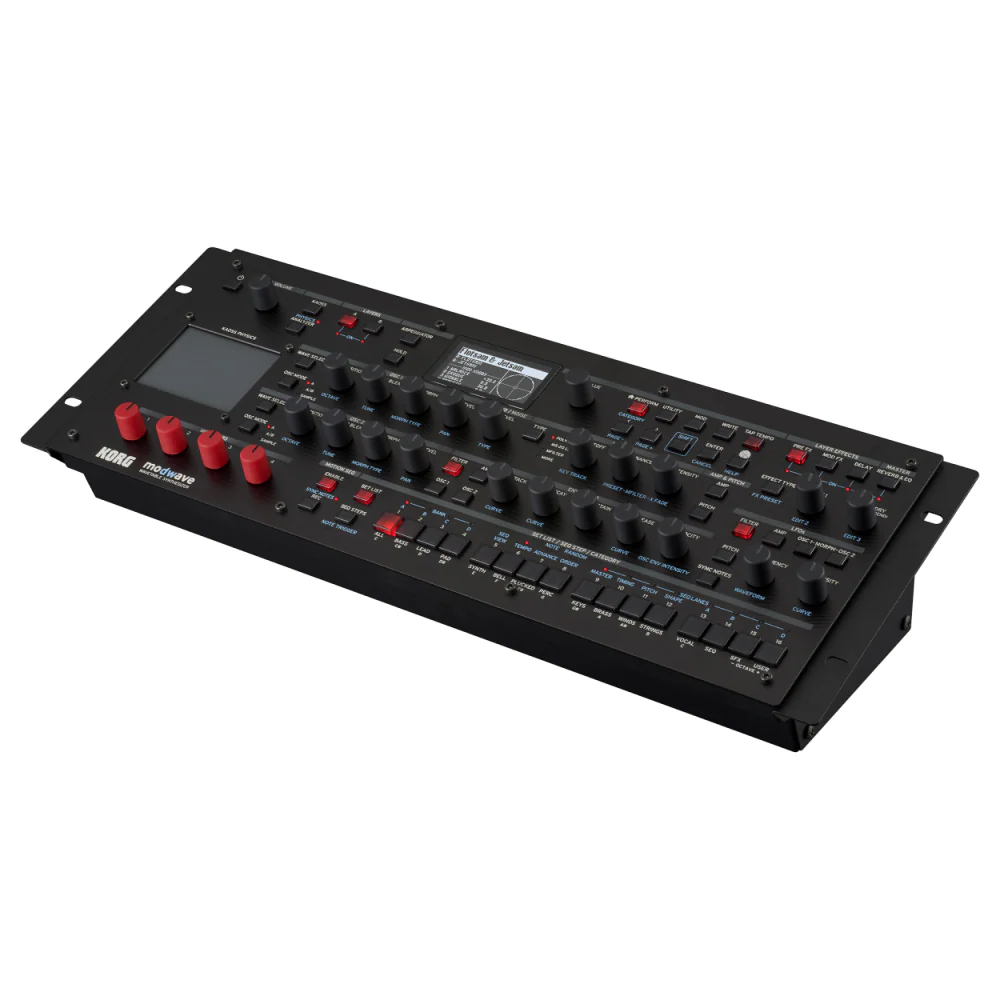

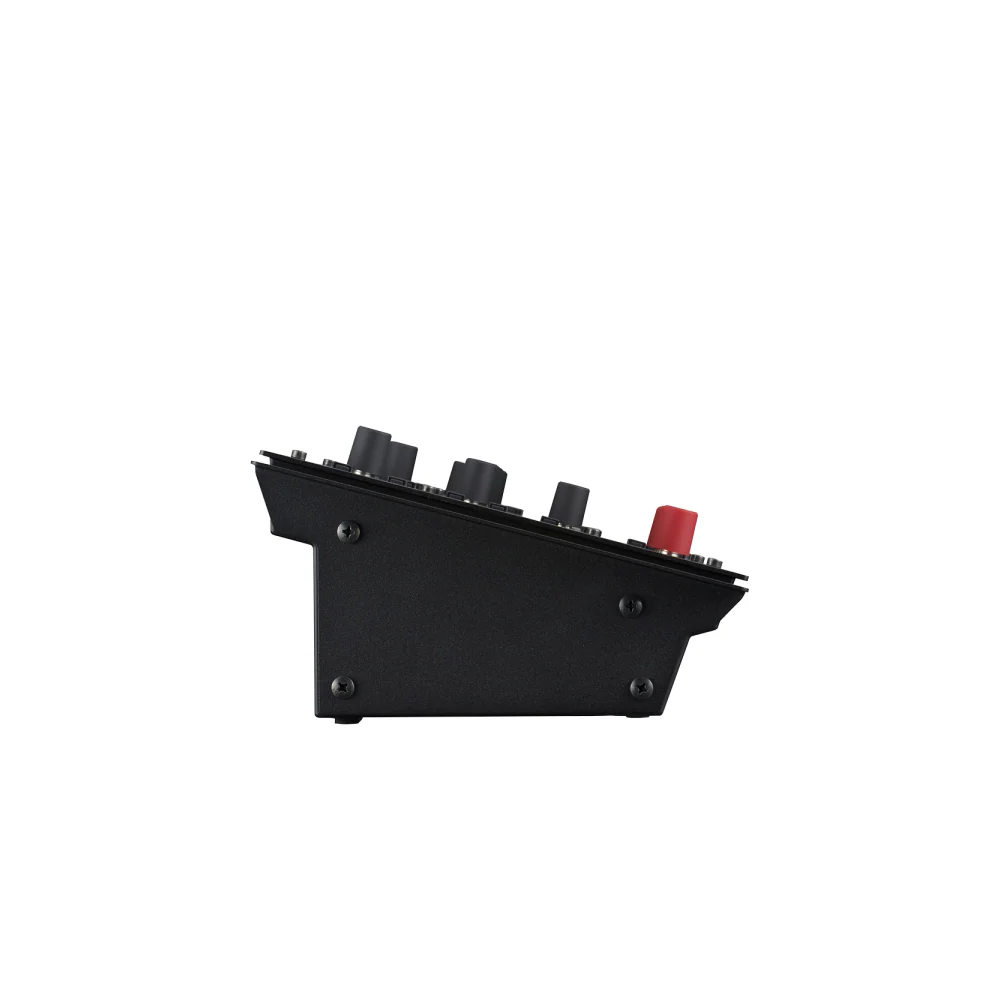

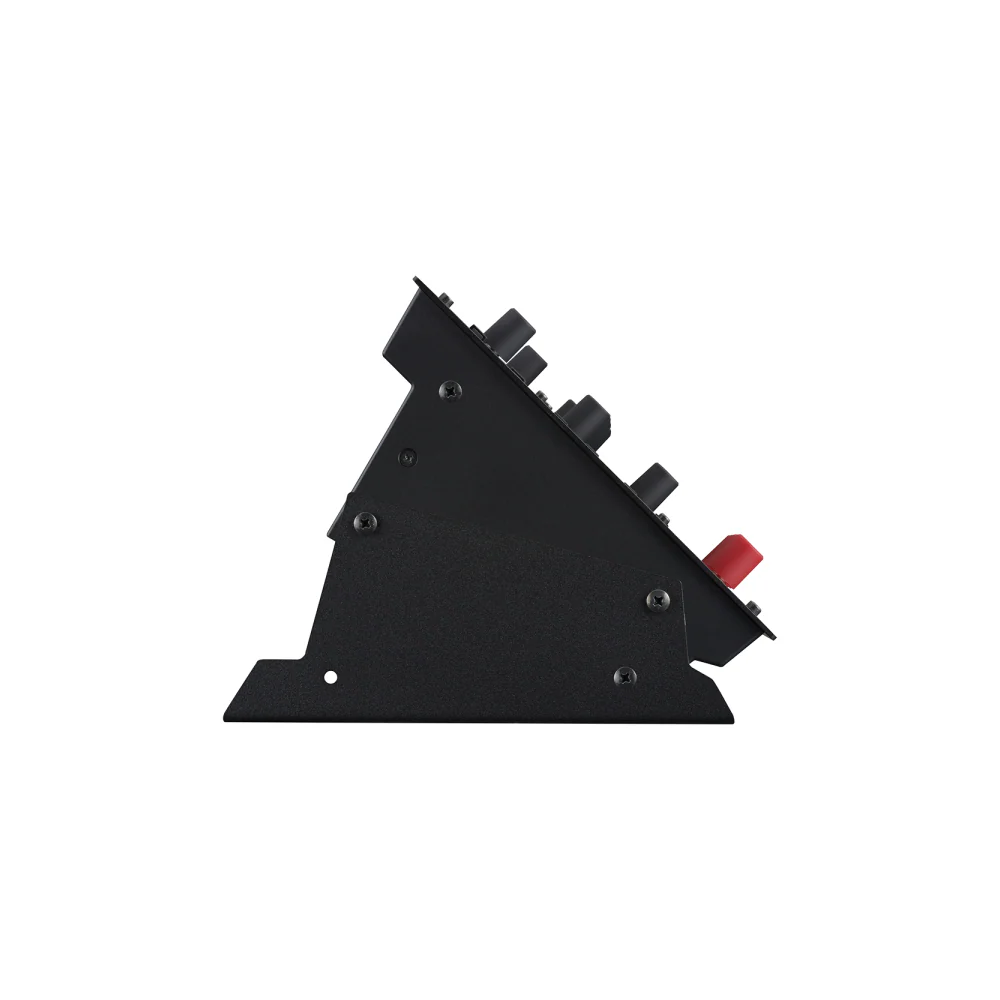

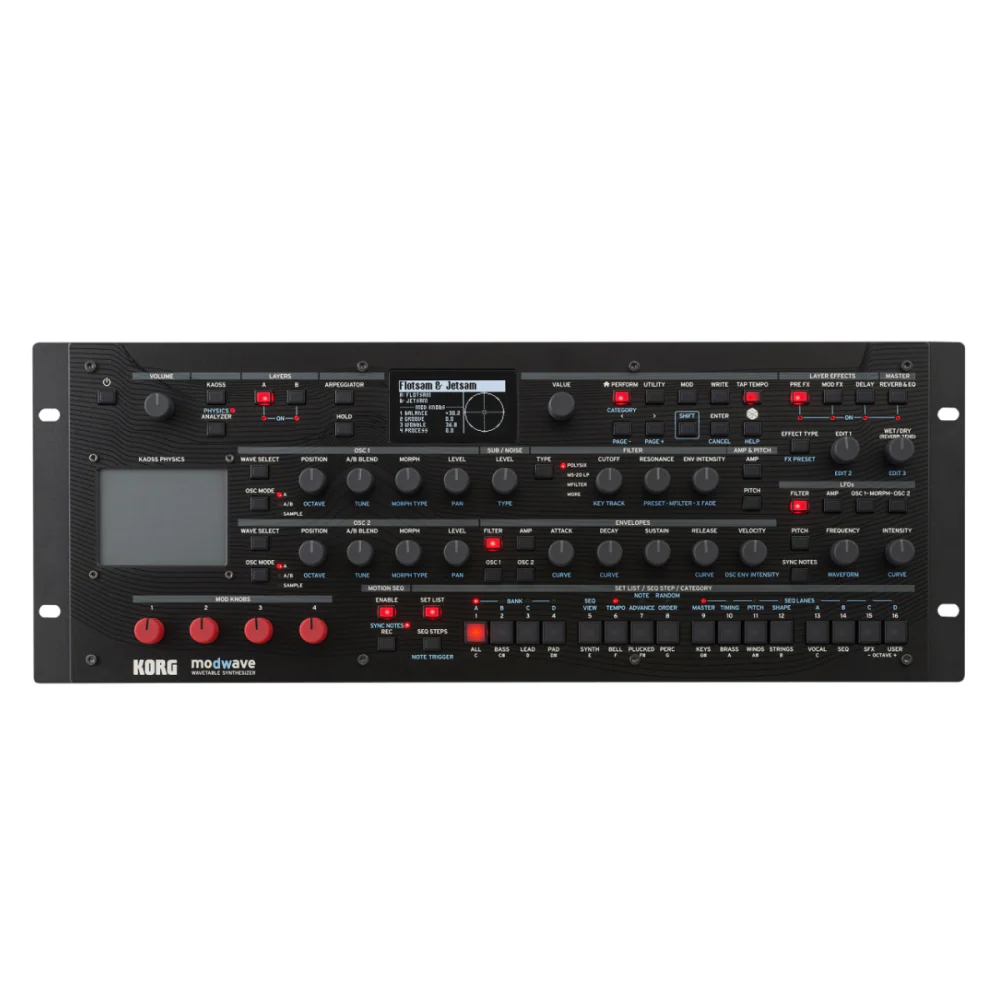

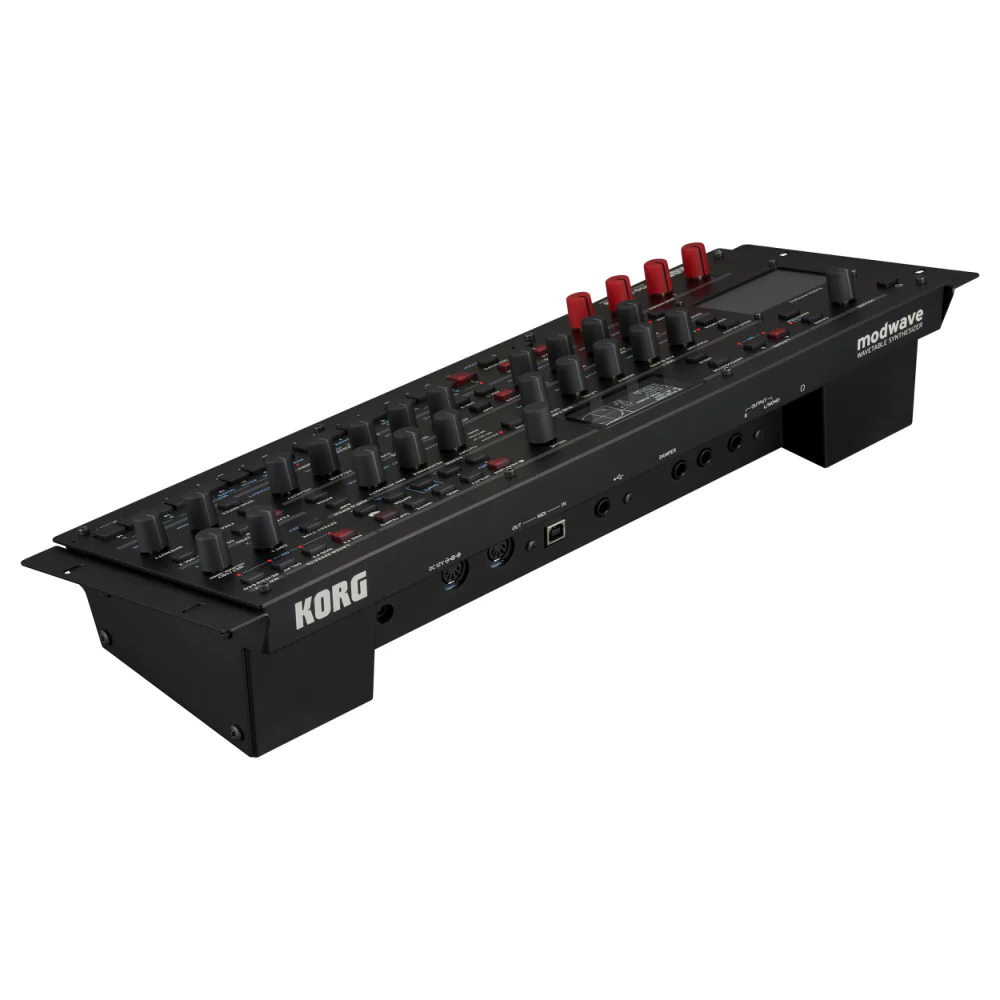

Modwave builds on the legacy of the KORG DW-8000, featuring an incredibly deep wavetable oscillator, superior filters, extremely flexible modulation, unparalleled polyphony, comprehensive pattern sequencing, and a unique and powerful, lightweight with customizable sounds and phrases, turns it into a modern monster synthesizer with hands-on control. 60 voices of polyphony, updated LFOs, and more Similar to the Modwave mkII, the Modwave module offers an incredible 60 stereo voices with polyphony. This is nearly double the original the Modwave's 32, an unprecedented number for a wavetable synthesizer at any price. The new 4U rackmount enclosure features the same controls as the keyboard model, but is more portable and easily fits into your studio or desktop production system. In response to user requests, we've updated all LFOs with free running, delayed start, and retrigger options. Also added are pre/post switches for reverb sends, new modulation sources, and more. A software update will also be available for the original modwave. Modwave modules are fully compatible with sounds and samples from original Modwave, Modwave mk II, and Modwave native software, as well as many excellent third-party libraries. MIDI 2.0 Property Exchange and Polyphonic Aftertouch Support With the latest software update, all Modwave models, hardware, and software now support MIDI 2.0 property exchange and provide easy access to polyphonic aftertouch, making them an excellent partner for KORG's keystage controllers. Rack-Mount and Desktop Modwave modules are cleverly designed for desktop and rack-mount use. The panel has been redesigned to fit a standard 19 width, and the rear jack panel is recessed for easy access to cables even when equipment is mounted directly above. For desktop setups, the mount allows you to choose the angle of the panel. Lay it flat if you're performing standing up, or upright if you're working seated in the studio.

Specifications

System

• Maximum Polyphony - 60 stereo voices
• Sound generating system - modwave synthesis engine
• Controllers - Mod Wheel, Pitch Wheel, Kaoss Physics, 4x Mod Knobs

Modulation

• Other Sources - 4x Envelopes, 5x LFOs, 2x Mod Processors, 2x Key Track, Seq Lanes A-D, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate, Gate+Damper, Note-On Trigger, Note-On Trigger+Damper, Note Number, Aftertouch and Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs +
• Destinations - Most parameters can be modulated, including parameters of individual Motion Sequence Steps. Depending on Motion Sequence length, there can be more than 1,000 potential modulation targets per Program.

Effects

• Pre FX - Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper
• Mod FX - Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah
• Delay - L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo
• Master Reverb - Early Reflections, Overb
• Master EQ - 4-band parametric EQ

General

• Inputs/outputs - Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port
• Power supply - AC adapter (DC12V, 2500mA)
• Power consumption - 5 W
• Dimensions (Separate from shipping details)(W x D x H)483 x 172 x 107 mm / 19.02 x 6.77 x 4.21 inch
• Weight - 1.7 kg / 3.75 lbs.
• Accessories - AC adapter
