Specifications

• Product type: DI Boxes
• Type: Passive
• Channels: 1
• Inputs: 1

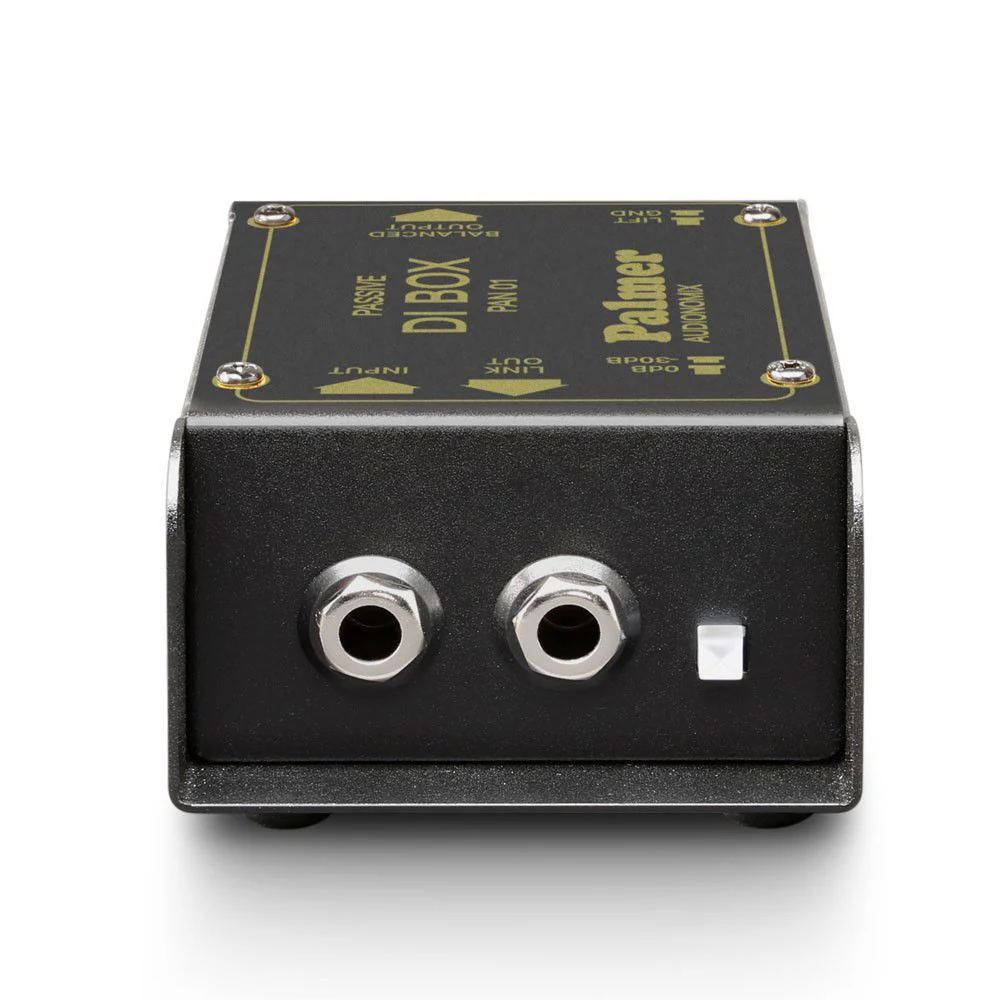

• Input connectors: 6.3 mm jack
• Max. input level: + 54 dBu
• Input impedance: (@ 60 Hz) 60k Ohm(s)
• Input pad: 0 / -30 dB
• Outputs: 1
• THRU outputs/channel: 1

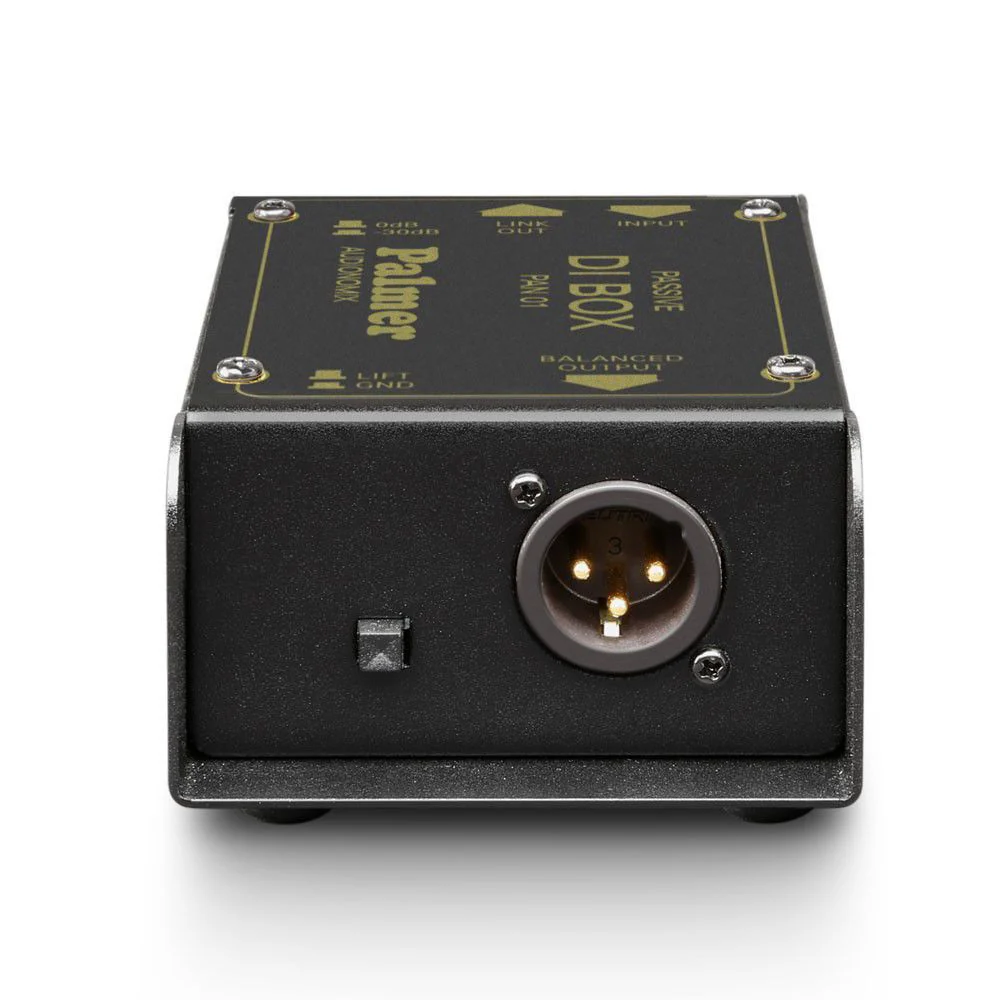

• Output connectors: 6.3 mm jack, XLR
• Max. output level: + 4 dBu
• Output impedance: 600 Ohm(s)
• Frequency response: 20 - 20000 Hz
• Transformer balanced: Yes
• Ratio: 0.417361111111111
• Controls: attenuator, ground lift
• Cabinet material: sheet steel
• Cabinet surface: Powder coated
• Width: 110 mm
• Depth: 73 mm
• Height: 42 mm
• Weight: 0,34 kg
