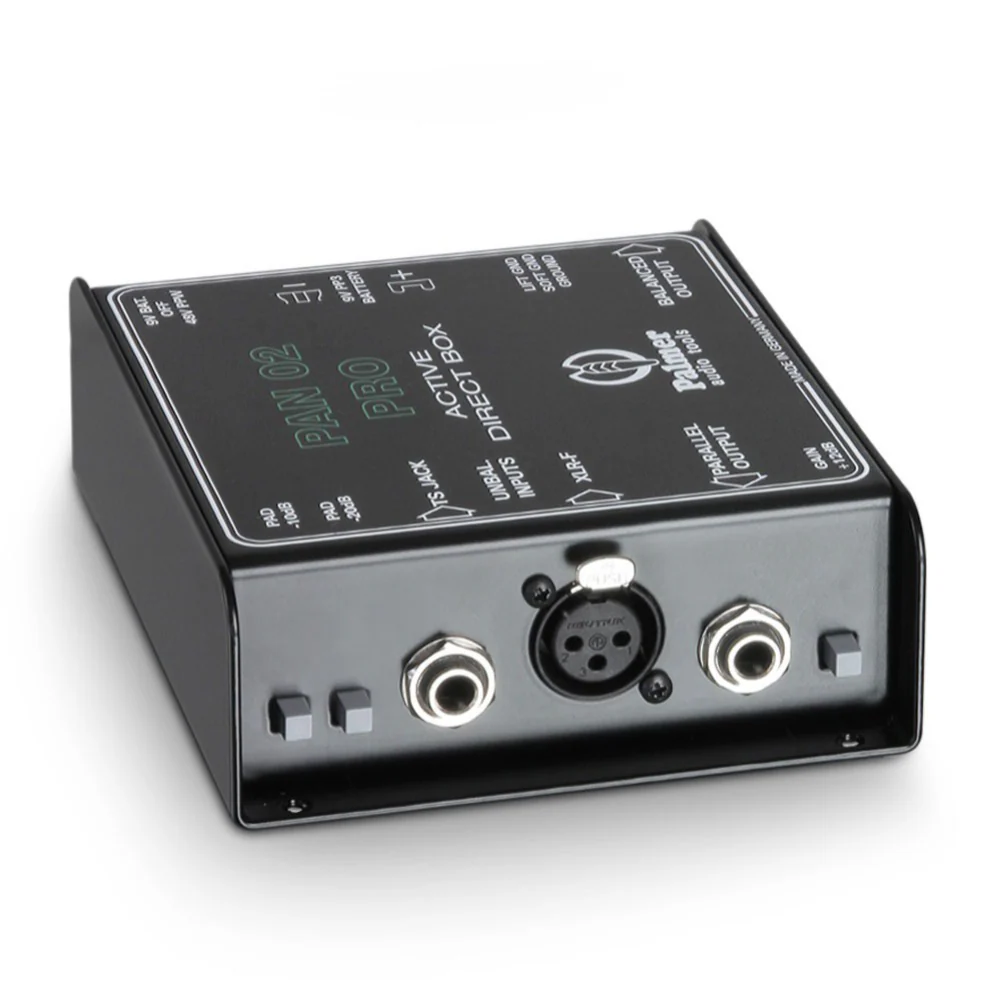

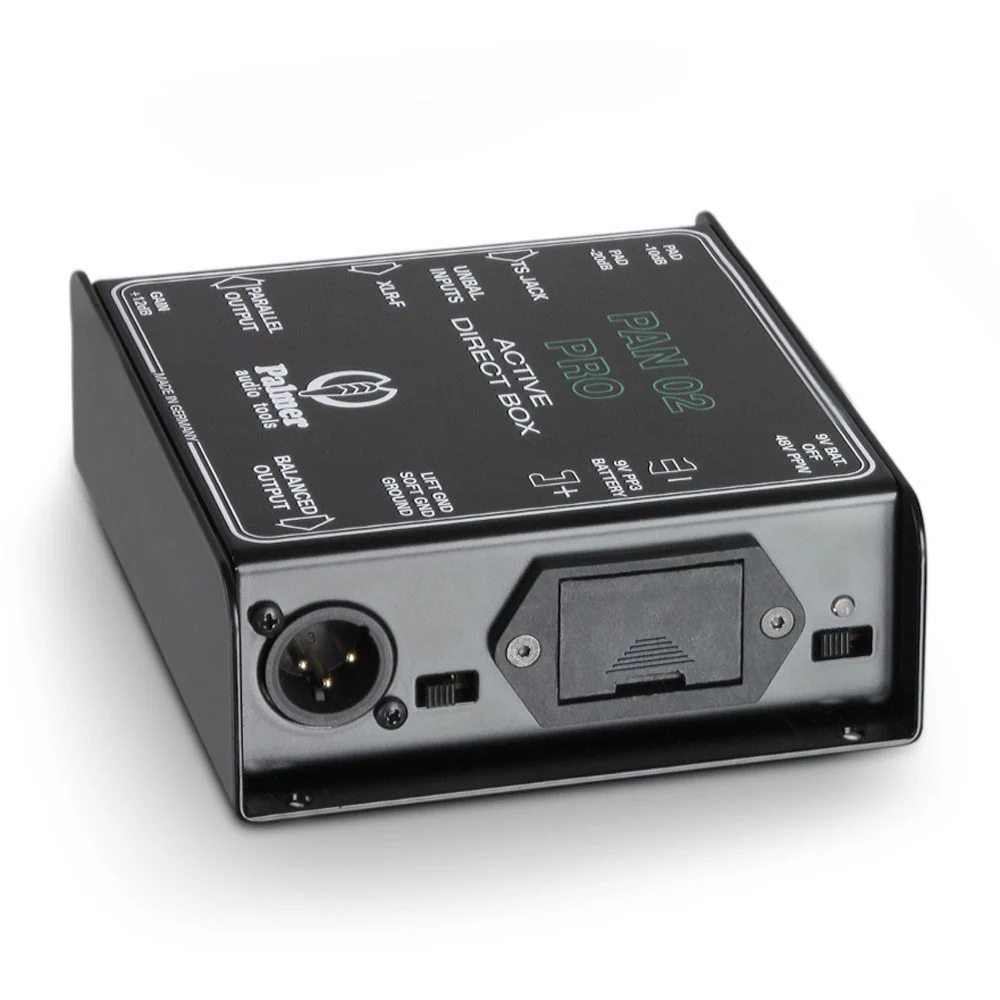

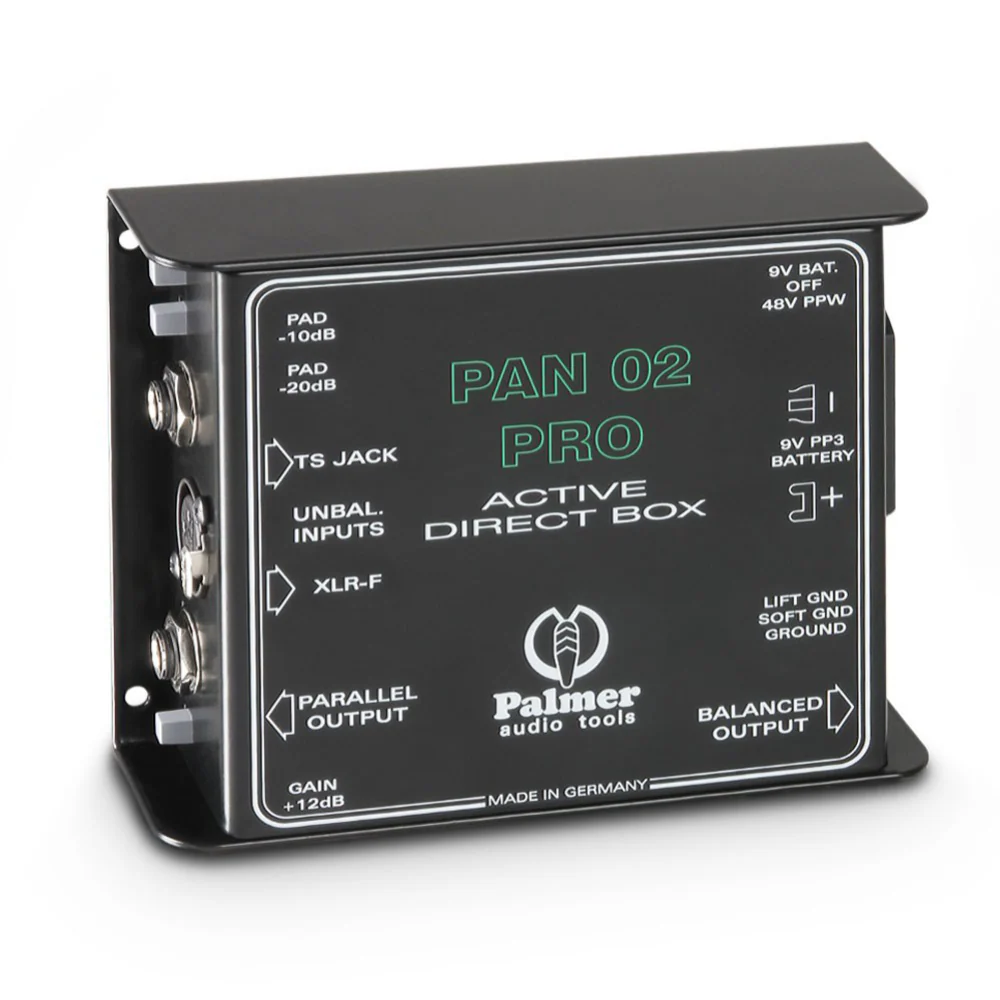

The Palmer PAN02 PRO is an active DI-box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The Groundlift switch has a “lift” position allowing adjustments between a “soft and hard grounding” .

Key Features

• Professional active DI box
• Switchable parallel mix input/link output
• 3-way attenuator (-10, -20, -30dB) + off (odB)
• Switchable gain +12dB
• Max. Output voltage +20 dB
• Rugged 2mm steel casing
• Soft ground lift
• Designed and made in Germany

Technical Data

Product type:	DI Boxes
Type:	Active
Channels:	1
Inputs:	2 (6.3 mm jack & XLR, + 45 dBu max. input level)
Input impedance:	-10 & -20 dB: 70 k Ohm(s) , -30 dB: 40 k Ohm(s) , 0dB & 12 dB: 1 M Ohm(s)
Input pad:	0 dB, -10 dB, -20 dB, -30 dB
Outputs:	1 (6.3 mm jack & XLR, + 20 dBu max. output level)
THRU outputs/channel:	1
Output impedance:	600 Ohm(s)
Frequency response:	20 – 20000 Hz
Transformer balanced:	Yes
Ratio:	3.16:1, 10:1, 31.6:1, 1:4
Controls:	Attenuator , battery/+ 48 V Power , Boost , ground lift
Operating voltage:	+48 V phantom power , 9 V block
Cabinet material:	Sheet steel
Cabinet surface:	Powder coated
