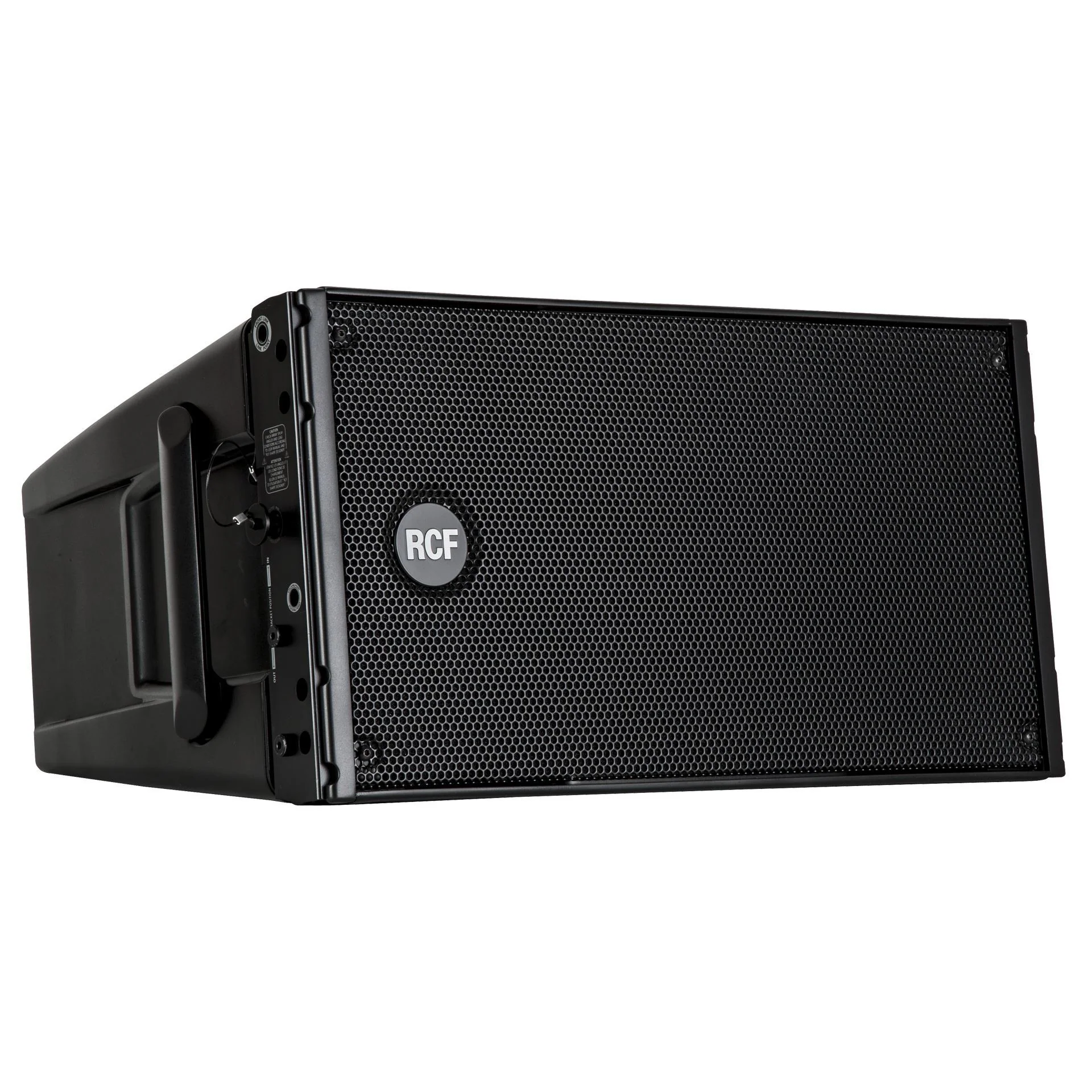

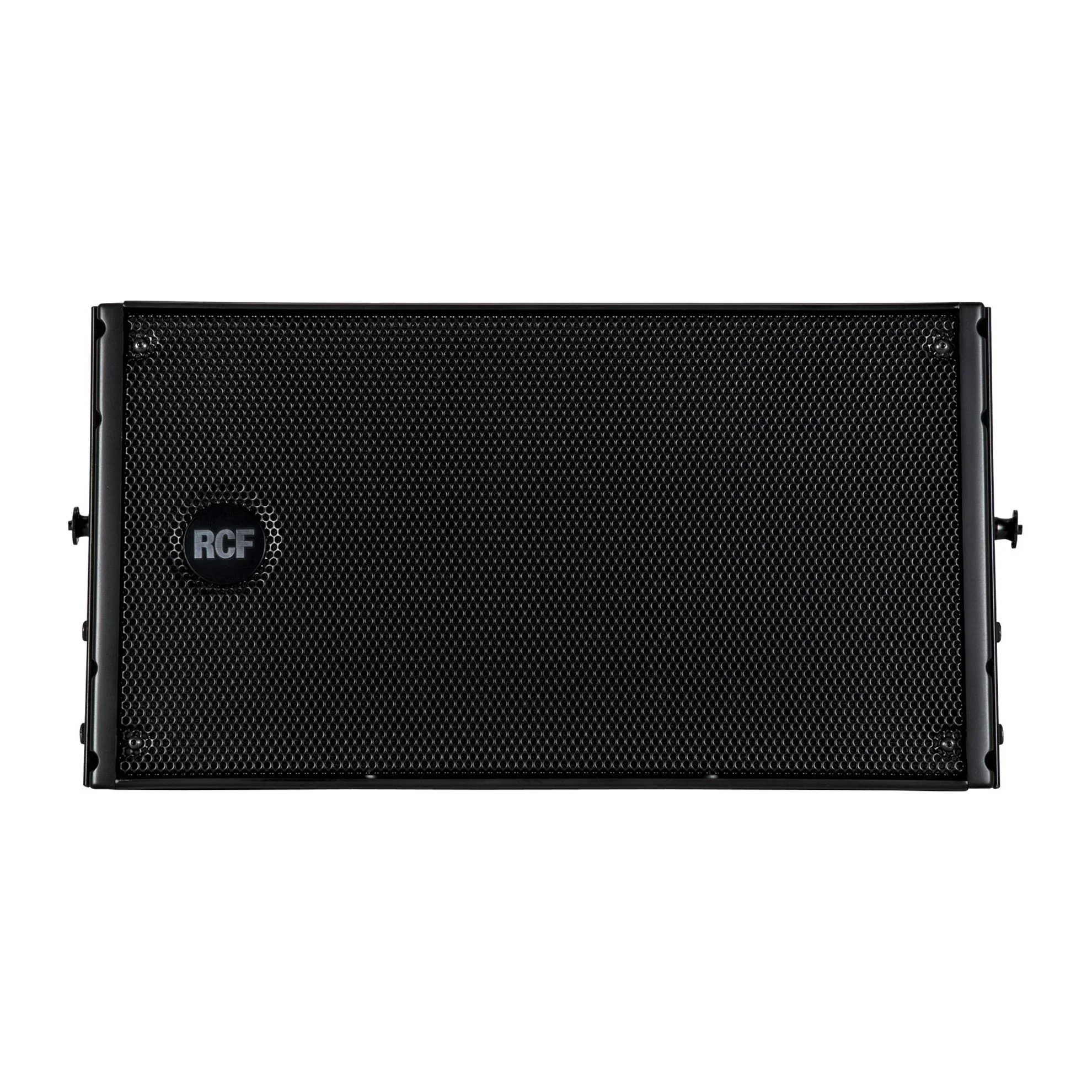

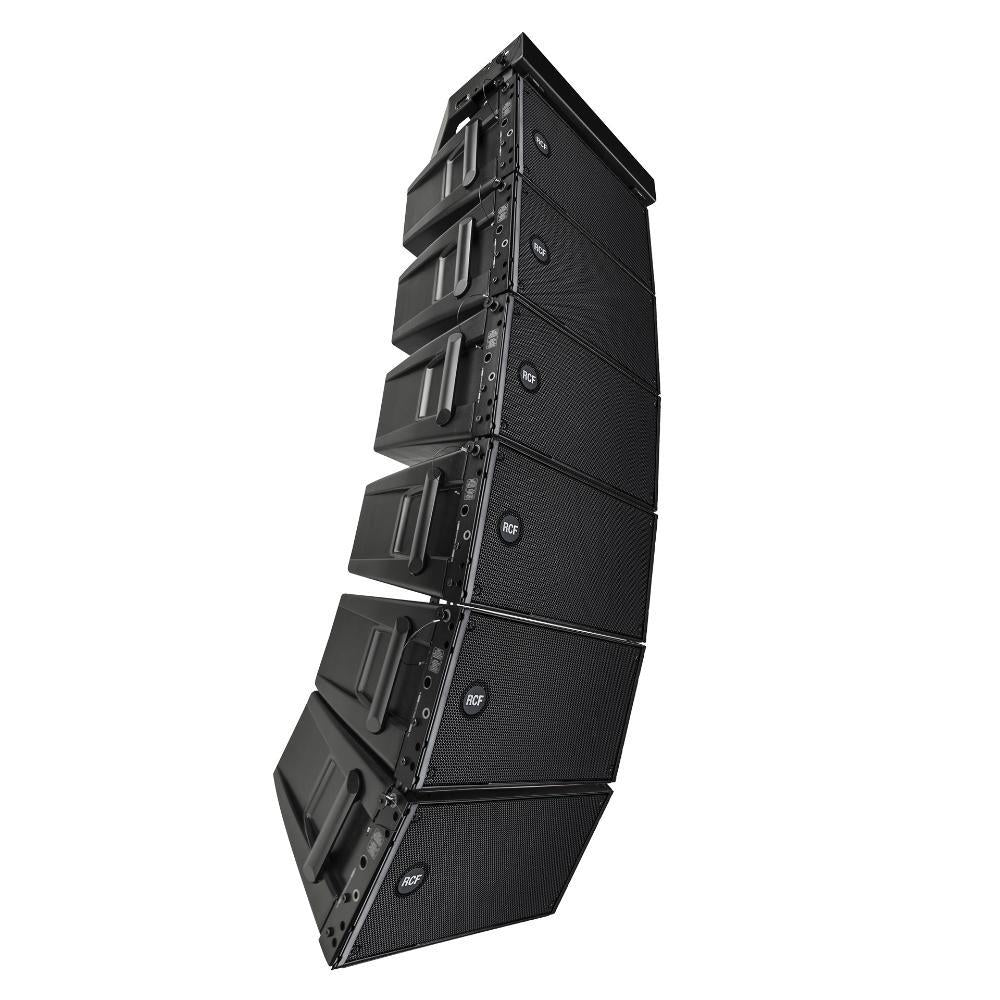

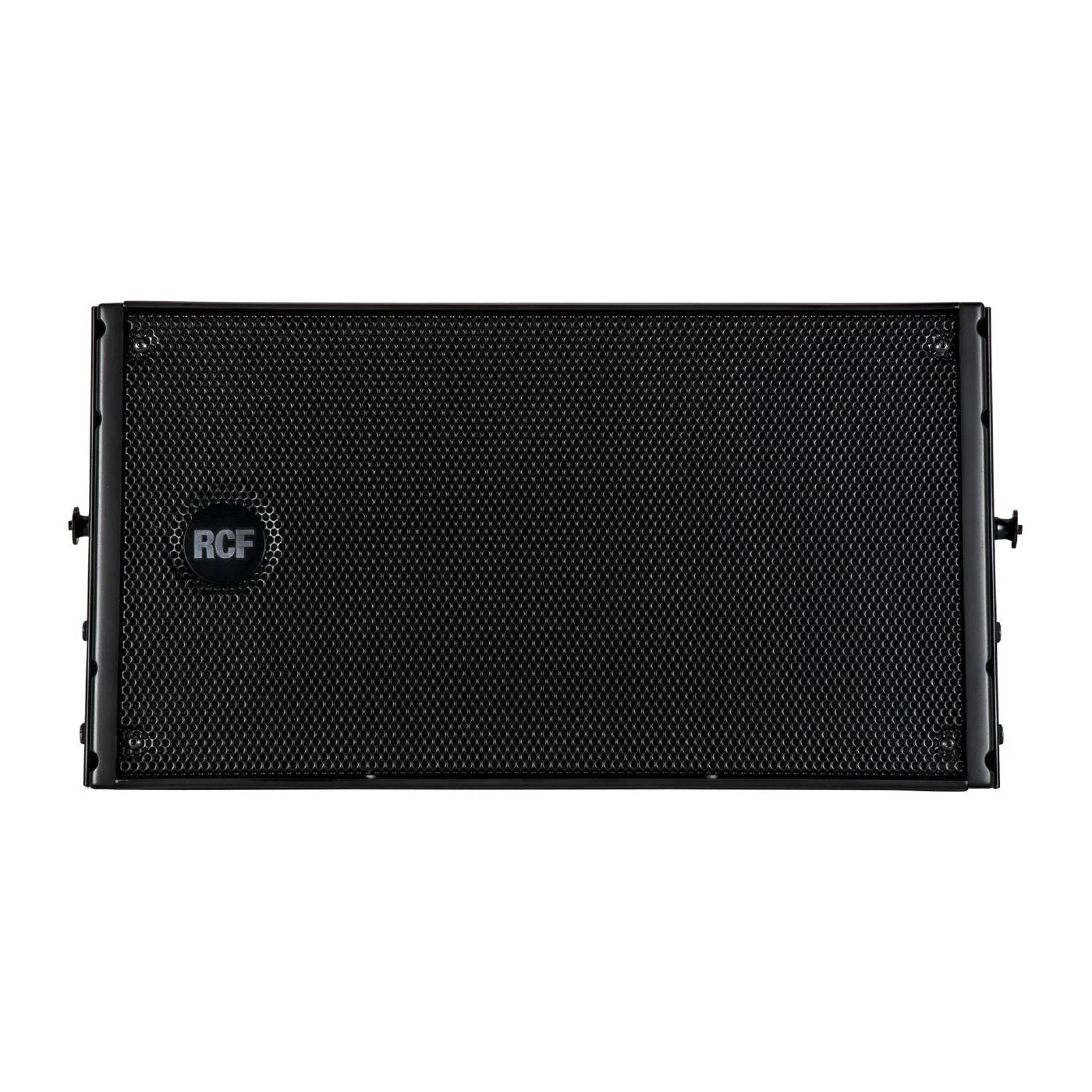

Ideal for live sound reinforcement and fixed installations. The HDL 10-A is the ideal choice when Line Array performance is required with fast and easy operation.

The system uses a 2-channel digital amplifier with 1400 W peak power and audio processing by a powerful digital signal processor (DSP). The HDL 15-AS is the ideal flying bass complement to the HDL 10-A line array system.

---

Features

• 1400 W PEAK, 700 W RMS
• 135 dB SPL max.
• 65 Hz to 20 kHz frequency response

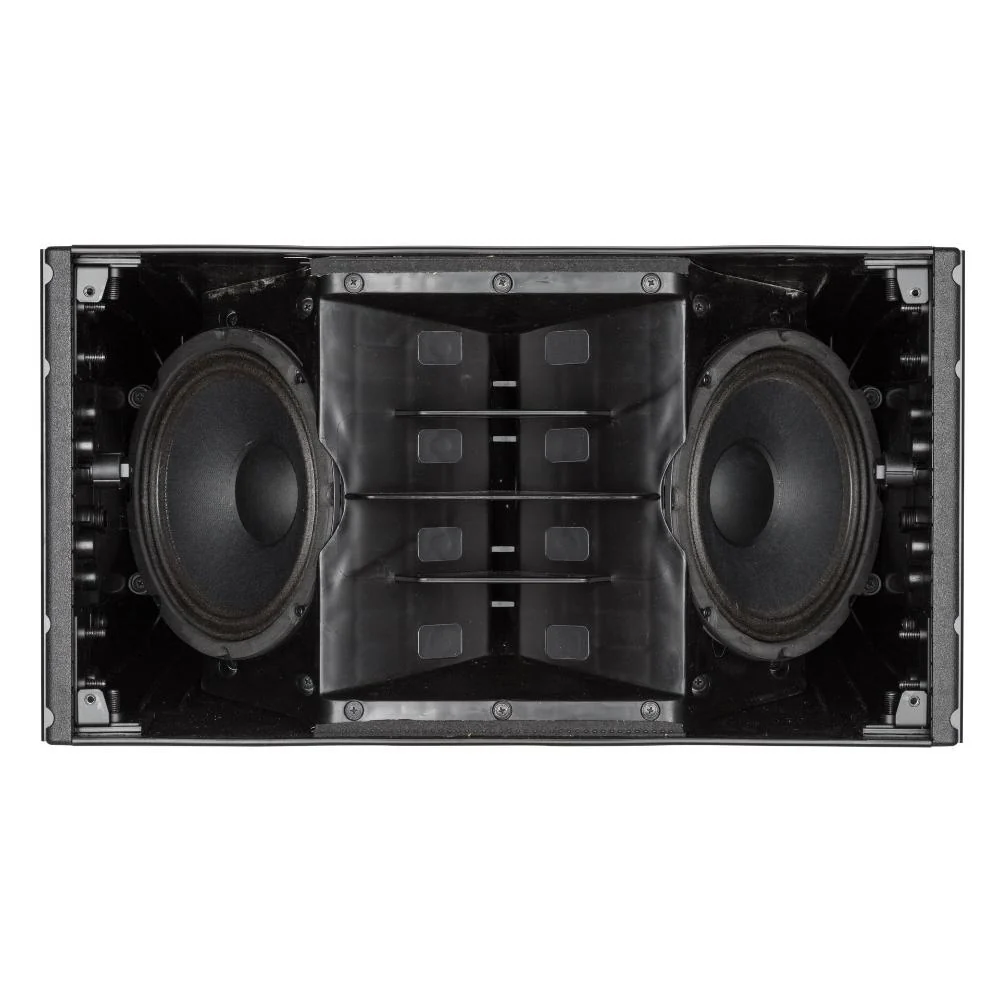

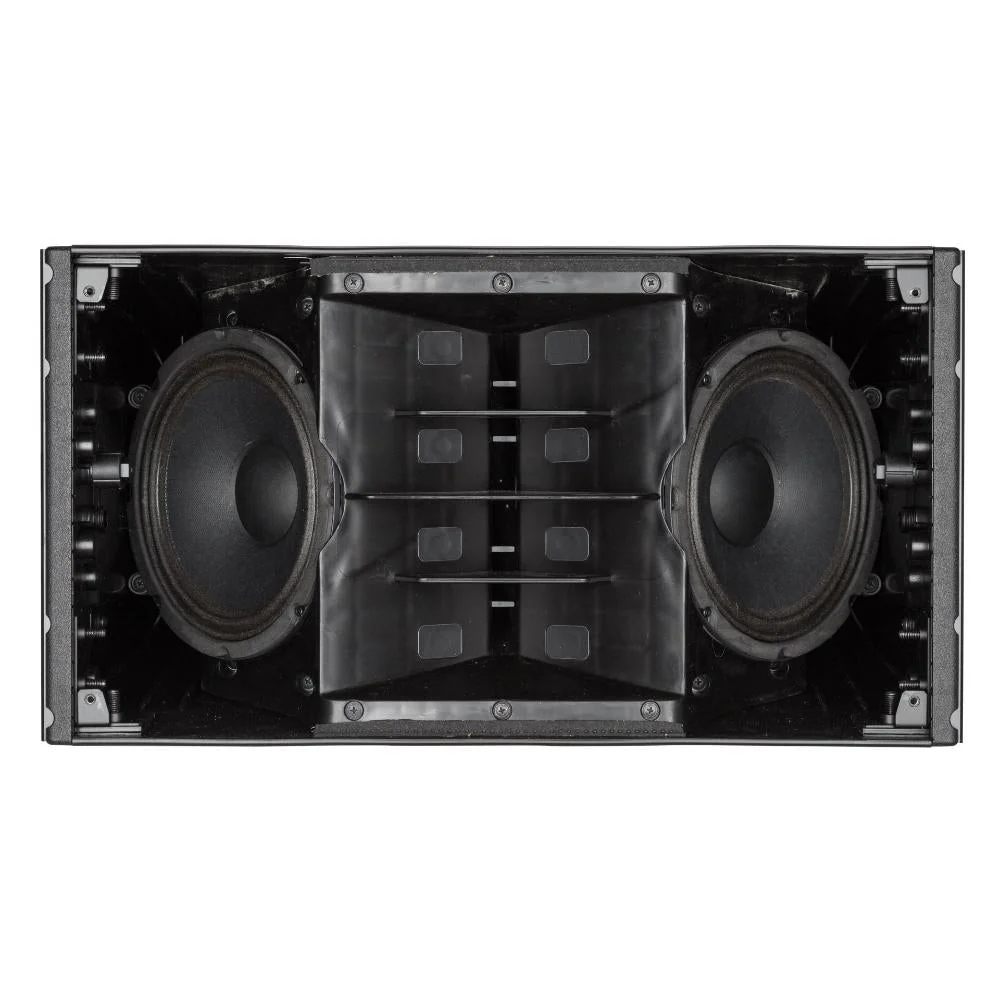

• 2 x 8 "woofers
• RCF Precision C motor with waveguide and 2.5 in voice coil

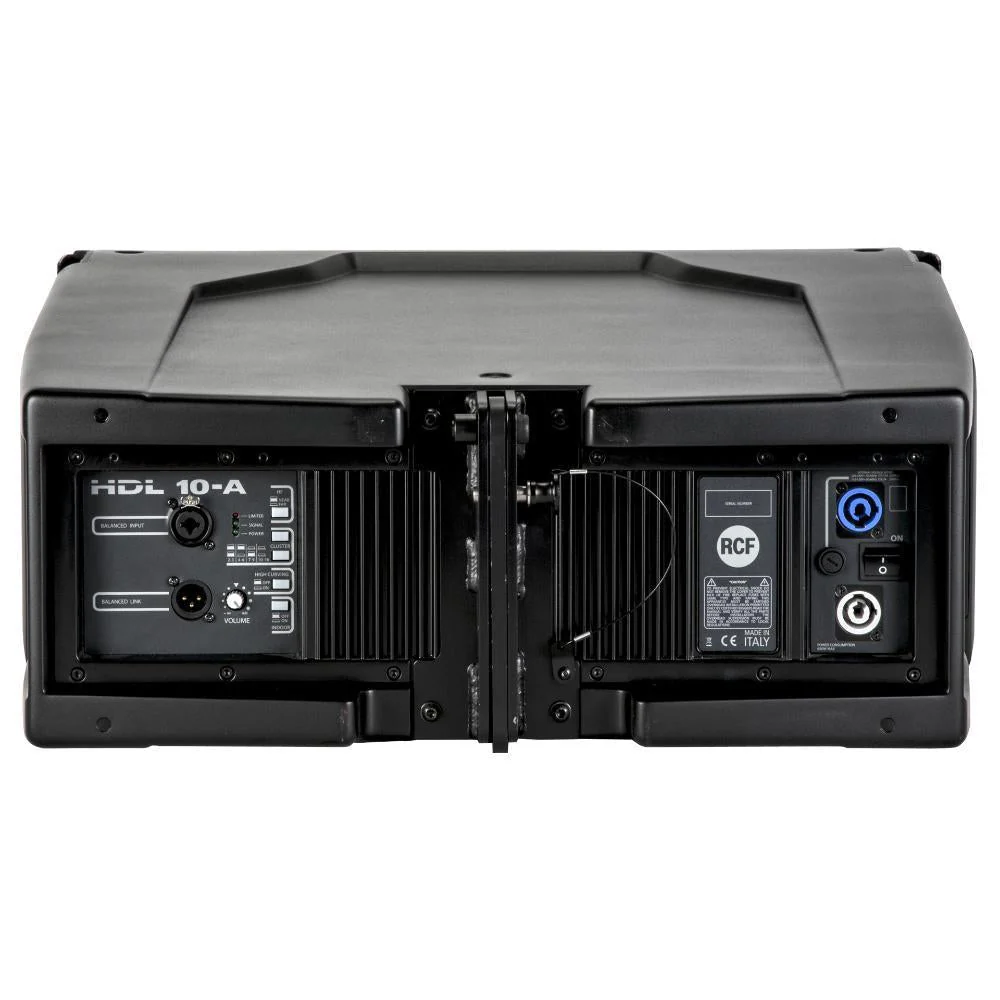

• Input section with DSP control and selectable memories
• Suitable for touring use, solid anchors for hanging
• PP composite enclosure with wood structural reinforcements

---

Specifications

• FREQUENCY RESPONSE: 65 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 133 dB
• HORIZONTAL COVERAGE ANGLE: 100°
• VERTICAL COVERAGE ANGLE: 15°
• COMPRESSION DRIVER: 1 x 2.0'''', 2.5'''' vc
• BASS SPEAKER: 2 x 8'''', 2.0'''' vc
• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR
• OUTPUT CONNECTORS: XLR
• INPUT SENSITIVITY: -2 dBu/+4 dBu
• CROSSOVER FREQUENCIES: 800 Hz
• PROTECTIONS: Thermal, RMS
• LIMITER: Soft Limiter
• CONTROLS: Cluster, HF, High curving, Indoor
• TOTAL POWER: 1400 W Peak, 700 W RMS
• TREBLE: 400 W Peak, 200 W RMS
• LOW FREQUENCIES: 1000 W Peak, 500 W RMS
• COOLING: Convection
• CONNECTIONS: VDE
• CE MARKING: And it it
• CABINET/CASE MATERIAL: PP Composite
• PHYSICAL EQUIPMENT: Rigging flyware
• HANDLES: 2 Side
• RACK: Steel
• COLOR: Black
• HEIGHT: 294 mm / 11.57 inches
• OVERALL WIDTH: 569 mm / 22.4 inches
• DEPTH OF PACKAGE: 434 mm / 17.09 inches
• PACKAGE WEIGHT: 20.4 kg / 44.97 lbs
