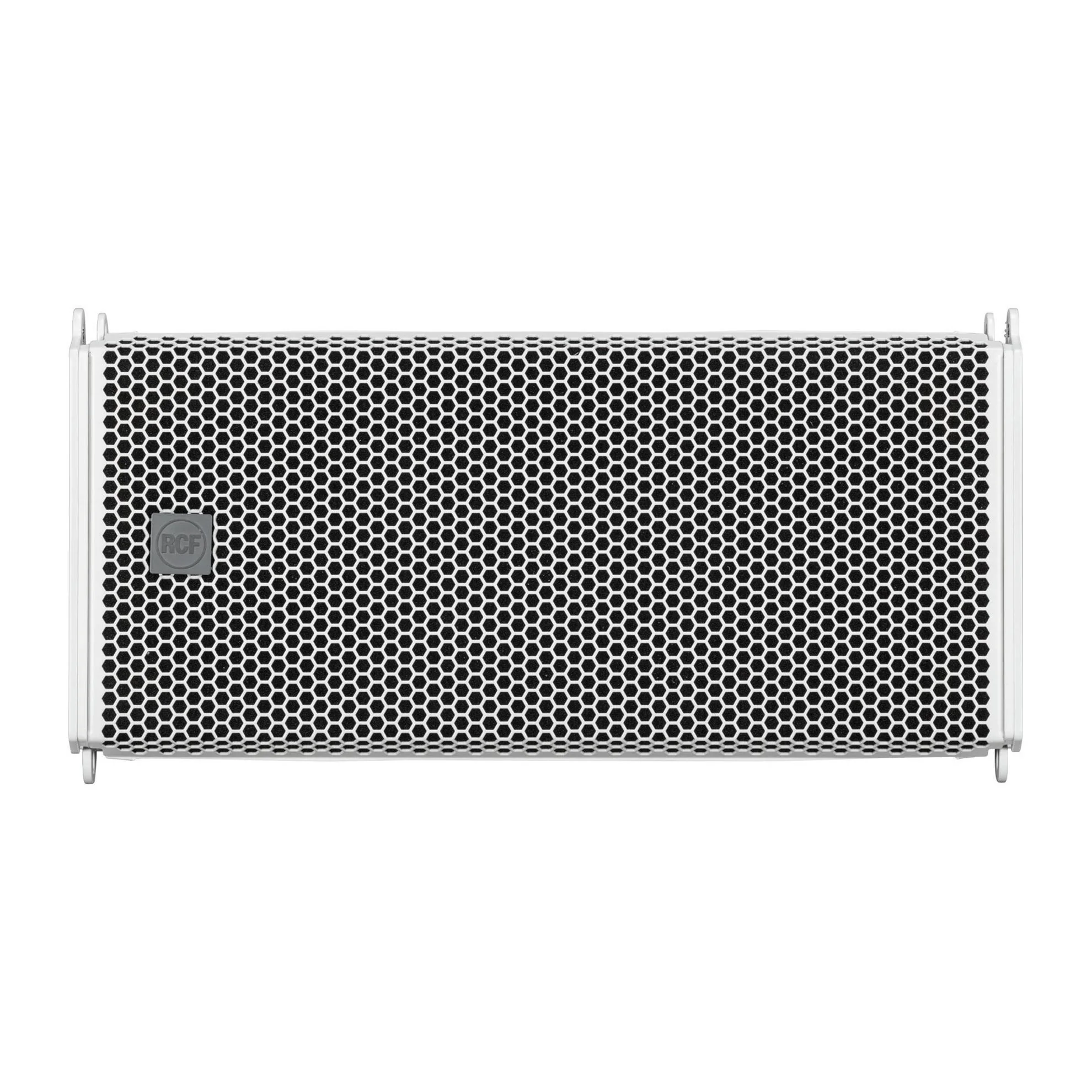

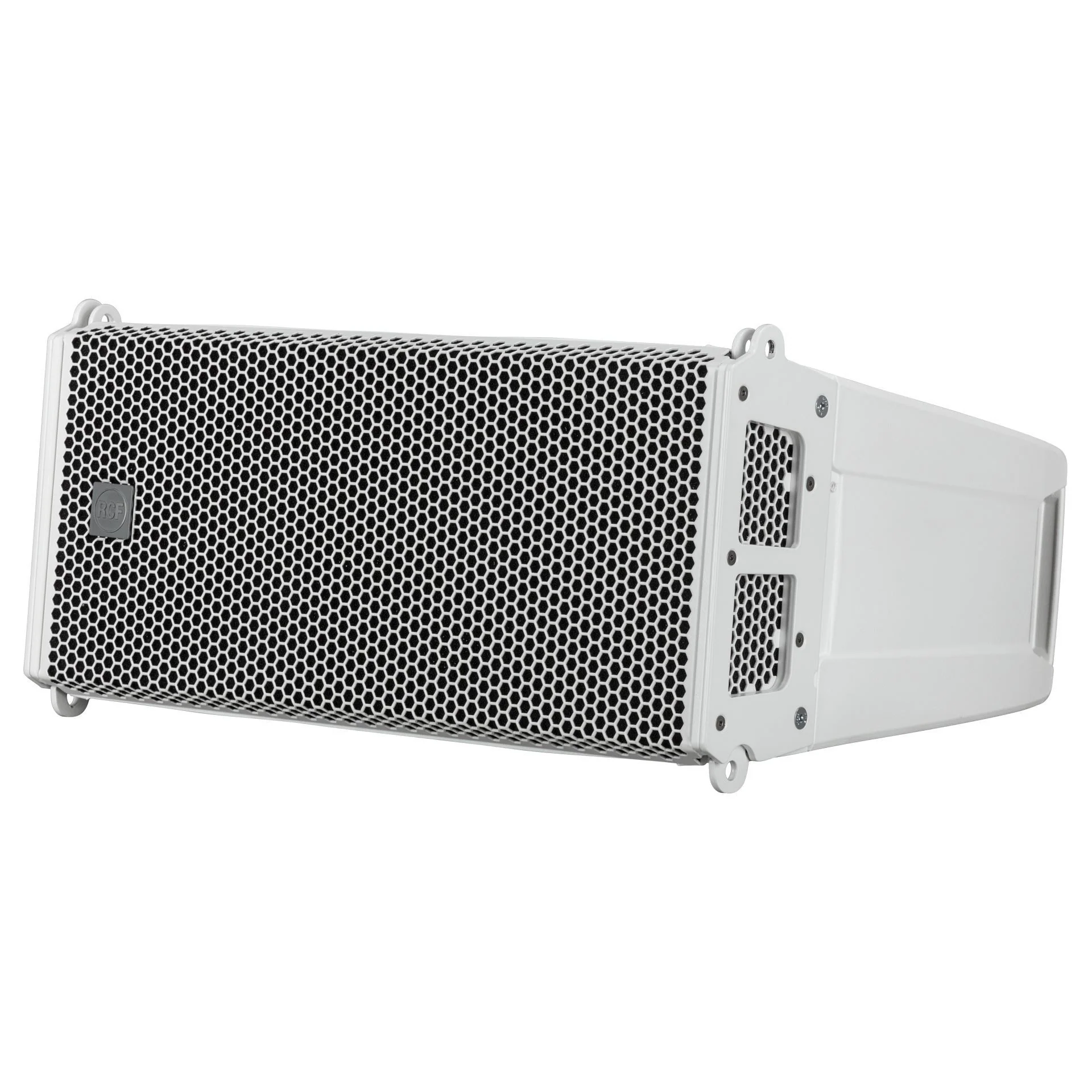

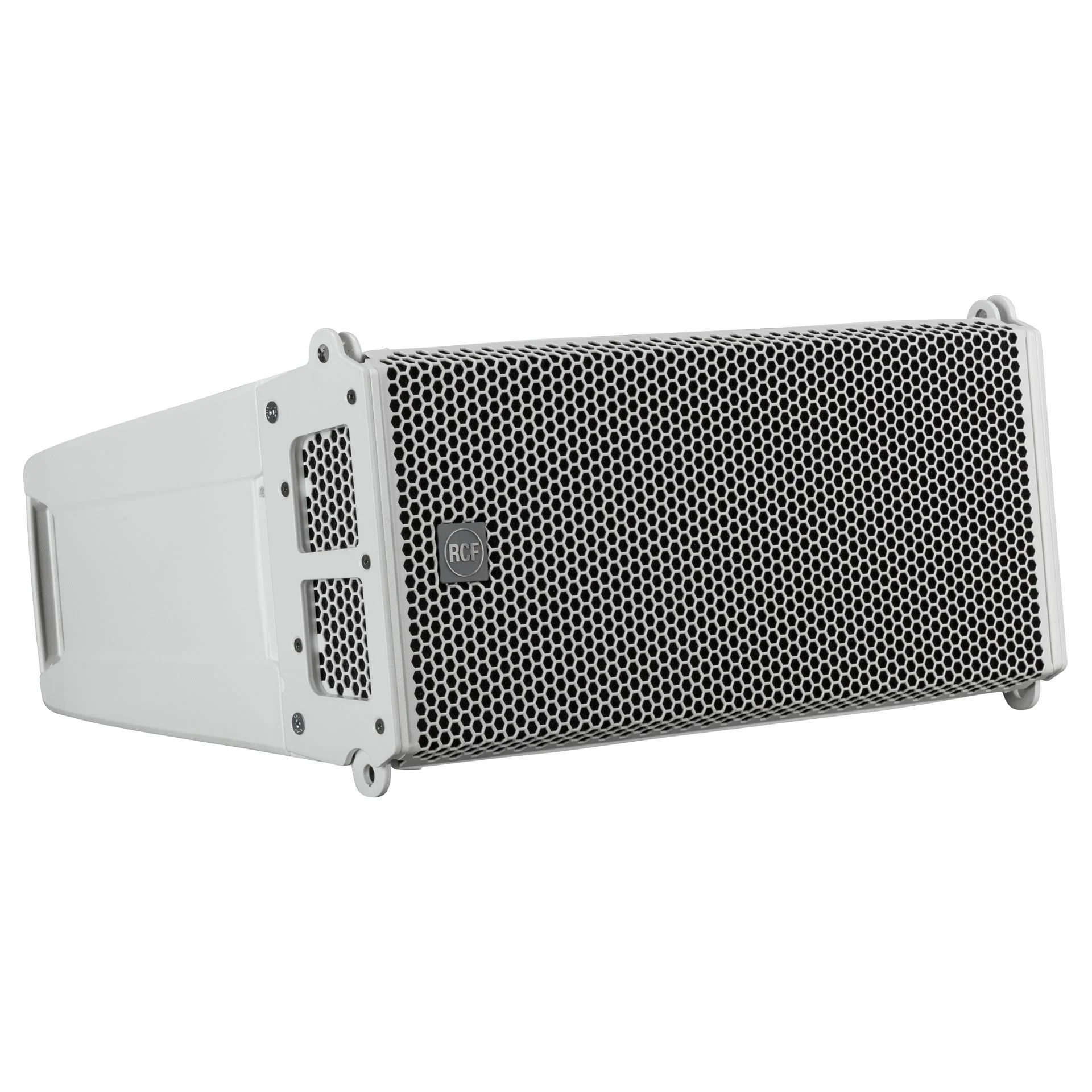

RCF HDL6AW Active 2-Way Line Array Module 2x 6.5in in White (HDL6AW)
A 1400W class D two channel amplifier drives the system. A powerful DSP processes the sound including frequency division (crossover), phase correction, limiting and protection.
The system features state-of-the-art RCF drivers - two powerful 6.0 "woofers for solid bass reproduction, along with a high-power 1.7" voice coil compression driver coupled to an accurate waveguide. 100 ° x 10 °, which achieves great vocal clarity with high definition and incredible dynamics. The HDL 12-AS is the ideal flying bass complement to the HDL 6-A line array system.
Features
- 1400W two-way digital amplification
- 131 dB SPL Max
- Neodymium compression driver with 1.7 "voice coil
- 2 x 6.0 "neodymium high-power woofers
- 48 kHz 32-bit floating point DSP processing
- Symmetrical design
- Extremely low weight
- FIRPHASE processing
Specifications
- FREQUENCY RESPONSE: 65 Hz ÷ 20000 Hz
- MAX SPL @ 1M: 131 dB
- HORIZONTAL COVERAGE ANGLE: 100°
- VERTICAL COVERAGE ANGLE: 10th
- COMPRESSION DRIVER: 1 x 1.0 '''' neo, 1.75 '''' vc
- BASS SPEAKER: 2 x 6.0 '''' neo, 2.0 '''' vc
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XLR
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: +4 dBu
- CROSSOVER FREQUENCIES: 900 Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Soft Limiter
- CONTROLS: HF correction
- TOTAL POWER: 1400 W Peak, 700 W RMS
- TREBLE: 400 W Peak, 200 W RMS
- LOW FREQUENCIES: 1000 W Peak, 500 W RMS
- COOLING: Convection
- CONNECTIONS: Powercon IN / OUT
- CE MARKING: And it it
- CABINET/CASE MATERIAL: PP Composite
- PHYSICAL EQUIPMENT: Array fittings
- HANDLES: 2 back
- RACK: Steel
- COLOR: White
- HEIGHT: 237 mm / 9.33 inches
- OVERALL WIDTH: 470 mm / 18.5 inches
- DEPTH OF PACKAGE: 377 mm / 14.84 inches
- PACKAGE WEIGHT: 11.6 kg / 25.57 lbs
