For smaller to medium venues or temporary sound reinforcement setups that require serious power with a professional edge, look no further than this compact powerhouse.

Try selecting our D-XSUB “BOOST” or “XTENDED LF” low frequency processing settings, turn up the volume, and watch the eyes widen and jaws drop. All this in a small, easy to install enclosure.

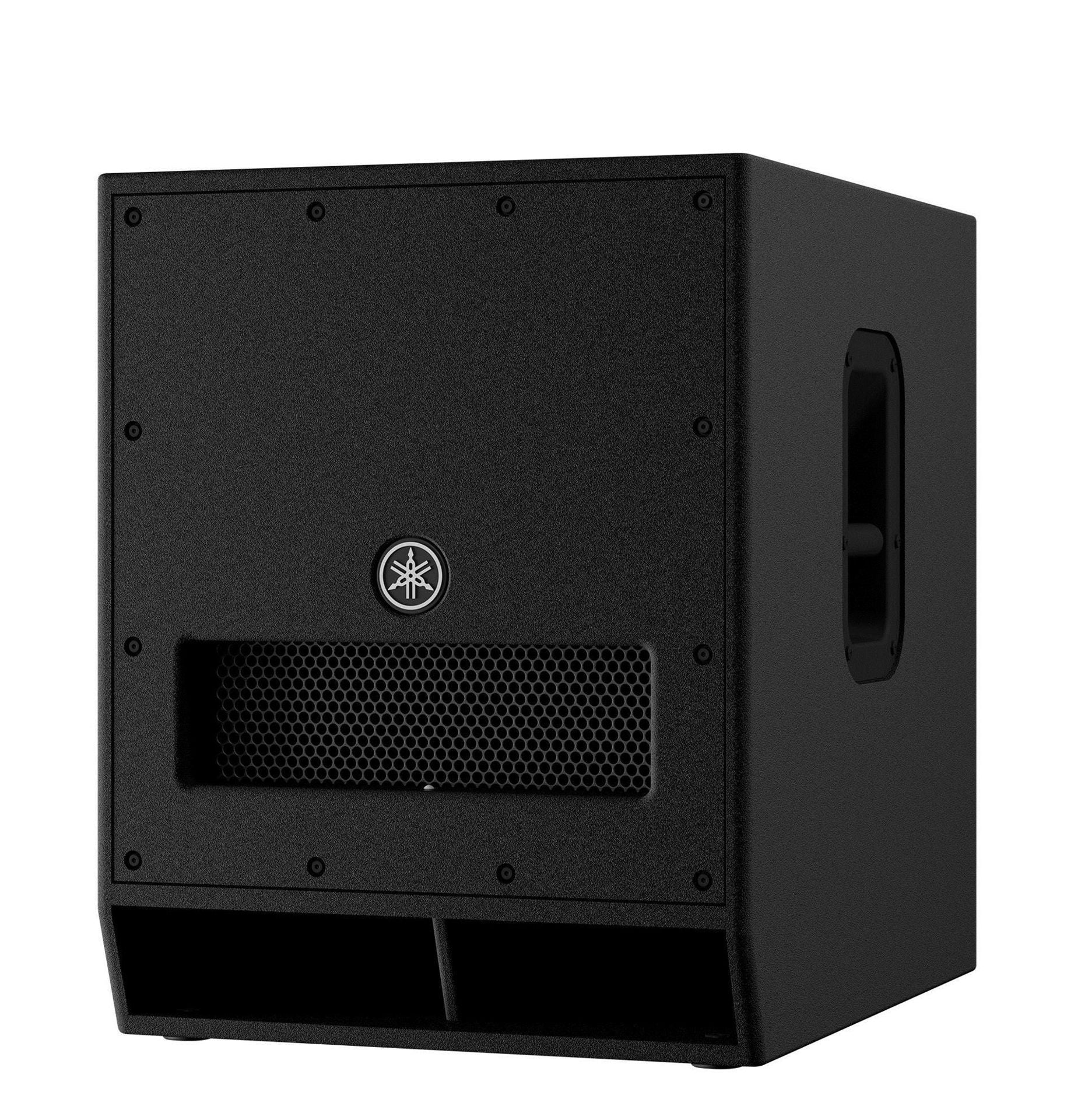

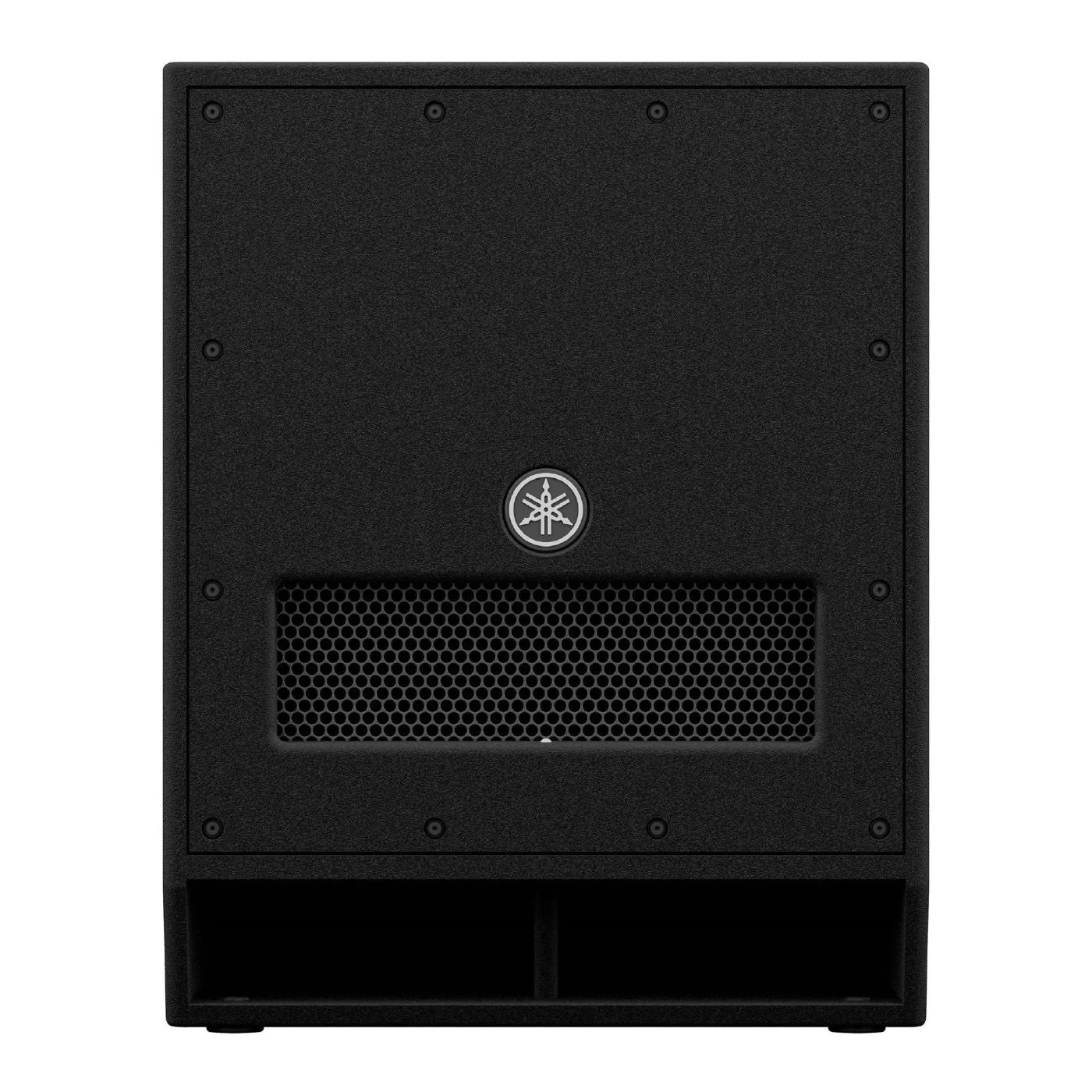

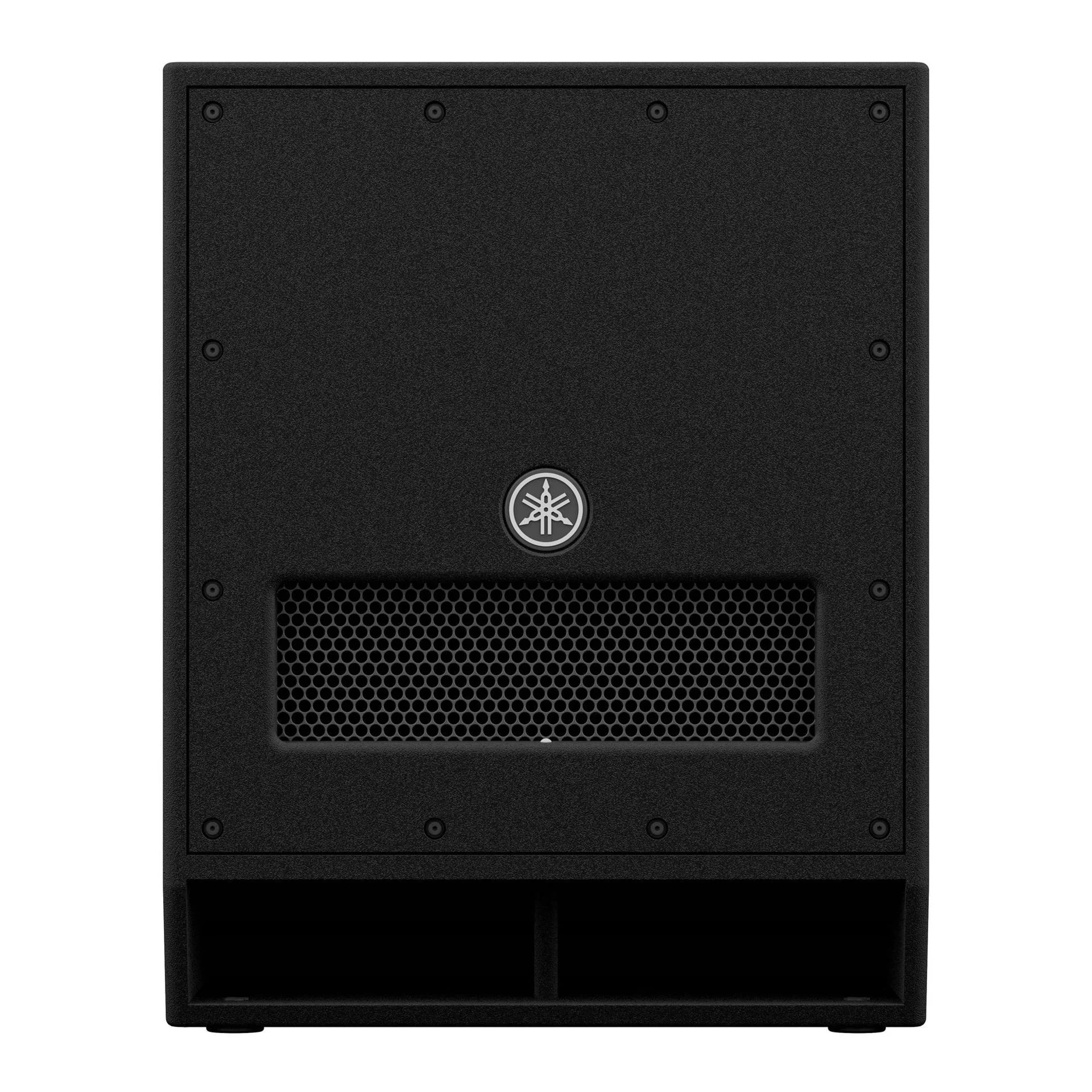

• 15" powered subwoofer with 1020W class-D power amplifierHigh-output 15" woofer with a band-pass design cabinet for superior bass response and a maximum 135dB SPL
• 40Hz-150Hz frequency range is ideal for small- to medium-sized rooms
• Built-in D-XSUB processing allows you to extend the frequency response even lower
• Plywood cabinet is durable and acoustically optimized for maximum sound quality
• Cardioid mode for bass management onstage
• Selectable X-OVER (80/100/120 Hz)
• M20 and Ø35 mm dual pole sockets
• Optional Speaker Wheels (SPW-1) and Speaker Cover(SPCVR-DXS152)

Product Specifications

Speaker Type	15" powered subwoofer, Band-pass type
Frequency Range (-10dB)	40 Hz - 150 Hz
Components	15" cone, 2.5" voice coil
Output Power	Dynamic:1020W / Continuous: 800W
Maximum Output Level	135 dB SPL

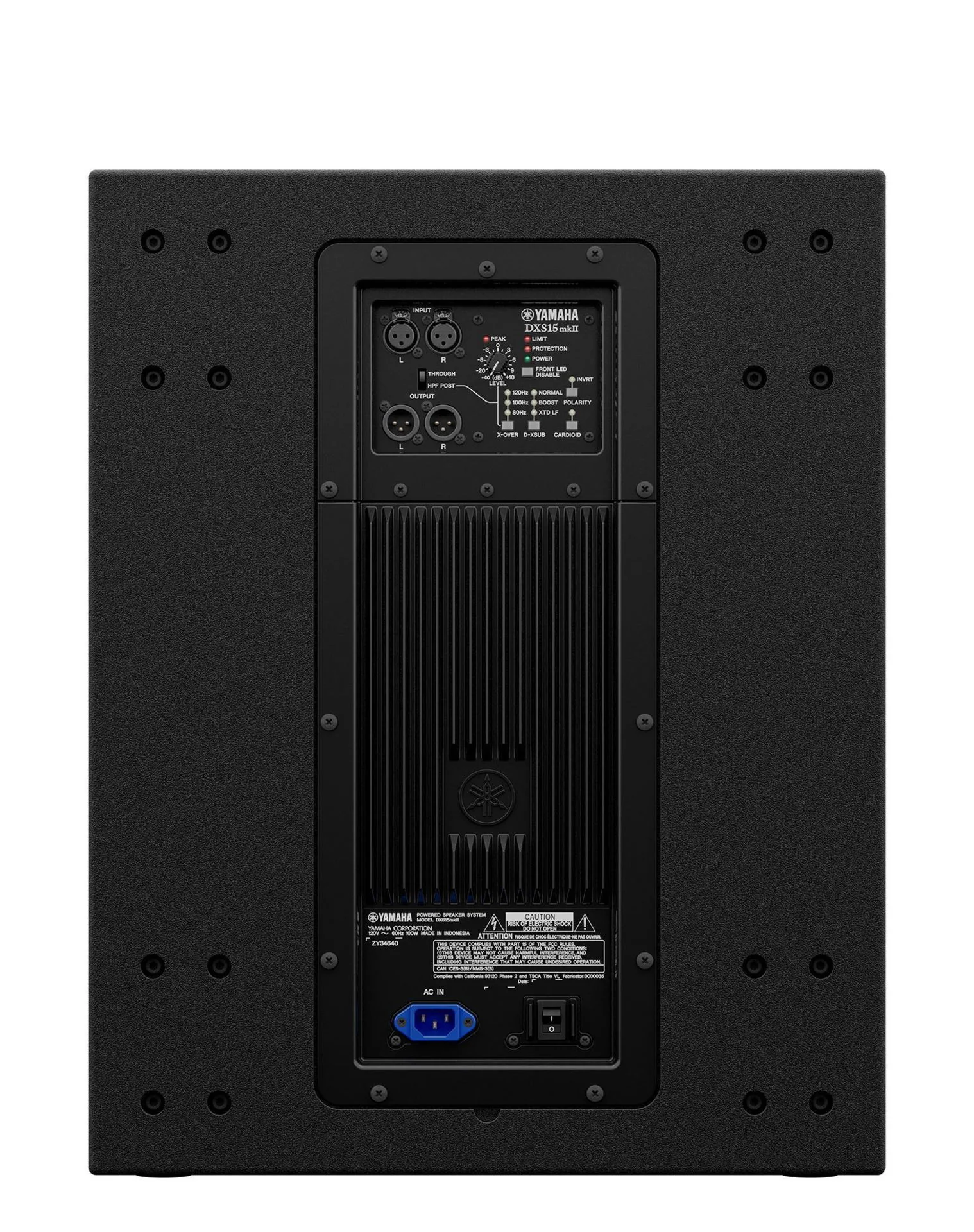

I/O Connectors	INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
Processors	D-XSUB: BOOST, XTD LF, NORMAL
Cooling	Natural convection
Power Requirements	100V – 240V 50Hz/60Hz
Power Consumption	100W
Pole Socket	35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Width	480 mm (18.90”)
Height	611 mm (24.06”)
Depth	614 mm (24.17”)
Weight	36.0 kg (79.4lbs)
Others	Meranti Plywood Durable Polyurea Coating Black
