The Style Insertion DSP now has twice the performance, for even better sound quality. New Style Dynamics controls let you control the energy and dynamics of each style for a more dynamic and refined performance. Level up your music with the new PSR-SX arranger workstation - where innovation and inspiration meet! More than 1,500 Voices and 500 Styles Unleash your musical creativity with the PSR-SX920! This powerhouse Arranger Workstation boasts over 1,500 high-quality Voices and 575 diverse Styles, all equipped with One Touch Settings to instantly ignite your performance. Use a Live Controller to adjust the energy and dynamics of any Style with Style Dynamics Control. And with double the Style Insertion DSP power from the previous model, new and familiar Styles, all enhanced with the latest Voices and effects, sound more refined, providing an elevated musical experience. For the first time in an SX-Series instrument, the PSR-SX920 includes Super Articulation2 (S.Art2) technology. Without even thinking about it, S.Art2 delivers unprecedented realism to Voices with lifelike instrument articulations added seamlessly to your performance. Plus, with the new Super Articulation Plus Voices (S.Art+), you can switch between different instrument articulations with the touch of a button. With the newly added Crossfade Portamento, experience smooth, fluid pitch transitions, adding expressive depth to your music. For ultimate performance flexibility, the PSR-SX920 includes 8 assignable panel buttons, 6 home screen shortcuts and 2 Live Control knobs, giving you rapid access to your favorite functions for instant adjustments. Elevate your music with the PSR-SX920—where innovation meets inspiration!

Features

• L. Controls & A. Buttons During a performance, quick access to key features is crucial. With 8 assignable panel buttons and 6 home screen shortcuts, you can recall your favorite functions instantly with a single touch. Assign features like sound filtering or Style Dynamics Control to the Live Control knobs for real-time manipulation on the fly.
• Chord Looper The new panel buttons provide quick access to recording and playing back chord sequences in realtime. Whether you wish to free up your left hand to play full piano, build up sections of a song or practice a difficult piece of music, the Chord Looper enables you to store up to 8 chord sequences in each bank for easy access during your performance. You can create an unlimited number of banks with your own chord progressions, or choose from a range of built-in presets.
• Bluetooth® Audio Wirelessly connect your Bluetooth device to your PSR-SX and play along with your favorite songs or record everything you hear using the built-in audio recorder.
• Master EQ Tailor the output of your PSR-SX to perfection with Master EQ. Choose from five presets or create and save your own custom settings by adjusting the eight-band EQ and choosing Peak/Dip or Shelving options for the highest and lowest bands.
• Smart Chord Smart Chord allows you to perform with accompaniment from the Styles feature simply by playing the root note (the very bottom note) of a chord.

  ---

Specifications

Control Interface Keyboard Number of Keys: 61 Type: Organ (FSB), Initial Touch Touch Response: Normal, Soft1, Soft2, Hard1, Hard2 Other Controllers Joystick: Yes (Assignable) Control Knobs: 2 (Assignable) Assignable Buttons: 6 + 2 (With LED Indicator) Display Type: TFT Color Wide VGA LCD Size: 800 x 480 dots (7 inch) Touch Screen: Yes Colour: Yes Language: English, German, French, Spanish, Italian, Chinese Panel Language: English, Chinese

---

Voices Tone Generation Tone Generating Technology: AWM Stereo Sampling, AEM technology Polyphony Number of Polyphony (Max.): 128 Preset Number of Voices: 1,587 Voices + 63 Drum/SFX Kits + 480 XG Voices Featured Voices: 12 S.Articulation2, 15 S.Articulation+, 340 S.Articulation, 55 OrganFlutes, 82 MegaVoice Expandability Expansion Voice: Yes (approx. 2 GB)

---

Effects Types Reverb: 59 Preset + 30 User Chorus: 107 Preset + 30 User DSP: 358 Preset (with VCM) + 30 User Insertion Effect: 1-13: 358 Preset (with VCM) + 30 User Master Compressor: 5 Preset + 30 User Master EQ: 5 Preset + 30 User Part EQ: 28 Parts Vocal Harmony Number of Presets: Vocal Harmony: 54, Synth Vocoder: 20 Number of User Settings: 60 *The number is the total of Vocal Harmony and Synth Vocoder

---

Accompaniment Styles Preset Number of Preset Styles: 575 Featured Styles: 520 Pro Styles, 49 Session Styles, 6 Free Play Styles Fingering: Single, Fingered, OnBass, Multi, AI Fingered, Full / AI Full, Smart Chord Style Control: INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 Compatibility: Style File Format, Style File Format GE Expandability Expansion Style: Yes (Internal Memory) Expansion Audio Style: Yes (Internal Memory) Other Features Chord Looper: Yes Style Section Reset: Yes Style Section Change Timing: Yes Style Section Time Signature: Yes (per Section) Style Dynamics Control: Yes (with knobs / pedal) One Touch Setting (OTS): 4 for each Style

---

Songs Preset Number of Preset Songs: 1 Demo Song, 2 Preset Songs Recording Number of Songs: Unlimited (depending on USB flash memory capacity) Number of Tracks: 16 Data Capacity: Approx. 3 MB/Song Recording Function: Quick Recording, Multi Recording, Step Recording Compatible Data Format Playback: SMF (Format 0 & 1), XF Recording: SMF (Format 0)

---

Multi Pads Preset Number of Multi Pad Banks: 500 banks x 4 Pads Audio Audio Link: Yes

---

Functions Voices Harmony/Echo: Yes (with Arpeggio) Panel Sustain: Yes Mono/Poly: Yes (w/ Legato, Xfd (improved), VeloToPrtTime, FastPlayingPortamento, Velocity Limit) Voice Information: Yes Styles Style Creator: Yes OTS Information: Yes Songs Song Creator: Yes Score Display Function: Yes Lyrics Display Function: Yes Multi Pads Multi Pad Creator: Yes Registration Number of Buttons: 8 Control: Registration Sequence, Freeze Playlist Number of Records: 2,500 (max.) Records per Playlist file (add search/sort function improved) Search: Registration Bank Audio Recorder/Player Recording Time (max.): 80 minutes/Song Recording: .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate,128/256/320 kbps, mono/stereo) Playback: .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo) Time Stretch: Yes Pitch Shift: Yes Vocal Cancel: Yes Demo/Help Demonstration: Yes Overall Controls Metronome: Yes Tempo Range: 5 - 500, Tap Tempo Transpose: -12 – 0 – +12 Tuning: 414.8 – 440 – 466.8 Hz Octave Button: -3 -0- 3 Scale Type: 9 Preset Sub Scale Setting: Yes Miscellaneous Direct Access: Yes Text Display Function: Yes Wallpaper Customization: Yes Display Out: Yes (via USB to DEVICE) Bluetooth: Yes (depends on destination)

---

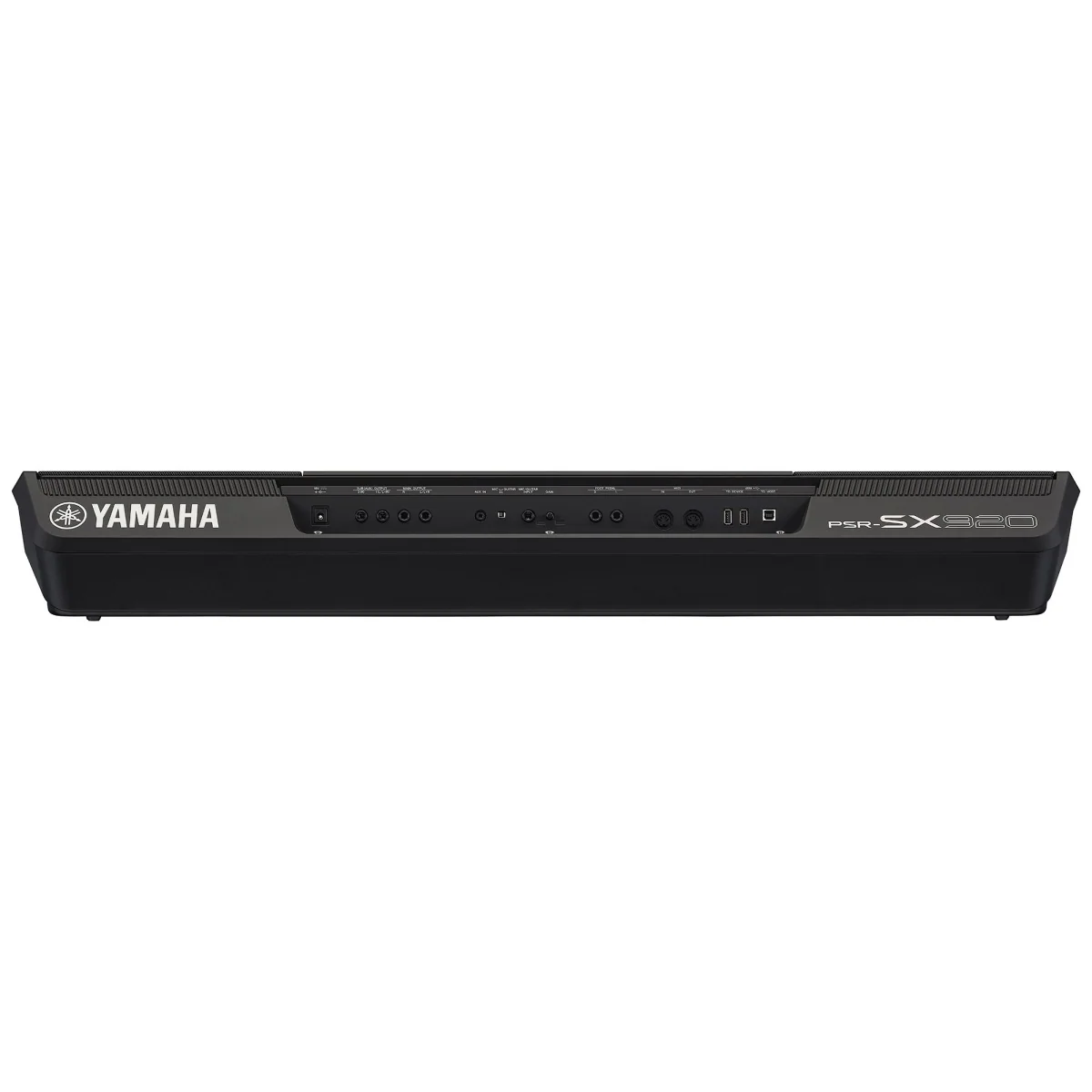

Storage and Connectivity Storage Internal Memory: Approx. 4 GB max. External Drives: USB Flash Memory (via USB to DEVICE) Connectivity Headphones: Yes Microphone: Mic/Guitar MIDI: IN/OUT AUX IN: Stereo mini LINE OUT: L/ L+R, R, Sub 1/2 FOOT PEDAL: Assignable, Sw or Vol x2 USB TO DEVICE: USB 2.0 ×2 USB TO HOST: USB 2.0 ×1

---

Amplifiers and Speakers Amplifiers: (15 W+10 W) x2 Speakers: [13 cm FSP+2.5 cm, (Dome type)] x2

---

Power Supply Power Supply: PA-300C or an equivalent recommended by Yamaha Power Consumption: 24 W Auto Power Off Function: Yes

---

Accessories Included Accessories: Owner's Manual, Music Rest, AC Adaptor (may not be included depending on your area. Check with your Yamaha dealer.)
