This set is Perfect for stage or studio, this selection of dynamic mics features exclusive Audix VLMTM capsule technology offering accurate sound reproduction in very high SPL applications. Mic clips, mounts and rugged aluminum carrying case are included.

• Professional set of 5 drum mics for stage or studio
• Mics work in tandem to replicate each drum accurately and independently
• Easy to set up and position

CLOSE MIKING The D6 for kick drum and the i5 for snare are considered must haves for every drummer. The kick and snare are considered the core of any drum kit and the foundation for every groove. Close miking insures that they will be captured in the mix. If either the kick or the snare is unable to be heard, there is simply no groove. The D2 and D4 are also industry standards for toms and fl oor toms. Being high SPL\ dynamic microphones, the i5, D2, D4 and D6 excel at “close miking”. These four microphones, in conjunction with this miking technique, are guaranteed to capture the attack and percussion sound of each drum. Also, by having the mic close to the source of the sound, it helps to isolate and control the sound of each drum. The DP5A allows for total control of your drum sound on stage or in the studio. USER TIPS D6 - Kick Drum: To position the D6, a good starting point is a few inches inside the port of the front head with the mic pointing off -center and not directly at the beater. For more attack, move the mic closer towards the beater. For more bass, pull the mic farther away from the beater. The STANDKD is a great accessory to help achieve the perfect position for the D6. i5 - Snare: A good starting point is two inches above the rim with the mic pointing towards the center of the head. For more “rim” sound, pull the mic back closer to the rim. For more resonance and depth of fi eld, pull the mic further away from the head. The trick is to fi nd the right balance between resonance and attack while still controlling bleed from the other drums. D2 / D4 - Floor Toms: Place the mic about two inches above the head and point the mic across the head towards the center of the drum. This is the best position to capture the fundamental resonance and decay of the drum with minimal ring. Note that the DCLAMP or DFLEX mounts are available in order to attach the mics to hand percussion instruments or non-conventional rims.

Audix Microphones - Essential Drum Miking Part 1 - Chris Denogean

Audix Microphones - Essential Drum Miking Part 2 - Chris Denogean

Specifications

---

Dynamic VLM Type B

• Frequency Response 50 Hz - 16 kHz
• Polar Pattern Cardioid
• Output Impedance 150 ohms
• Sensitivity 1.5 mV / Pa @ 1k
• Maximum SPL 140 dB
• Off -axis rejection 23 dB
• Power Requirements None
• Materials / Finish Zinc Alloy / Black Finish
• Product Weight 250 g / 8.8 oz
• Product Length 141.5 mm / 5.6 in

---

Dynamic VLM Type B

• Frequency Response 68 Hz - 18 kHz
• Polar Pattern Hypercardioid
• Output Impedance 280 ohms
• Sensitivity 1.2 mV / Pa @ 1k
• Maximum SPL 144 dB
• Off -axis rejection 30 dB
• Power Requirements None
• Materials / Finish Black Hard Coat
• Product Weight 250 g / 8.8 oz
• Product Length 100 mm / 3.9 in

---

Dynamic VLM Type D

• Frequency Response 40 Hz - 18 kHz
• Polar Pattern Hypercardioid
• Output Impedance 280 ohms
• Sensitivity 1.4 mV / Pa @ 1k
• Maximum SPL 144 dB
• Off -axis rejection >20 dB
• Power Requirements None
• Materials / Finish Black Hard Coat
• Product Weight 128 g / 4.5 oz
• Product Length 100 mm / 3.9 in

---

Dynamic VLM Type B

• Frequency Response 30 Hz - 15 kHz
• Polar Pattern Cardioid
• Output Impedance 280 ohms
• Sensitivity 0.8 mV / Pa @ 1k
• Maximum SPL 144 dB
• Off -axis rejection >20 dB
• Power Requirements None
• Materials / Finish Machined Aluminum / Black Finish
• Product Weight 254 g / 8.9 oz
• Product Length 117 mm / 4.6 in

---

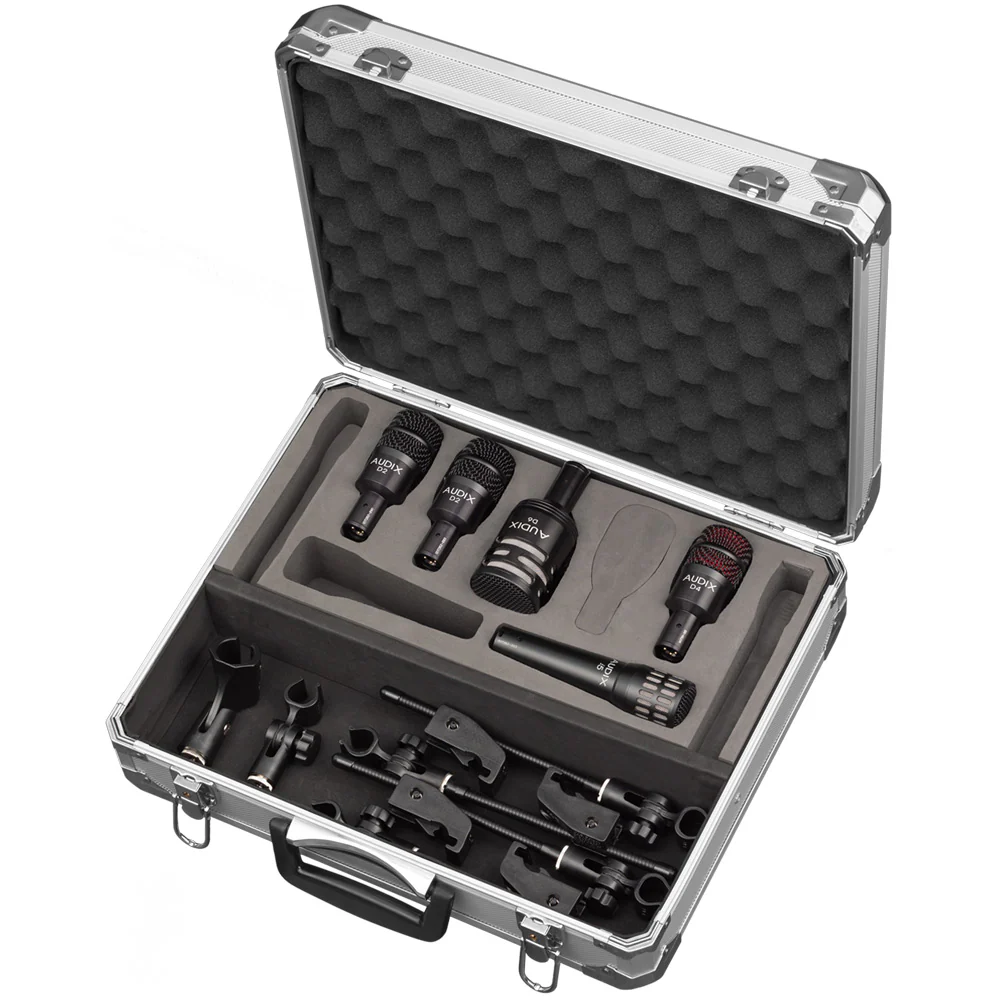

What's Included?

• Aluminum Road Case
• 1 x i5 Snare Mic
• 2 x D2 Rack Tom Mics
• 1 x D4 Floor Tom Mic
• 1 x D6 Kick Mic
• 4 x DVICE Rim Mounts
• 1 x MC1 Mic Clip
• 1 x DCLIP Mic Clip
