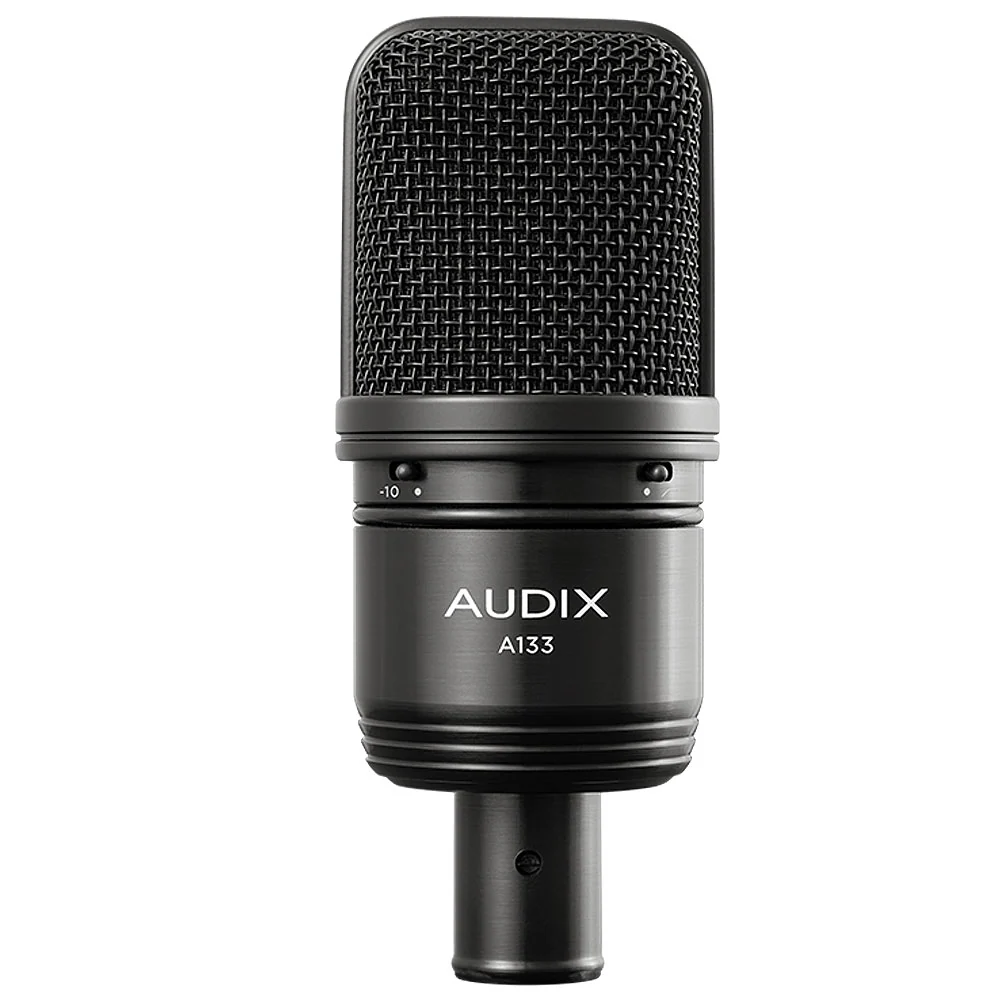

The A133 is housed in a precision-machined aluminum body, the 33 mm fixed-charge capsule features a gold-sputtered diaphragm for wide, natural frequency response. With its well-behaved cardioid polar pattern, the A133 faithfully captures the detail of the performance while rejecting room noises and other unwanted, off-axis sounds. A double woven steel mesh grille and ultra-thin acoustic foam offers exceptional pop resistance for podcasting and vocals. Behind the grille, the open-air design of the capsule mounting system allows the A133 to deliver transparent, uncolored sound. Proprietary impedance control between the capsule and circuitry ensures consistent and reliable performance across a wide range of environments. A unique and highly effective internal shock mount isolates the capsule from mechanical vibrations and touch noise, eliminating the need for a bulky external shock mount. The switchable 10 dB pad and bass roll-off ensures you’re ready for any recording or live performance situation. Offering studio performance in a road-worthy package, the A133 also comes with a protective zippered carrying case. Requires 48-52 V phantom power. For best results, the A133 should be used with a high-quality mic preamplifier and microphone cable. OPERATION AND MAINTENANCE The A133 is a low impedance microphone and should be plugged into a “mic level” input on your console, mixer, or recording device. The A133 requires phantom power and will NOT operate without phantom power voltage (48 Volts recommended) which is available on most professional mic preamps and mixing devices. If phantom power is not available on your equipment, use a phantom power supply such as the Audix APS2. Avoid plugging or unplugging the microphone from a PA system unless the channel is muted, or the volume of the system is turned down. Failure to do so may result in a loud “popping” noise which could seriously damage the speakers in the PA system or studio monitors. The A133 is manufactured to exacting specs with road worthy construction. However, the capsule is highly sensitive and should be handled with care. Avoid extreme temperatures and be sure to store your microphone in the case provided when not in use. Moisture of any kind can adversely affect the sound and performance of your microphone.

Applications • Vocals • Choir • Voiceover • Podcasting • Piano • Acoustic instruments • Drum overheads

Features

• Large 33 mm condenser capsule
• Cardioid polar pattern
• Proprietary internal shock mount
• Low noise preamp circuitry
• Switchable 10 dB pad and bass roll off
• Designed, machined & tested in the USA

Specifications

• Transducer / Capsule Technology 33 mm fixed-charge condenser / 29 mm 3.4 micron gold-sputtered diaphragm
• Frequency Response 40 Hz - 20 kHz
• Polar Pattern Cardioid
• Output Impedance 150 ohms
• Sensitivity 23 mV / Pa @ 1 kHz
• Signal to Noise Ratio 84 dB
• Maximum SPL 140 dB (150 dB with pad)
• Dynamic Range 130 dB
• Equivalent Noise Level 10 dBA
• Operating Voltage 48 V (± 4 V) Phantom
• Roll-off Filter @ 150 Hz
• Connector 3-pin XLR m
• Materials / Finish Body Machined aluminum
• Grille Steel alloy
• Product Weight 280 g / 10 oz

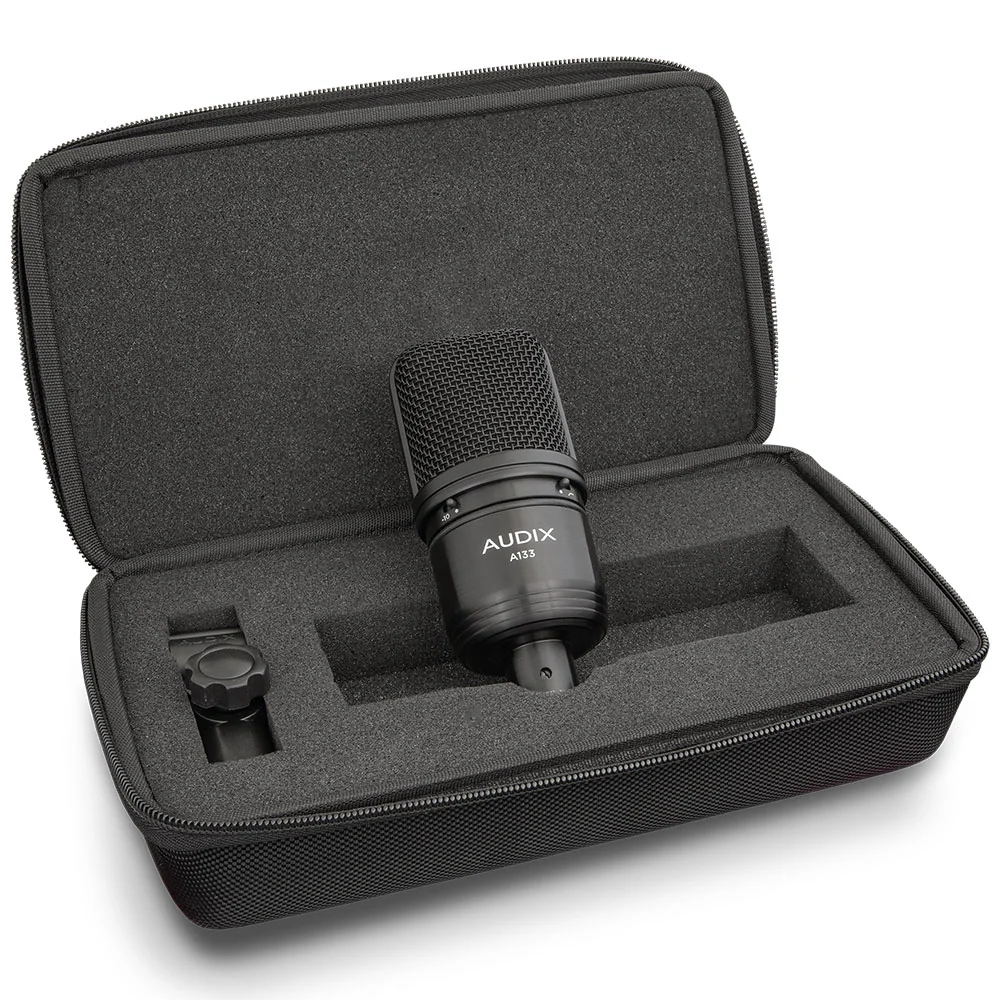

What's Included POUCHAXMED – Protective zippered carrying case DCLIP – Heavy duty nylon molded snap on clip
