Perfect for stage or studio, this combination of dynamic mics featuring exclusive Audix VLMTM capsule technology and the MicroD condenser mics offer accurate sound reproduction in very high SPL applications. Mic clips, mounts, and rugged aluminum carrying case are included.

• Professional set of 7 drum mics for stage or studio
• ADX51 condensers for overheads add spacial dimension
• Easy to set up and position Mics work in tandem to replicate each drum accurately and independently

CLOSE MIKING The D6 for kick drum and the i5 for snare are considered must haves for every drummer. The kick and snare are considered the core of any drum kit and the foundation for every groove. Close miking ensures that they will be captured in the mix. If either the kick or the snare is unable to be heard, there is simply no groove. The MicroD, known for its clarity, excellent transient response, resistance to feedback, SPL (Sound Pressure Level) handling is perfectly tailored for toms and floor toms. These premium microphones, in conjunction with a close miking technique, are guaranteed to capture the attack and percussion sound of each drum. Also, by having the mic close to the source of the sound, it helps to isolate and control the sound of each drum. OVERHEAD MIKING (ambient) The ADX51, a pre-polarized condenser microphone with a 14mm gold sputtered diaphragm, is designed with overhead applications in mind. Due to its cardioid pickup pattern, high sensitivity, and slim pencil design, the two ADX51 mics can be easily positioned overhead to provide an accurate stereo image of the entire drum kit. THE BLEND With contemporary music and the volumes typically generated on stage, it is more practical and effective to create a blended effect of close miking and a stereo image of the entire kit from overhead. The D6 will help provide the earthshaking lows and the attack of the kick; the i5 will reinforce the depth and crack of the snare; MicroD’s maximize transient attack and overtones of the toms, and the ADX51 overheads will pick up the hi-hat, cymbals, and the ambience of the entire kit. With the DP7MICRO, drums will maintain their sound integrity and critical presence, regardless of the size of the room and PA system

Specifications

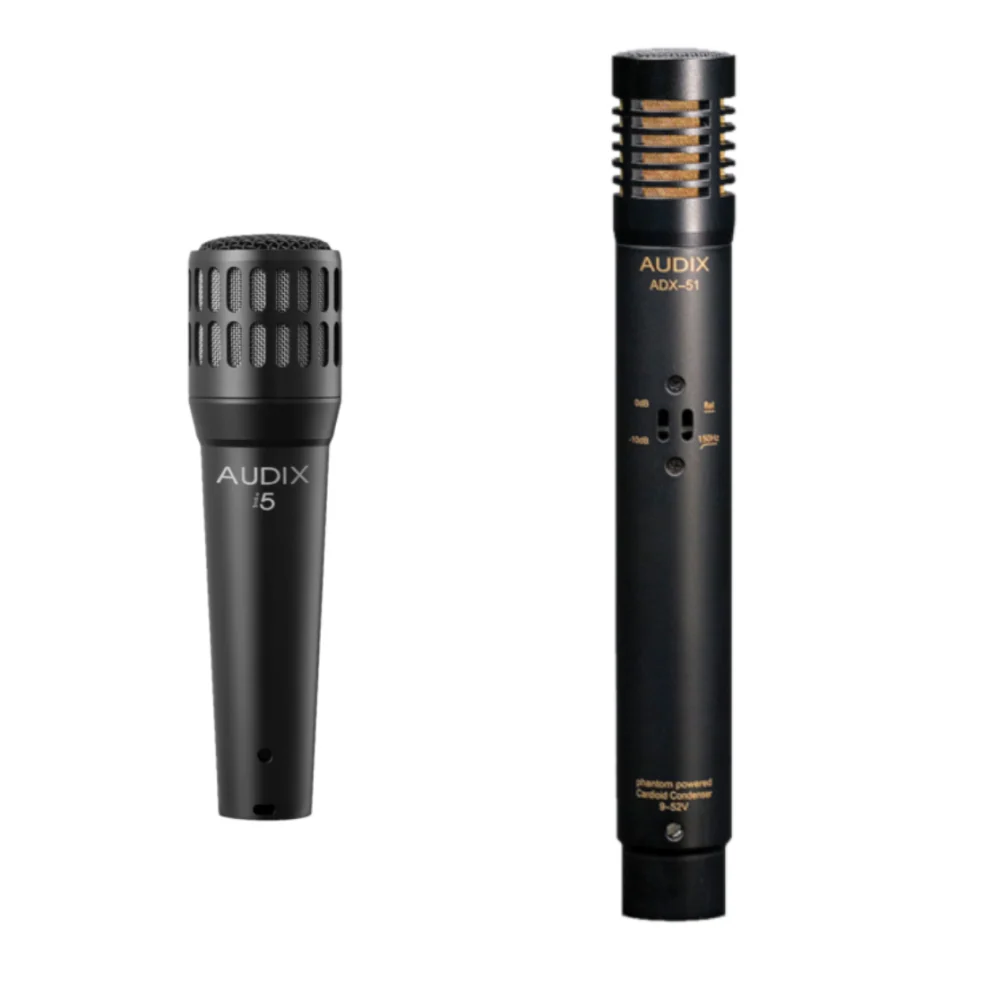

i5 Microphone

• Transducer Dynamic VLM Type B
• Frequency Response 50 Hz - 16 kHz
• Polar Pattern Cardioid
• Output Impedance 150 ohms
• Sensitivity 1.5 mV / Pa @ 1k
• Maximum SPL 140 dB
• Off -axis rejection 23 dB
• Power Requirements None
• Materials / Finish Zinc Alloy / Black Finish
• Product Weight 250 g / 8.8 oz
• Product Length 141.5 mm / 5.6 in

---

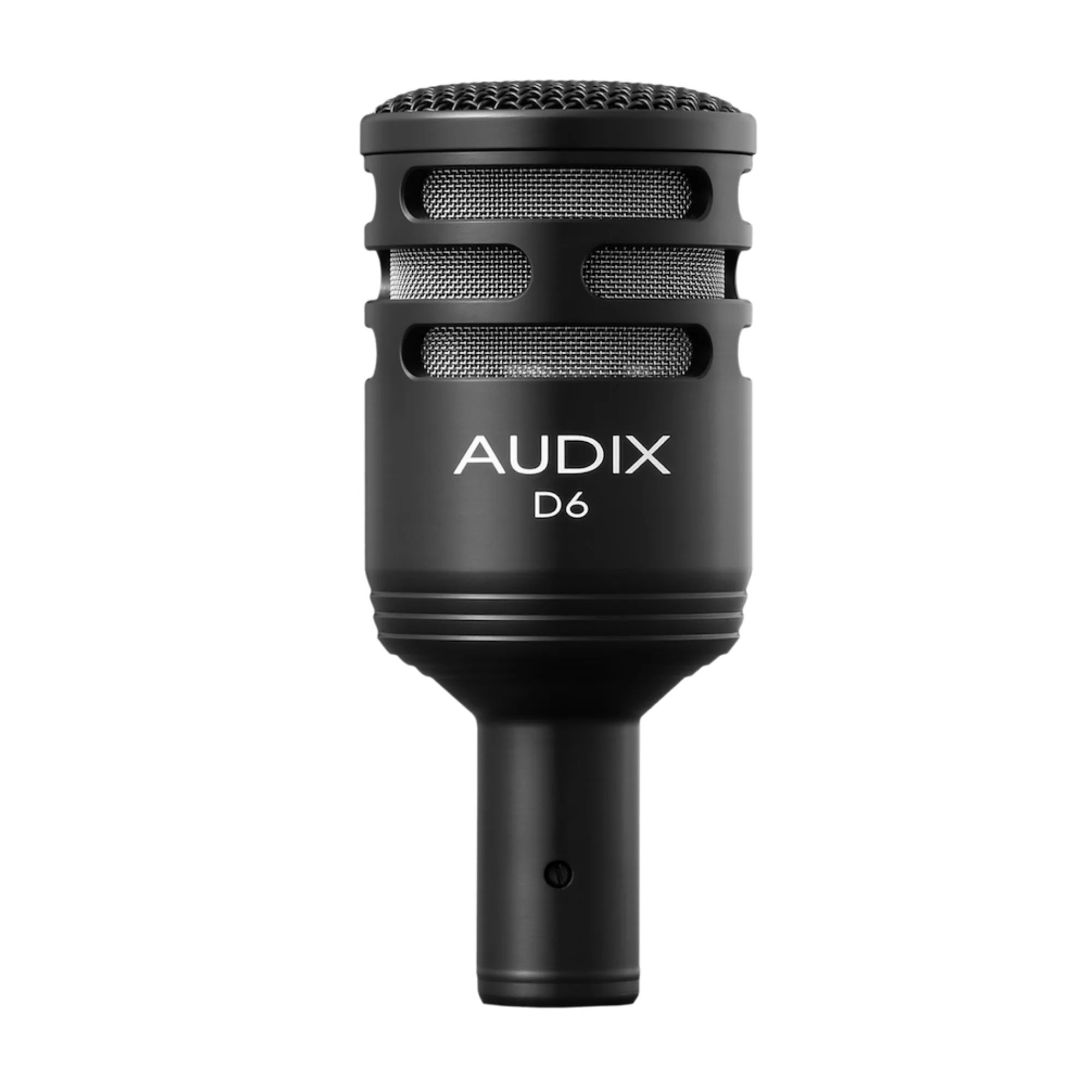

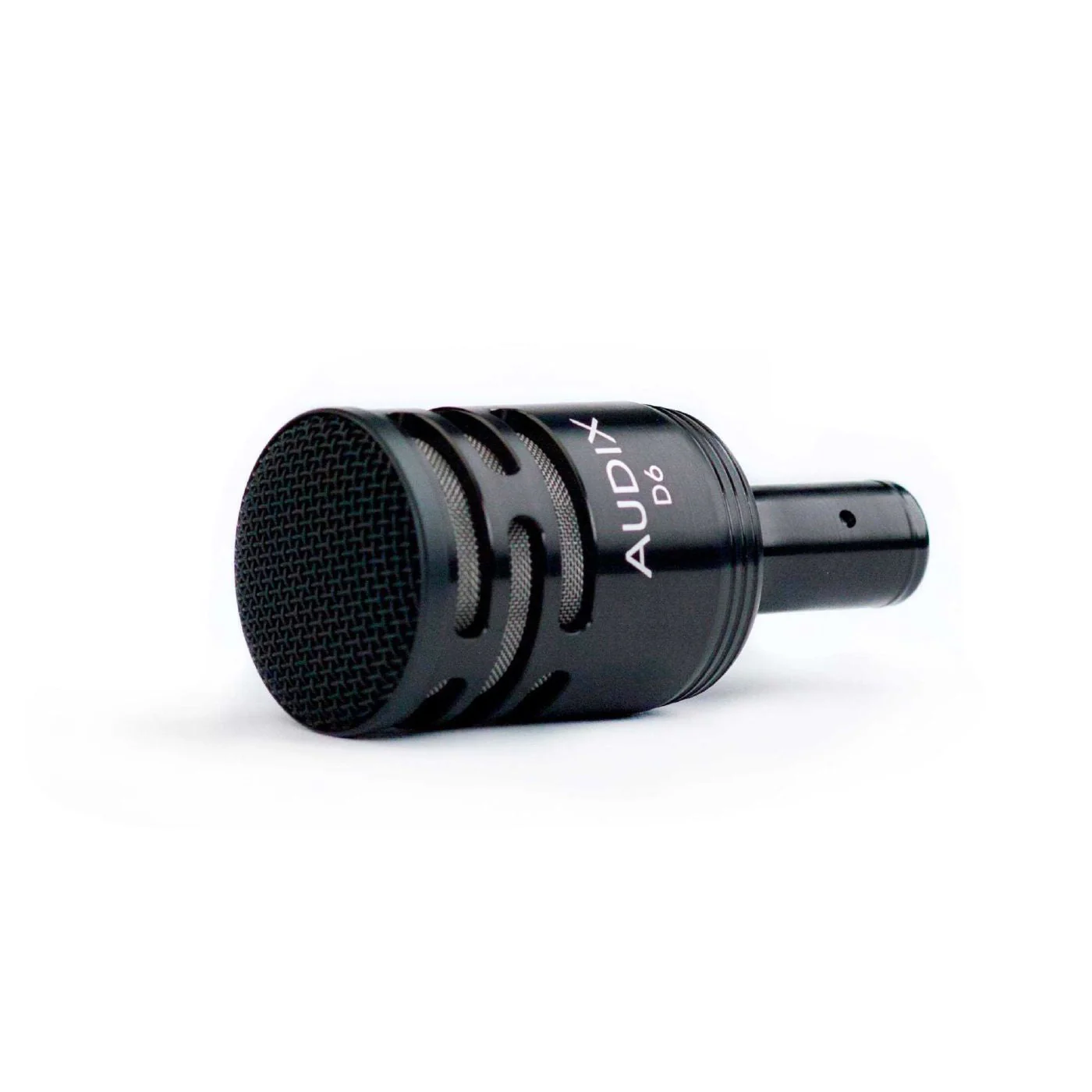

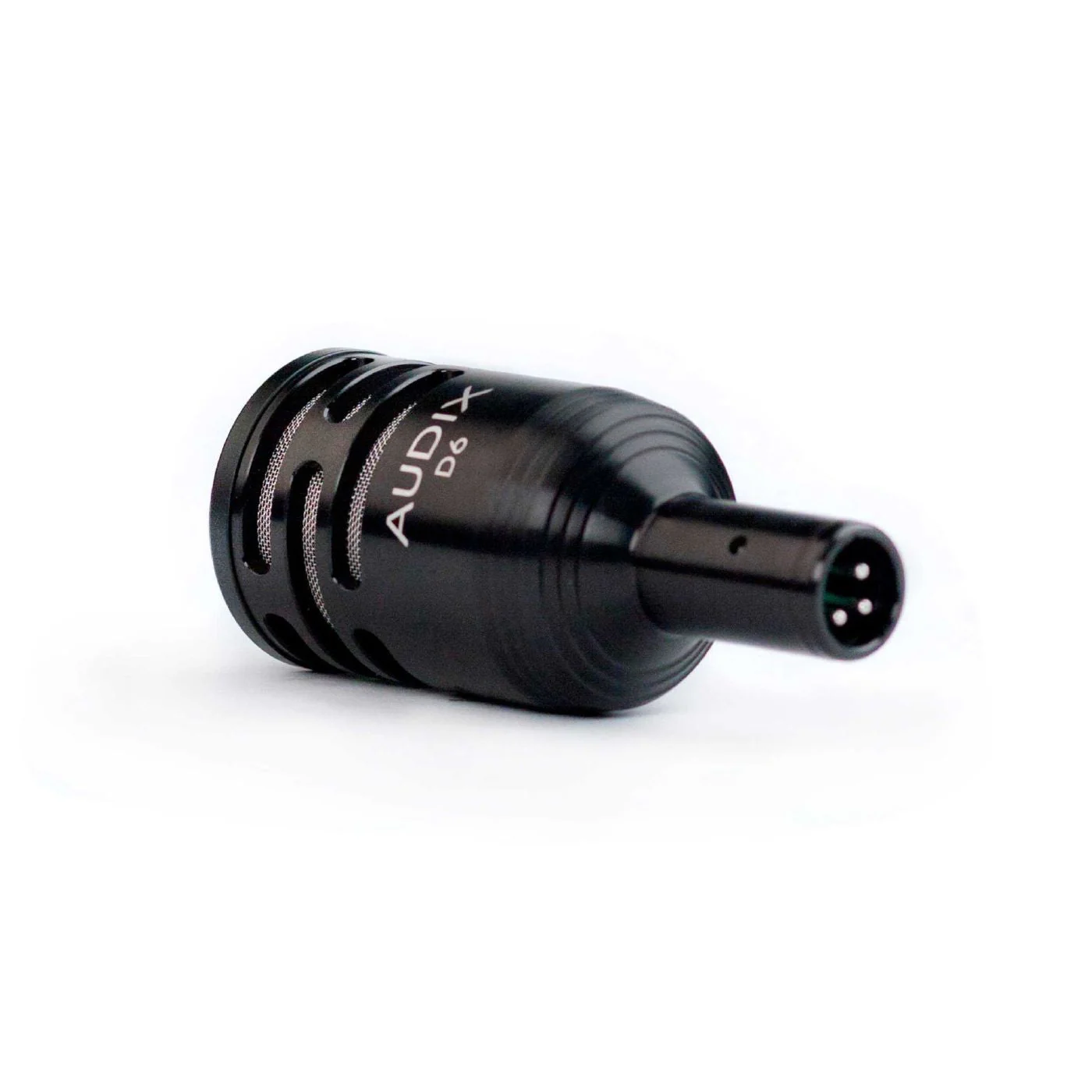

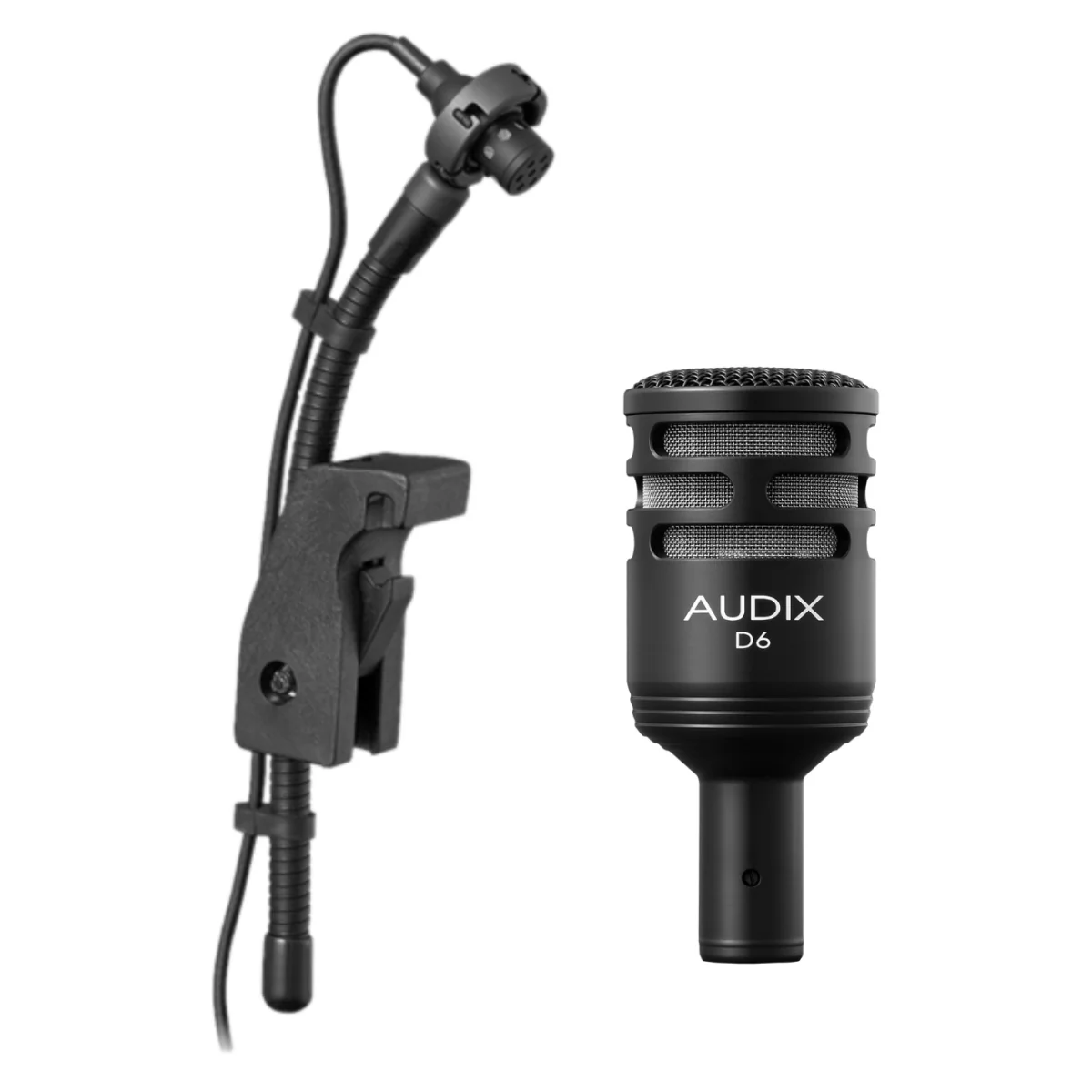

D6 Microphone

• Transducer Dynamic VLM Type B
• Frequency Response 30 Hz - 15 kHz
• Polar Pattern Cardioid
• Output Impedance 280 ohms
• Sensitivity 0.8 mV / Pa @ 1k
• Maximum SPL 144 dB
• Off -axis rejection >20 dB
• Power Requirements None
• Materials / Finish Machined Aluminum / Black Finish
• Product Weight 254 g / 8.9 oz
• Product Length 117 mm / 4.6 in

---

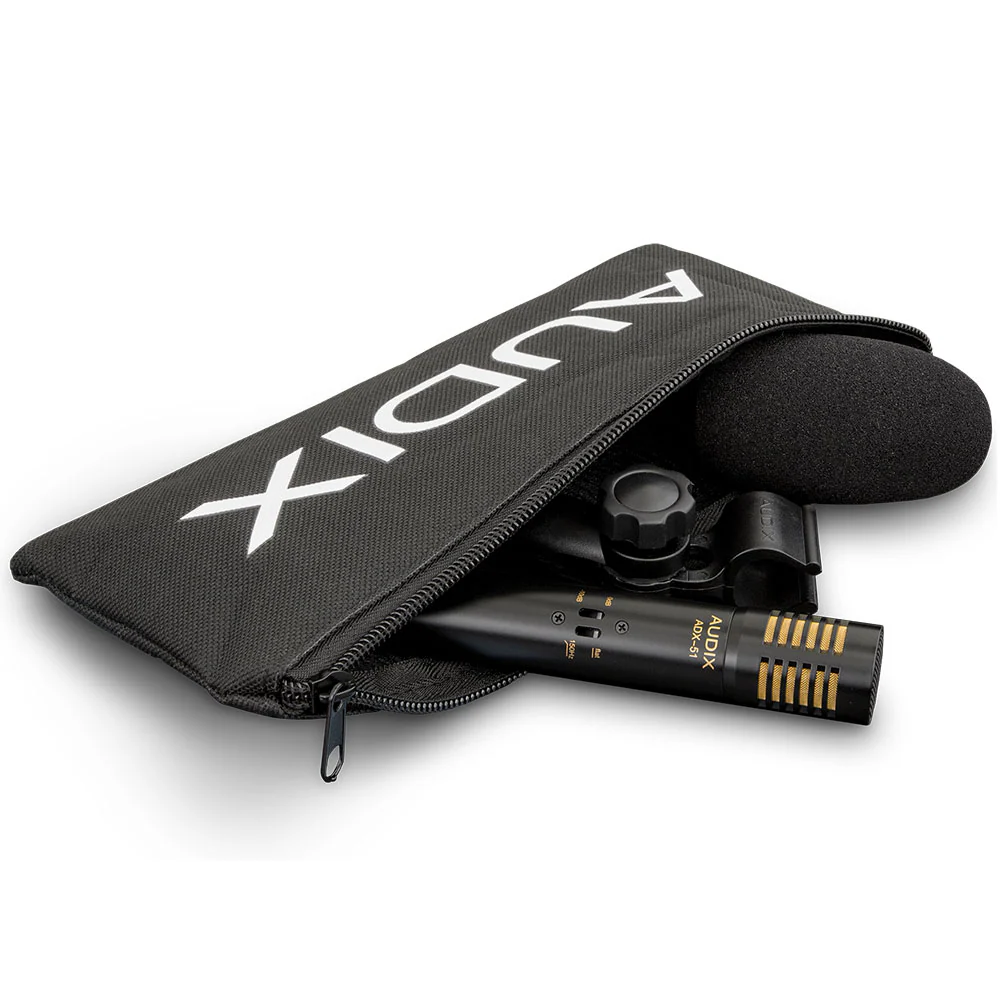

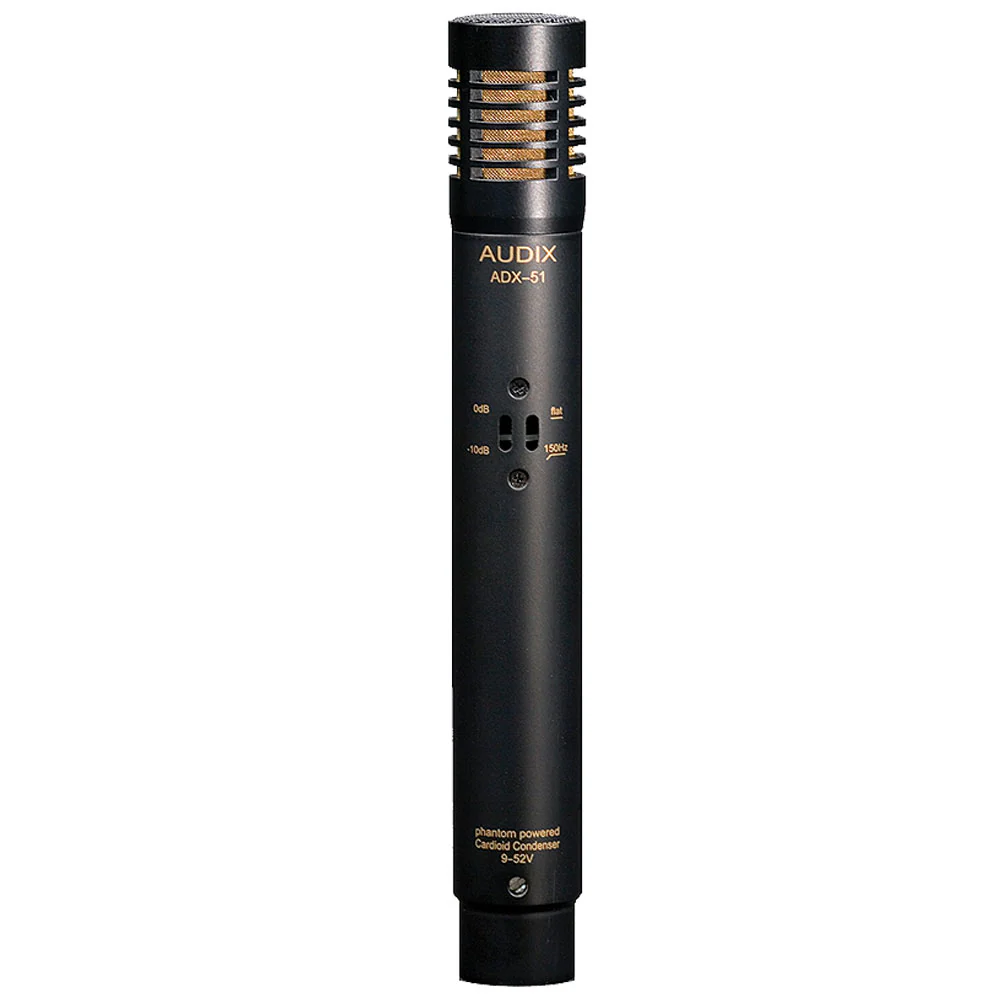

ADX51 Microphone

• Transducer Pre-Polarized Condenser
• Frequency Response 40 Hz - 18 kHz
• Polar Pattern Cardioid
• Output Impedance 100 ohms
• Sensitivity 17 mV / Pa @ 1k
• Maximum SPL 132 dB
• Off -axis rejection >15 dB
• Power Requirements 9-52 V phantom
• Materials / Finish Brass / Black Finish
• Product Weight 184 g / 6.5 oz
• Product Length 160 mm / 6.3 in

---

MicroD Microphone

• Transducer Pre-Polarized Condenser
• Frequency Response 40 Hz - 18 kHz
• Polar Pattern Hypercardioid
• Output Impedance 250 ohms
• Sensitivity 5.6mV / Pa @ 1k
• Maximum SPL >140dB
• Off -axis rejection >21dB
• Power Requirements 9-52 V Phantom
• Materials / Finish Machined Brass Capsule / Black Finish
• Product Weight 47 g / 1.6 oz
• Product Length 30 mm / 1.14 in

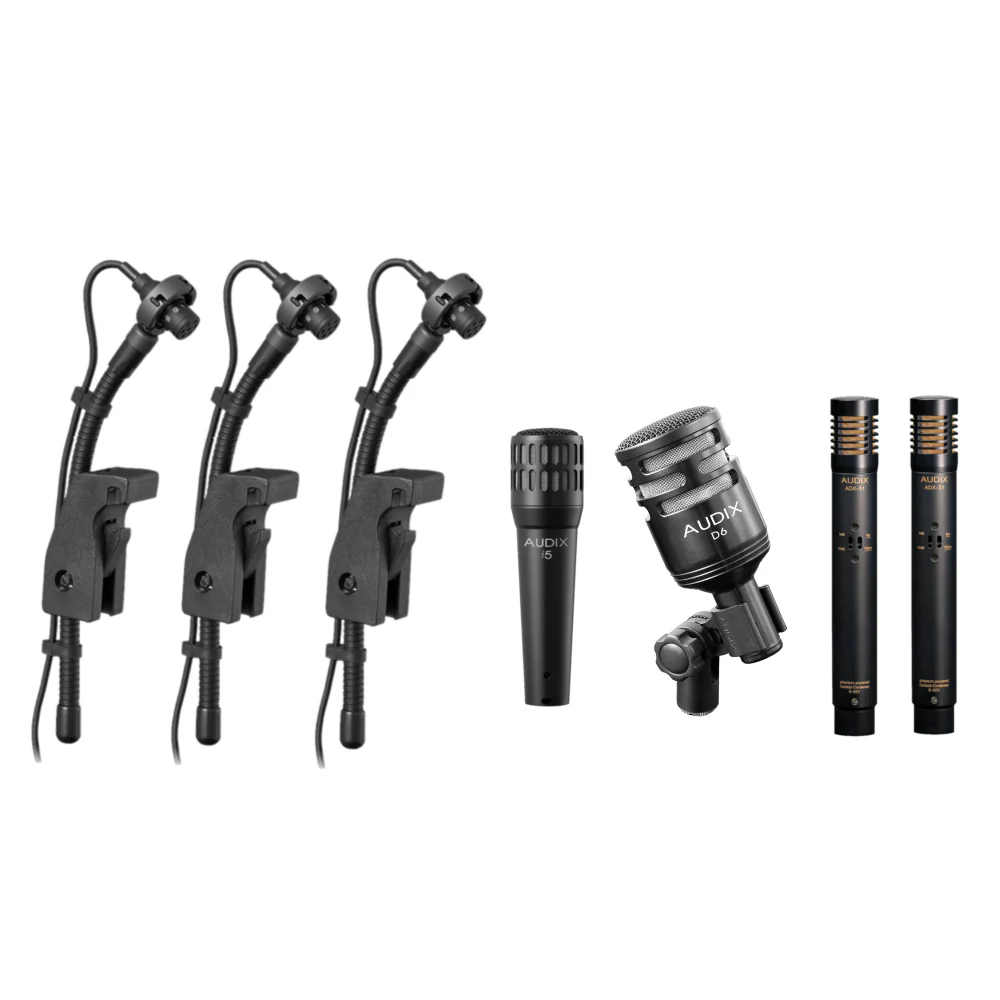

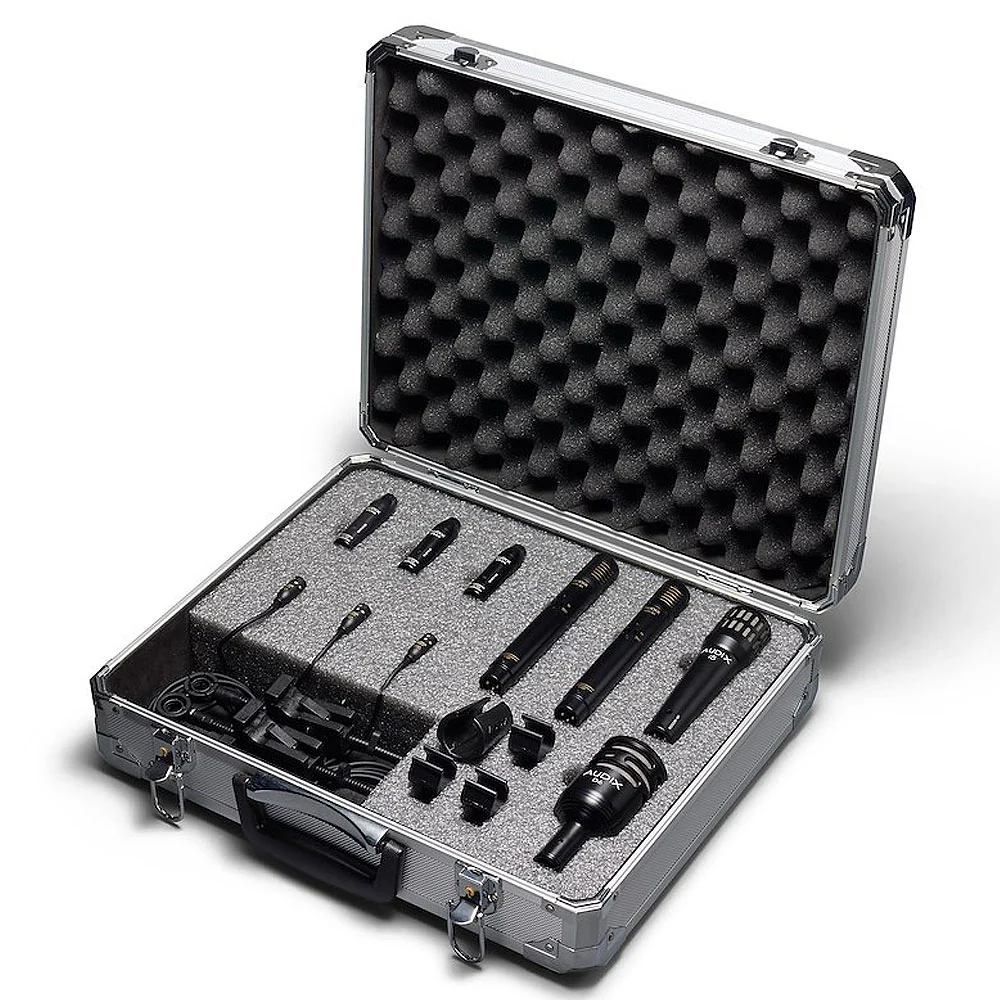

What's Included?

• Aluminium Road Case
• 1 x D6 Kick Mic
• 1 x DCLIP Mic Clip
• 1 x i5 Snare Mic
• 1 x MC1 Mic Clip
• 1 x DVICE Rim Mount
• 3 x MicroD Tom Mics
• 3 x DVICEMICRO mounts
• 3 x APS910 power adapters
• 3 xWS10 windscreens
• 2x ADX51 Overhead Mics
• 2x WS81C Windscreens
