Demo: Audix DP7 Micro Drum Mic Kit

Audix VLMTM dynamic mics manage the transients of the drums at close range while the condensers capture the cymbals and a stereo image of the entire kit from overhead. This award-winning combination of microphones, clips and mounting accessories is packaged securely within a rugged aluminum carrying case.

• Professional set of 7 drum mics for stage or studio
• ADX51 condensers for overheads add spacial dimension
• Recognized industry-wide for exceptional performance and consistency

CLOSE MIKING The D6 for kick drum and the i5 for snare are must-haves for every drummer. The kick and snare are considered the core of any drum kit and the foundation for every groove. Close miking insures that they will be captured in the mix. If either the kick or the snare is unable to be heard, there is simply no groove. The D2 and D4 are industry standards for toms and floor toms. Being high SPL dynamic microphones, the D6, i5, D2 and D4 excel at “close miking”. This miking technique is required in order to capture the attack and percussive sound of the drum. By having the mic close to the source of the sound, it helps to isolate and control the sound of each drum. OVERHEAD MIKING (ambient) Supporting the idea that “less is more”, many engineers will use just two overhead mics to capture the natural sound of the complete drum kit. With two overhead mics, positioned correctly, it is absolutely true that you can capture the transients, tonality and balance of the kit in a completely phase-coherent manner. The ADX51, a pre-polarized condenser microphone with a 14mm gold sputtered diaphragm, is designed with overhead applications in mind. Due to its cardioid pickup pattern, high sensitivity and slim pencil design, the two ADX51 mics can be easily positioned overhead to provide a nice stereo image of the entire drum kit. THE BLEND With contemporary music and the volumes typically generated on stage, it is more practical and effective to create a blended effect of close miking and a stereo image of the entire kit from overhead. The D6 will help provide the earthshaking lows and the attack of the kick; the i5 will reinforce the depth and crack of the snare; the D2 and D4 will pick up the attack and overtones of the toms, and the ADX51 overheads will pick up the hi-hat, cymbals and the ambience of the entire kit. With the DP7, drums will maintain their sound integrity and critical presence, regardless of the size of the room and PA system.

Specifications

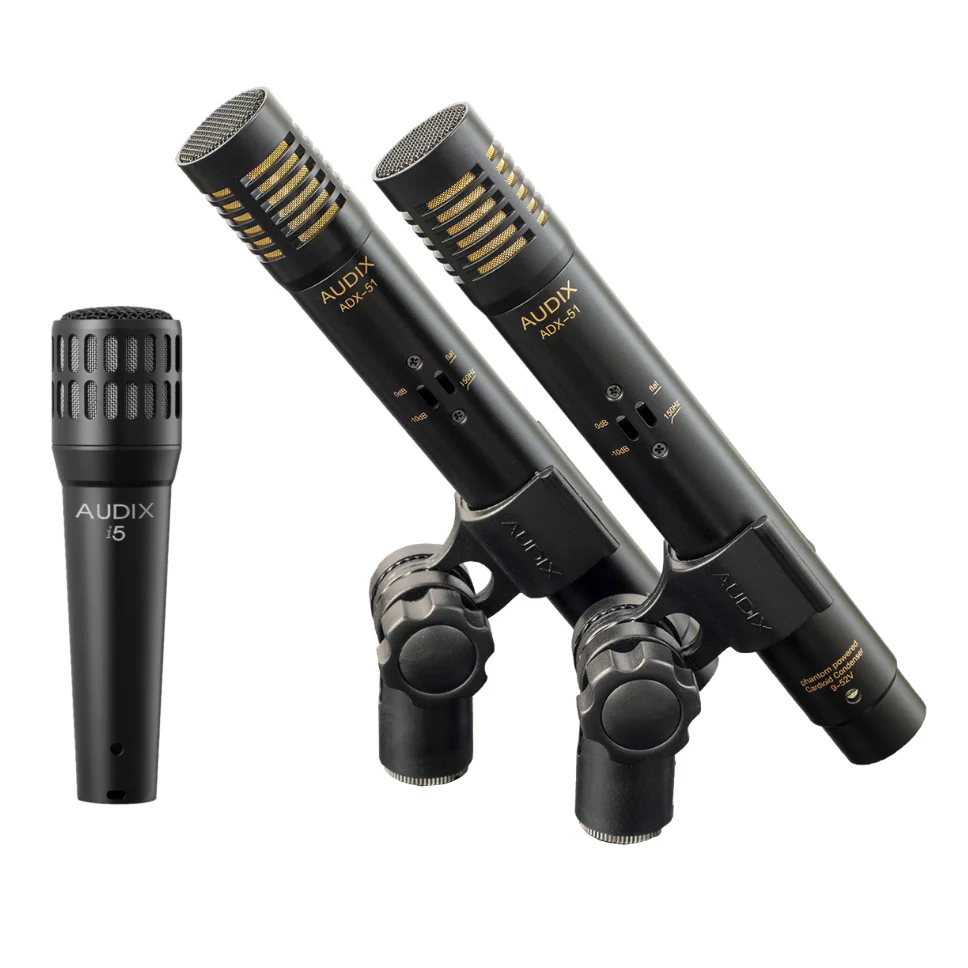

i5 Microphone

• Transducer Dynamic VLM Type B
• Frequency Response 50 Hz - 16 kHz
• Polar Pattern Cardioid
• Output Impedance 150 ohms
• Sensitivity 1.5 mV / Pa @ 1k
• Maximum SPL 140 dB
• Off -axis rejection 23 dB
• Power Requirements None
• Materials / Finish Zinc Alloy / Black Finish
• Product Weight 250 g / 8.8 oz
• Product Length 141.5 mm / 5.6 in

---

D2 Microphone

• Transducer Dynamic VLM Type B
• Frequency Response 68 Hz - 18 kHz
• Polar Pattern Hypercardioid
• Output Impedance 280 ohms
• Sensitivity 1.2 mV / Pa @ 1k
• Maximum SPL 144 dB
• Off -axis rejection 30 dB
• Power Requirements None
• Materials / Finish Black Hard Coat
• Product Weight 250 g / 8.8 oz
• Product Length 100 mm / 3.9 in

---

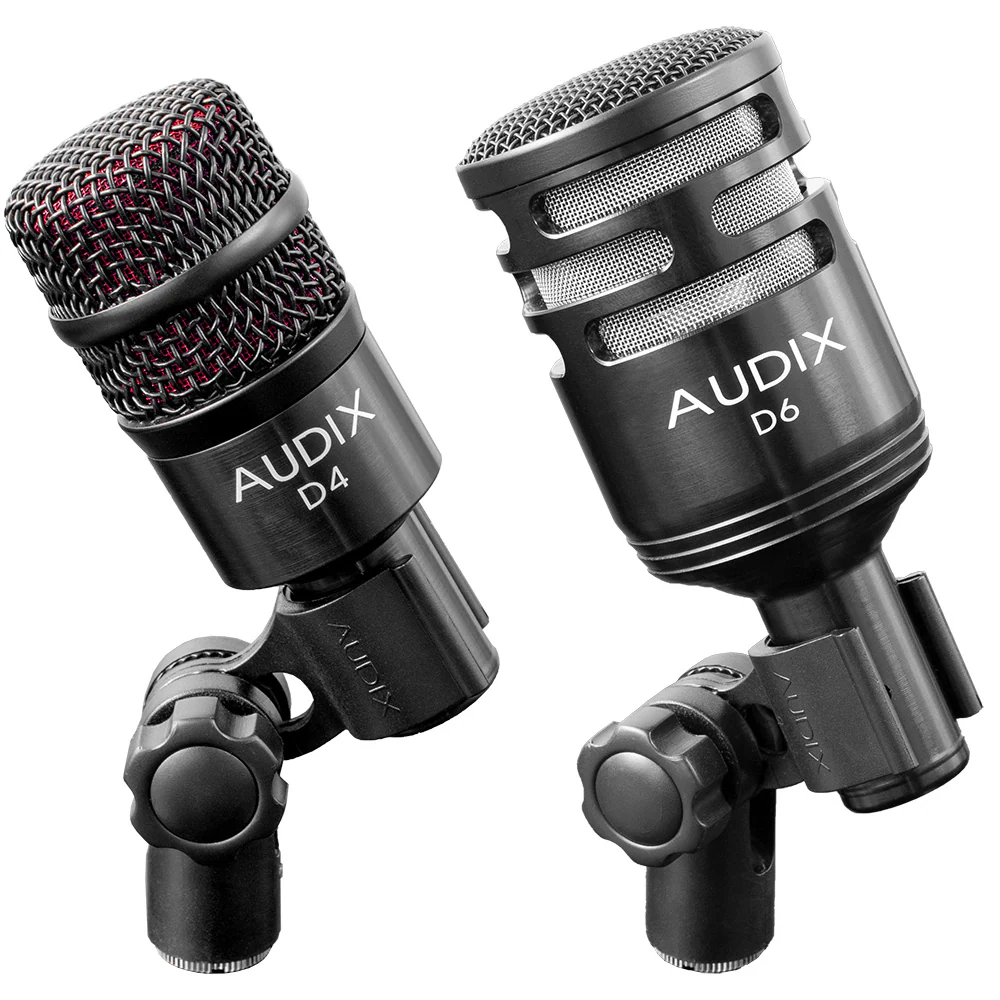

D4 Microphone

• Transducer Dynamic VLM Type D
• Frequency Response 40 Hz - 18 kHz
• Polar Pattern Hypercardioid
• Output Impedance 280 ohms
• Sensitivity 1.4 mV / Pa @ 1k
• Maximum SPL 144 dB
• Off -axis rejection >20 dB
• Power Requirements None
• Materials / Finish Black Hard Coat
• Product Weight 128 g / 4.5 oz
• Product Length 100 mm / 3.9 in

---

D6 Microphone

• Transducer Dynamic VLM Type B
• Frequency Response 30 Hz - 15 kHz
• Polar Pattern Cardioid
• Output Impedance 280 ohms
• Sensitivity 0.8 mV / Pa @ 1k
• Maximum SPL 144 dB
• Off -axis rejection >20 dB
• Power Requirements None
• Materials / Finish Machined Aluminum / Black Finish
• Product Weight 254 g / 8.9 oz
• Product Length 117 mm / 4.6 in

---

ADX51 Microphone

• Transducer Pre-Polarized Condenser
• Frequency Response 40 Hz - 18 kHz
• Polar Pattern Cardioid
• Output Impedance 100 ohms
• Sensitivity 17 mV / Pa @ 1k
• Maximum SPL 132 dB
• Off -axis rejection >15 dB
• Power Requirements 9-52 V phantom
• Materials / Finish Brass / Black Finish
• Product Weight 184 g / 6.5 oz
• Product Length 160 mm / 6.3 in

---

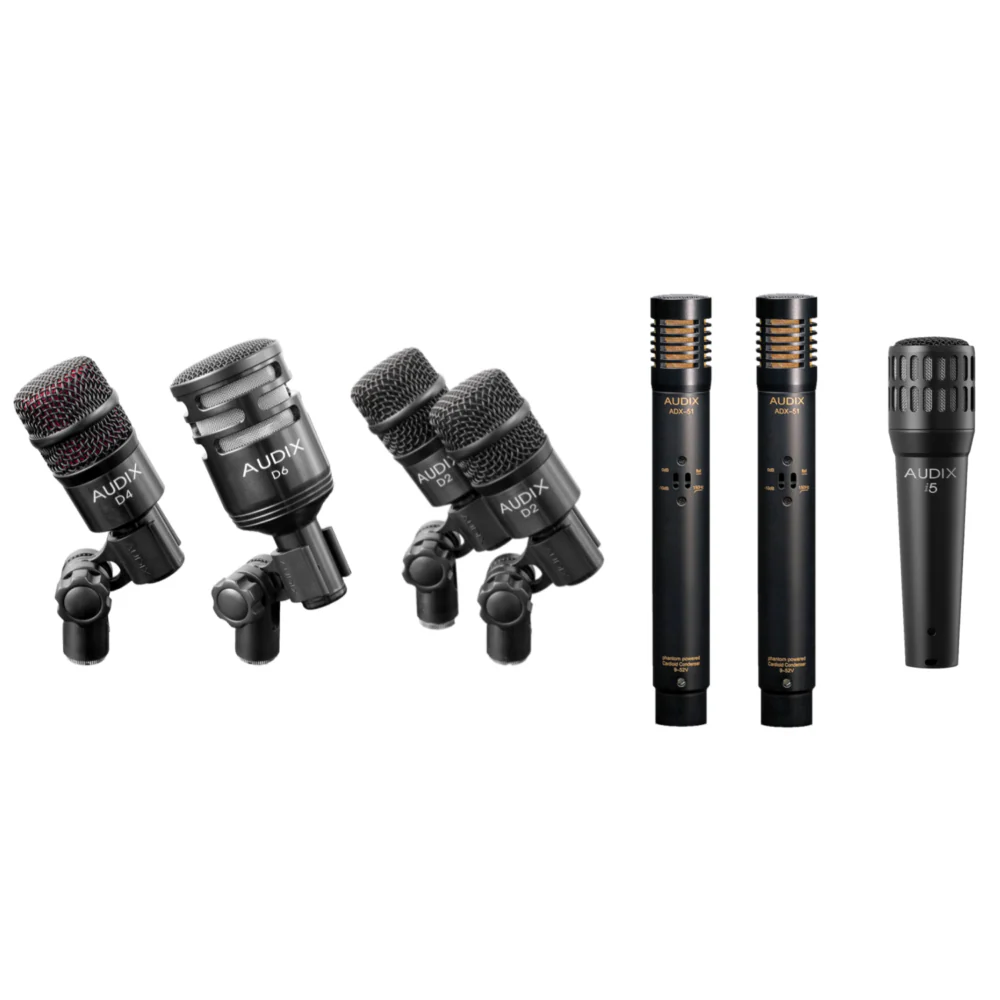

What's Included?

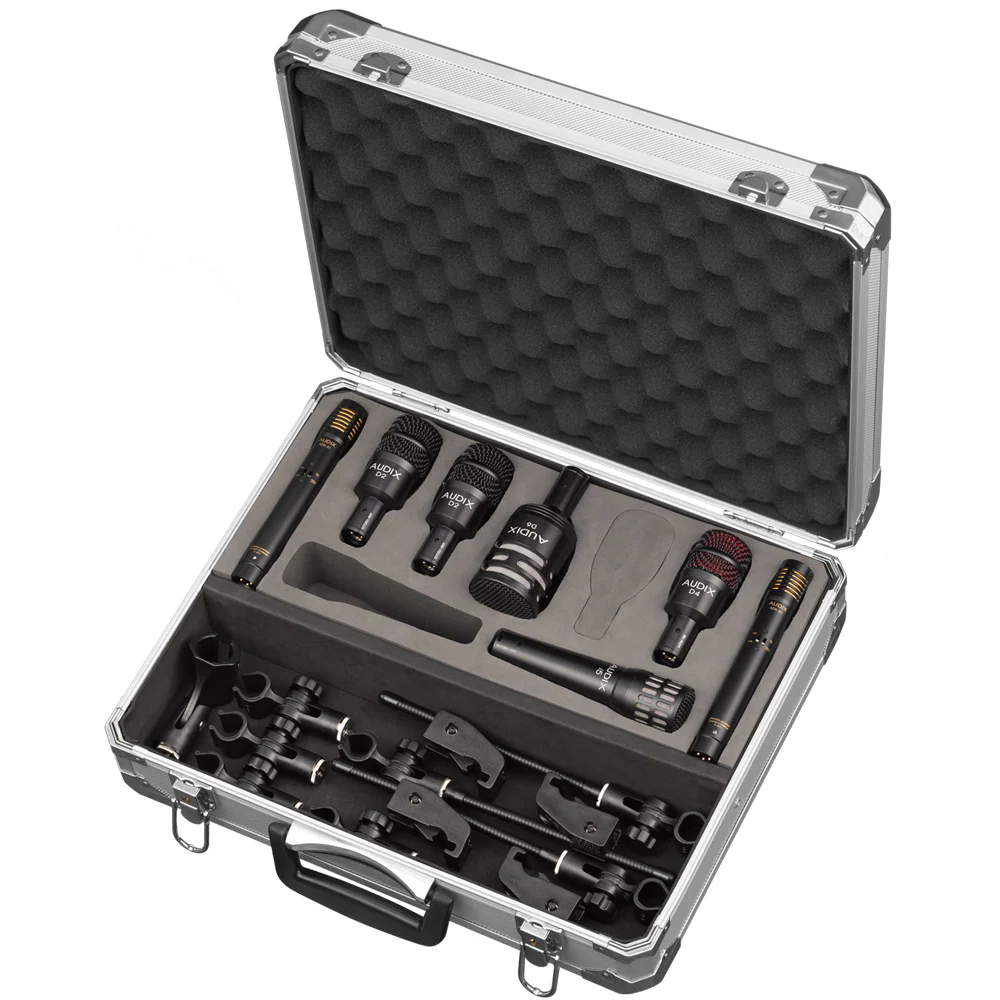

• Aluminum Road Case
• 1 x i5 Snare Mic
• 2 x D2 Rack Tom Mics
• 1 x D4 Floor Tom Mic
• 1 x D6 Kick Drum Mic
• 2 x ADX51 Overhead Mics
• 4 x DVICE Rim Mounts
• 3 x DCLIP Mic Clips
• 1 x MC1 Mic Clip
• 2 x WS81C Windscreens
