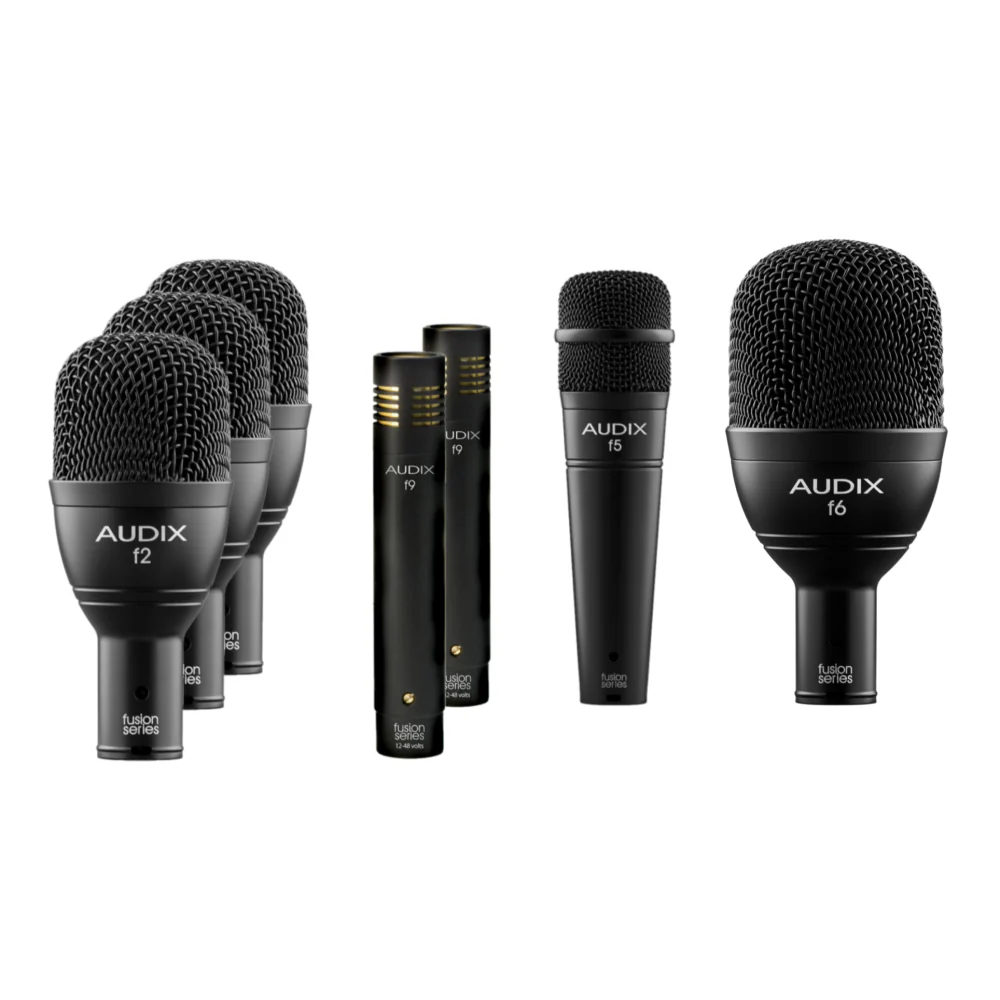

The FP7 drum pack includes a combination of f2, f5, f6 dynamic mics and two f9 capacitors.

• The f5 is tuned for snare drums and can also be used for bongos, timbales, guitar cabinets, and acoustic instruments.
• F2 is ideal for rack toms, floor toms, congas, djembe, bongos, timbales, brass and woodwind instruments.
• The f6 is designed for kick drums, bass cabinets, cajons and other low frequency instruments with extended bass response.
• The f9 condenser mic captures the cymbals from above and also captures the hi-hat. Fusion series microphones are designed for demanding live stage use and are ideal for rehearsals, schools, houses of worship, and a variety of home recording applications.

USER TIPS The f2, f6 and f9 microphones are supplied with the DCLIP, a heavy duty nylon stand adapter with snap-to-fit design; the f5 is supplied with the MC1 mic clip. Each clip comes with a 3/8” thread adapter which is mainly used with European mic stands. The following are some ideas as to how the microphones in the packs interact with each other. Kick drum: The f6 is the kick drum mic. A great accessory to help position the f6 is the STANDKD, which is specifically designed for that application. To position the f6, a good starting point is to place the mic inside the front hole of the kick drum, pointing toward the beater. (Tip: be sure that the grill is completely inside the hole). For more attack, move the mic closer toward the head, making sure not to position the mic right in front of the beater. Snare and toms: The f2 (snare) and f5 (toms) are designed to be close miked. A good starting point is two inches above the rim with the mic pointing toward the center of the head. For more “rim” sound, pull the mic back closer to the rim. For more resonance and depth of field, pull the mic further away from the head. The trick is to find the right balance between resonance and controlling bleed from the other drums. The FP7 package includes two f9 condensers for overhead miking. With the addition of the overhead mics, you have the opportunity to create more depth of field and more presence within the mix. There is a choice of using both f9’s for overheads, or one for high hat and one for overhead. Overheads: There are several options when placing two mics overhead. The most common concept is to keep the snare as the focal point and move the mics into various left and right positions equal distance from the snare; 4 feet is a good starting point. For best results, keep the mics in a vertical position, keeping in mind that you are not necessarily just miking the cymbals but the whole kit. You will need to find a balance between the overhead mics and the drum mics, some of which will be dictated by the venue and the PA system. One for high-hat, one for overhead: The f9 for high hat should be placed 2-3 inches above the top cymbal and toward the outside edge. The overhead mic can be placed above the cymbals, generally above the rack toms. In the case where there are more cymbals on one side of the kit than the other, the mic can favor the side with the most cymbals.

Specifications

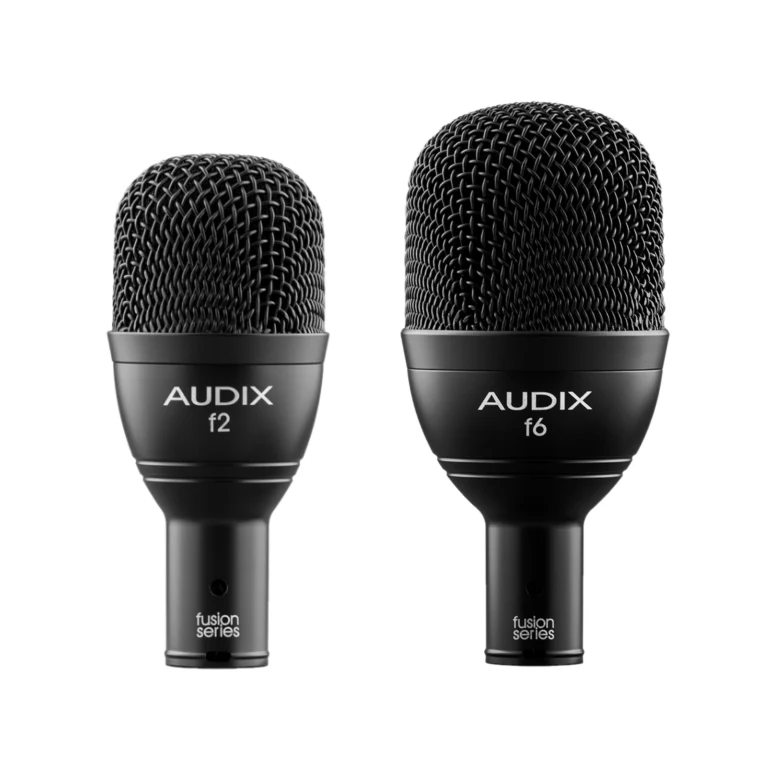

F2 Microphone

• Transducer Dynamic
• Frequency Response 52 Hz - 15 kHz
• Polar Pattern Hypercardioid
• Output Impedance 580 ohms
• Sensitivity 2 mV / Pa @ 1k
• Maximum SPL 139 dB
• OFf-axis rejection 20 dB
• Power Requirements None
• Materials / Finish Zinc Alloy/ Black Finish
• Product Weight 247 g / 8 oz
• Product Length 104 mm / 4.09 in

---

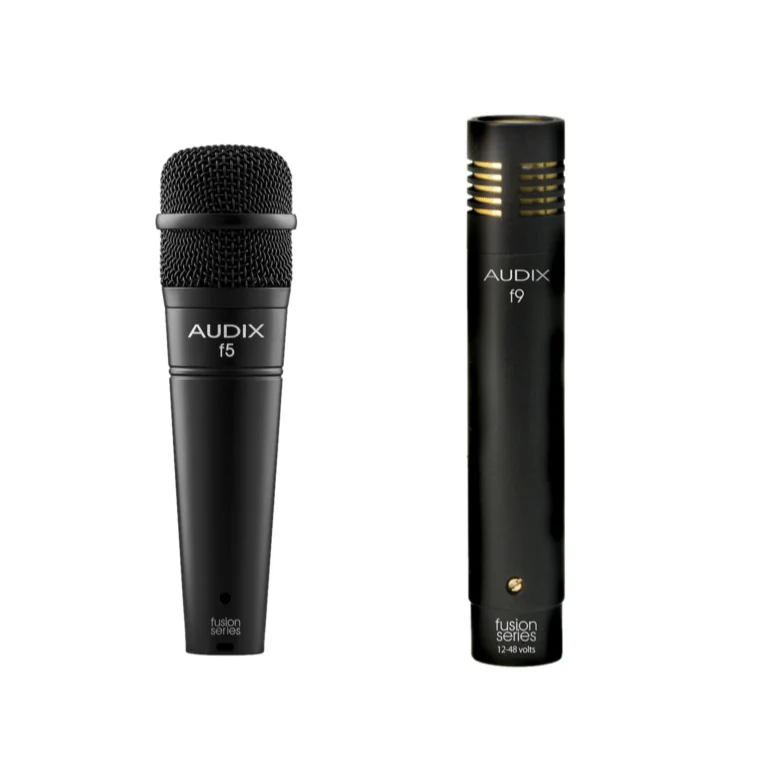

F5 Microphone

• Transducer Dynamic
• Frequency Response 55 Hz - 15 kHz
• Polar Pattern Hypercardioid
• Output Impedance 580 ohms
• Sensitivity 2.2 mV / Pa @ 1k
• Maximum SPL 137 dB
• OFf-axis rejection 20 dB
• Power Requirements None
• Materials / Finish Zinc Alloy/ Black Finish
• Product Weight 247 g / 8 oz
• Product Length 145 mm / 5.7 in

---

F6 Microphone

• Transducer Dynamic
• Frequency Response 40 Hz - 16 kHz
• Polar Pattern Hypercardioid
• Output Impedance 580 ohms
• Sensitivity 1.2 mV / Pa @ 1k
• Maximum SPL 140 dB
• OFf-axis rejection 20 dB
• Power Requirements None
• Materials / Finish Zinc Alloy/ Black Finish
• Product Weight 247 g / 8 oz
• Product Length 121 mm / 4.76 in

---

F9 Microphone

• Transducer Pre-polarized Condenser
• Frequency Response 40 Hz - 20 kHz
• Polar Pattern Cardioid
• Output Impedance 200 ohms
• Sensitivity 8 mV / Pa @ 1k
• Maximum SPL 137 dB
• OFf-axis rejection 24 dB
• Power Requirements 12 - 48 V Phantom
• Materials / Finish Zinc Alloy/ Black Finish
• Product Weight 95 g / 3.3 oz
• Product Length 111 mm / 4.37 in

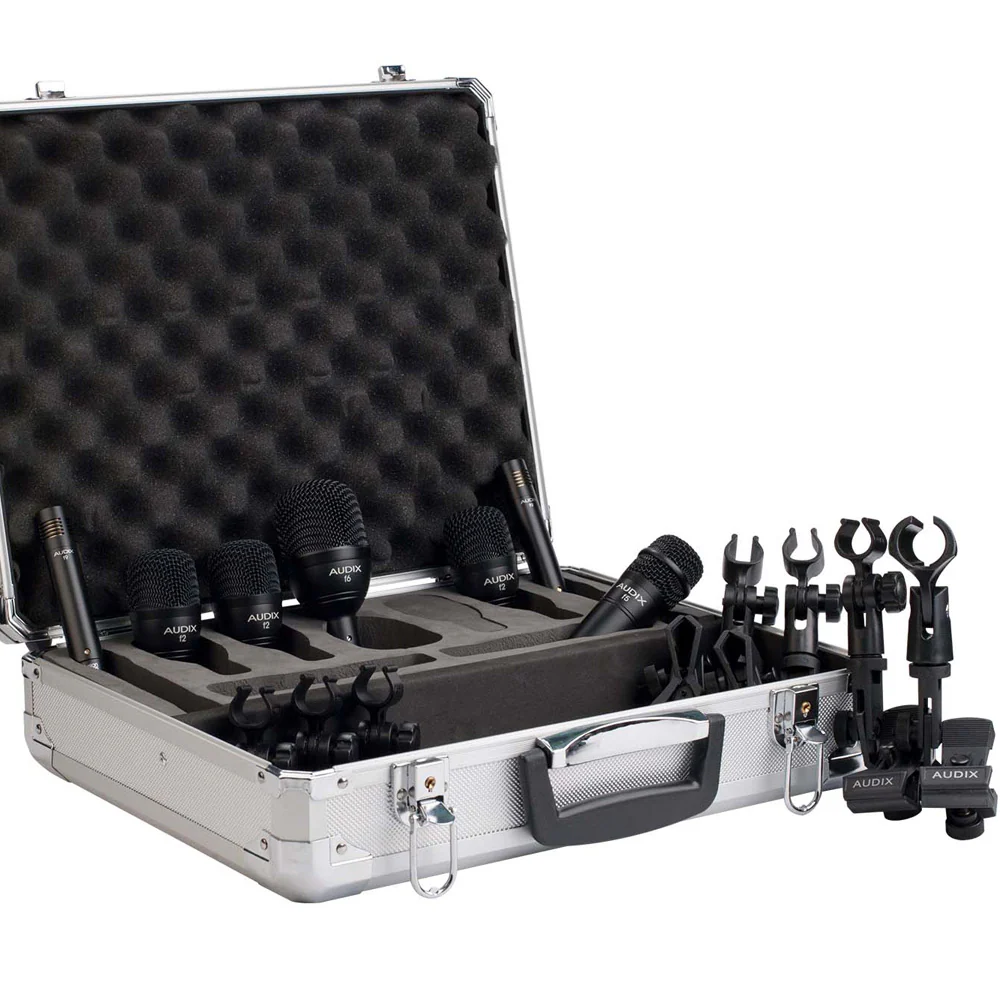

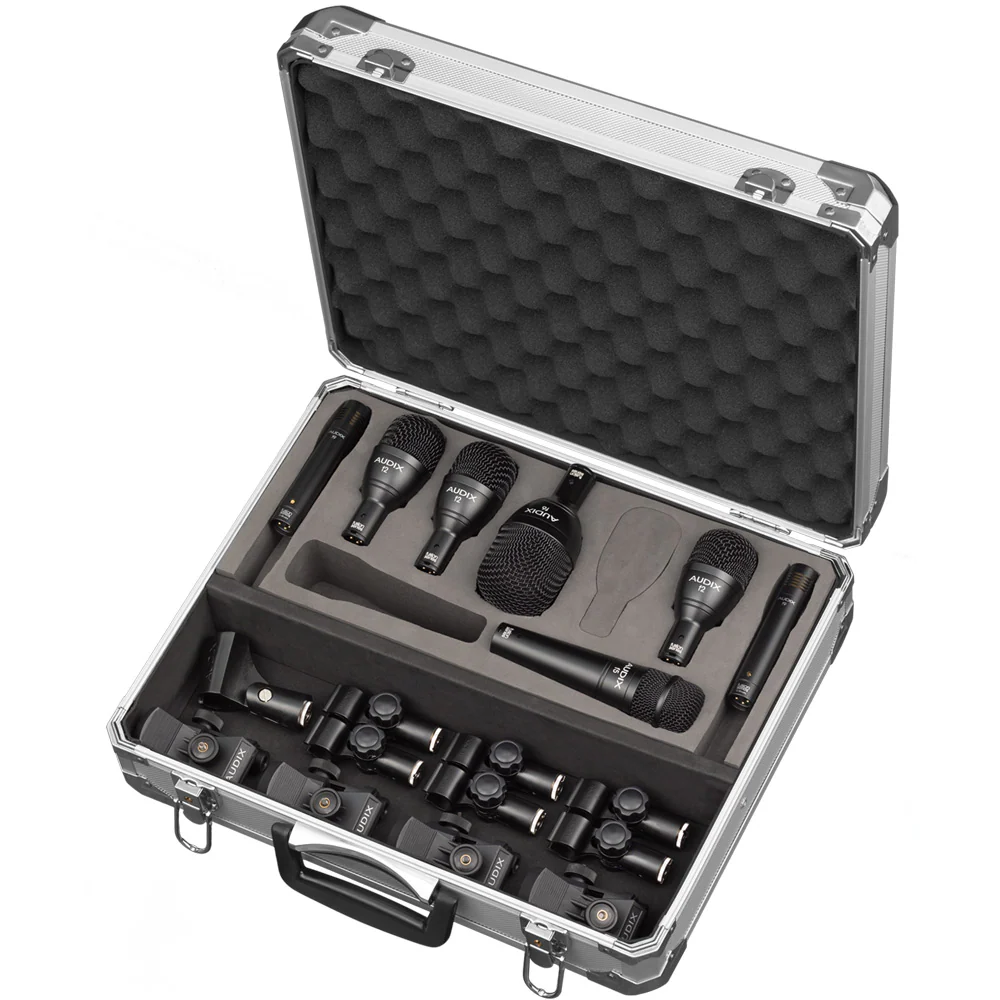

What's Included?

• Aluminum Road Case
• 3 x f2 Rack and Floor Tom Mics
• 1 x f5 Snare Mic
• 1 x f6 Kick Drum Mic
• 2 X f9 Overhead Mics
• DCLIP - Heavy duty mic clip (6)
• MC1 - Nylon mic clip (1)
• DFLEX - Dual pivot rim mounted clip with extra wide butterfly jaws (4)
• WSF9 - WSF9 Windscreens (2)
