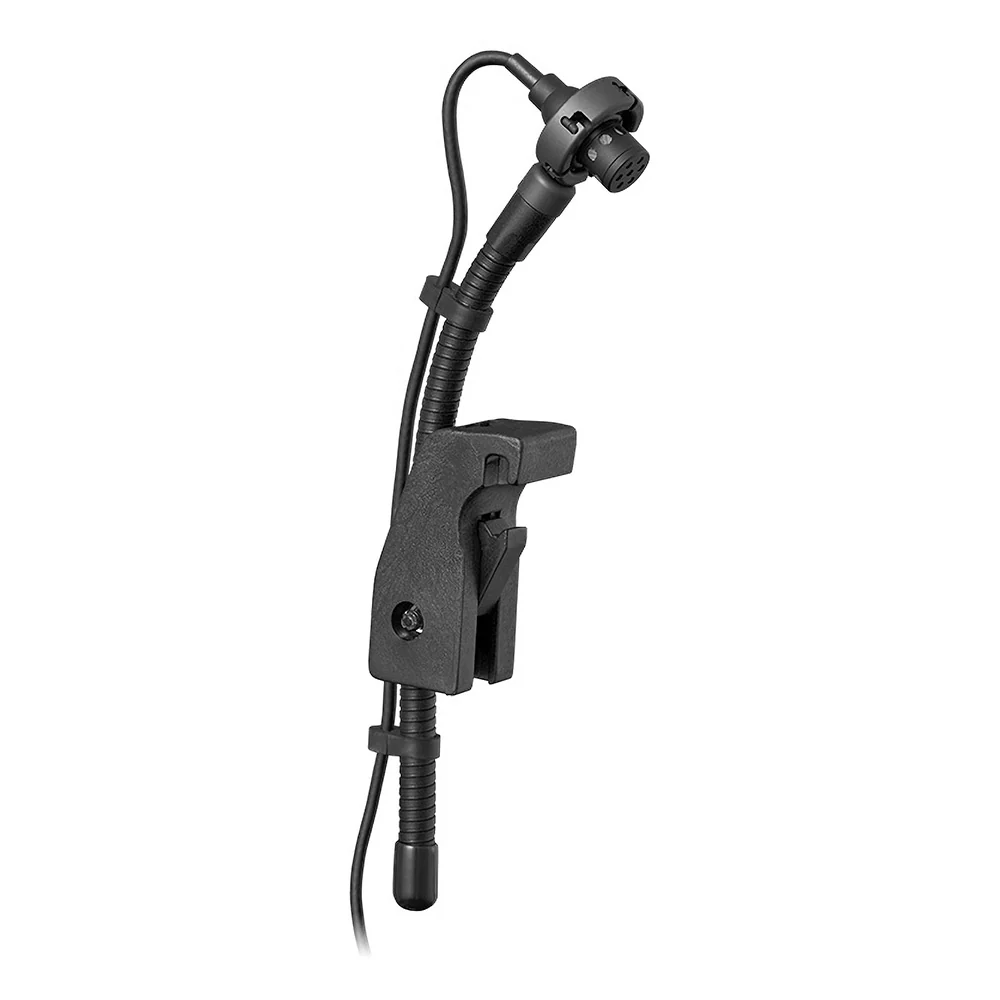

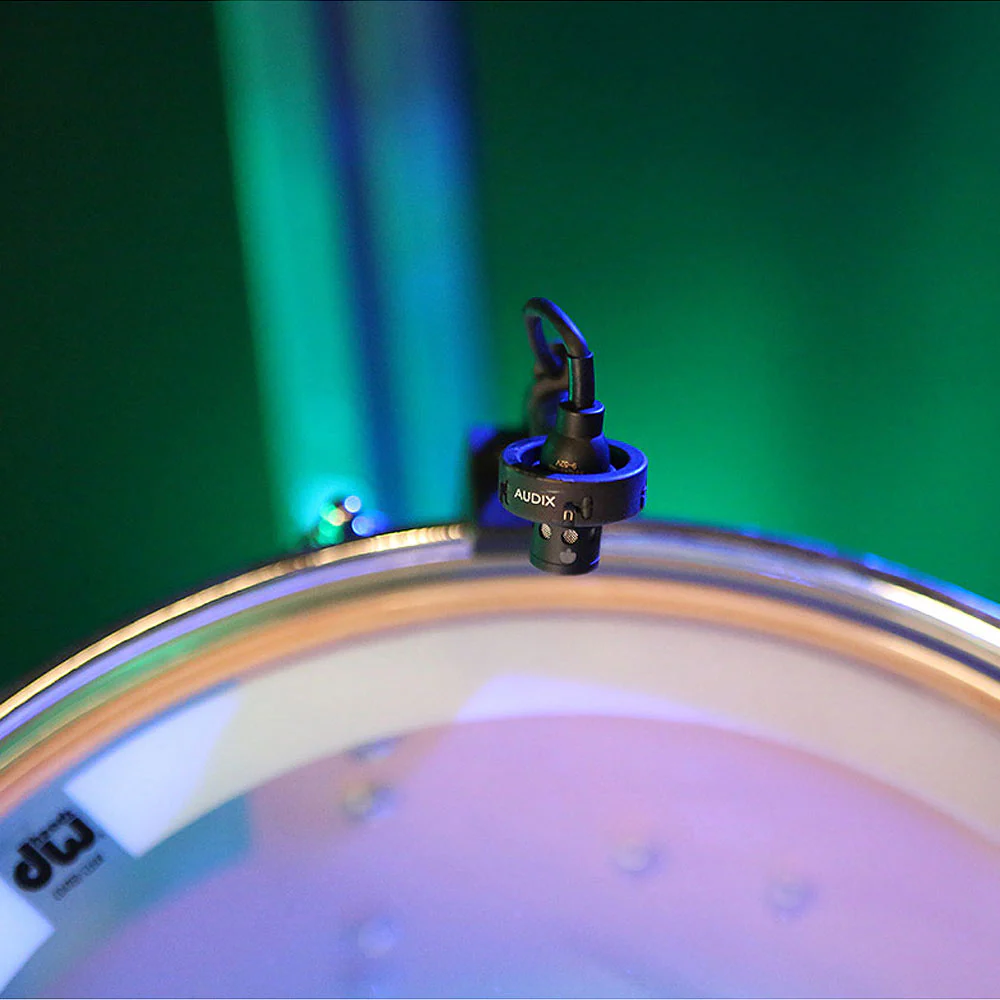

The MicroD is characterized with a uniformly controlled hypercardioid polar pattern provides excellent isolation and feedback control on stage as well as natural sound reproduction at very close distances. With a smooth and accurate response over a frequency range of 40 Hz - 20 kHz, the MicroD is lightweight, compact and simple to use. Housed in an aluminum ring and isolated by means of a rubber shockmount system, the MicroD comes with the DVICEMICRO mount for drums. The DCLAMPMICRO mount is an optional accessory for hand percussion. Other accessories are available, enabling the MicroD to be used on a mic stand or cymbal stand for a wider variety of applications. The MicroD operates on phantom voltage of 9 - 52 Volts and is supplied with a phantom power adapter, 6’ integrated mic cable and carrying pouch. Applications

• Drums
• Hand percussion
• Cymbals, percussion toys

Features

• Miniature condenser clip-on microphone
• Manages high SPLs without distortion
• DVICE rim mount clip
• Rubber shock mount system reduces vibration
• Includes APS910 phantom power adapter
• Designed, assembled & tested in the USA
• 3 year warranty

Specifications

• Transducer Type Pre-Polarized Condenser
• Frequency Response 40 Hz - 20 kHz
• Polar Pattern Hypercardioid
• Output Impedance 250 ohms
• Sensitivity 5.6 mV / Pa @ 1k
• Equivalent Noise Level 24 dB
• Signal to Noise Ratio 70 dB
• Maximum SPL 140 dB
• Power Requirements 9 - 52 V phantom
• Connector 3-pin mini to 3-pin XLRm (APS910)
• Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
• Materials / Finish Machined Brass Capsule / Black Finish
• Gooseneck Flexible Steel
• Product Weight 47 g / 1.6 oz
• Product Length 30 mm / 1.14 in
