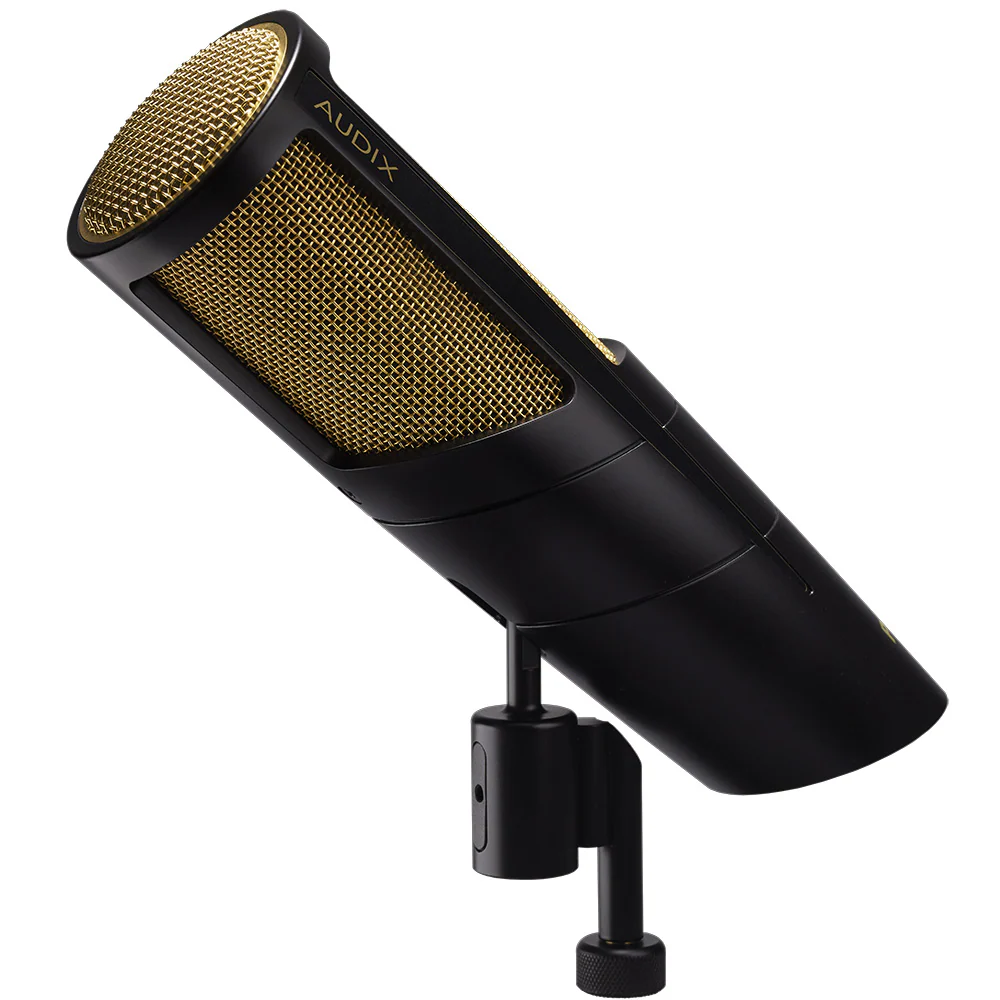

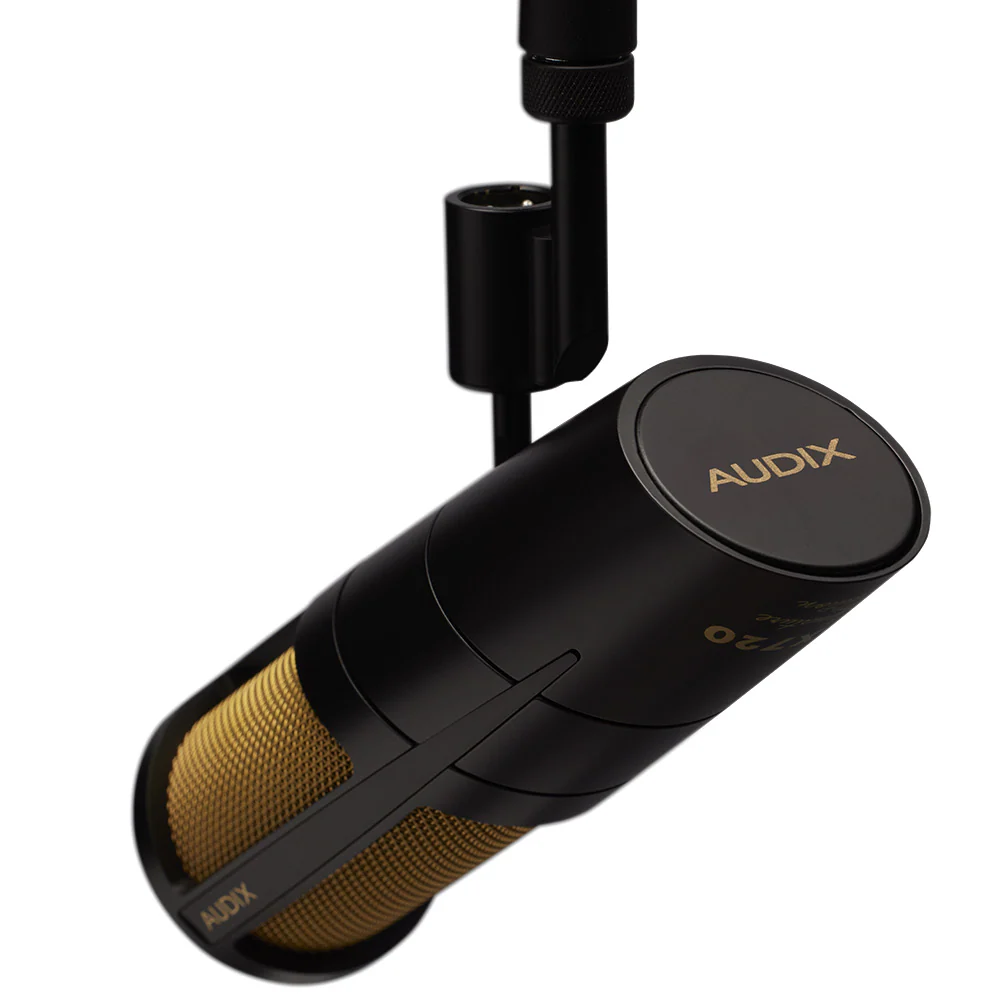

The PDX720’s sound signature has the ability to produce natural, smooth vocals with great low-end extension, even without active filtering. Additionally, its default gain level eliminates the need for preamp boosts or cloud lifters. The microphone also features two unique 3-position switches that enable users to quickly modify sound by adjusting the low cut and presence boost, minimizing the need for complex sound mixing adjustments. In addition to excelling in vocal recording, the PDX720 is also an excellent choice for drum and instrument recording. Its warm low-end tones and clear, defined highs produce great clarity without sounding harsh. AUDIX’s philosophy of using only the highest quality components and premium solid materials is fully embraced by the PDX720, ensuring both reliability and exceptional sound quality. Designed, machined, assembled, and tested by Audix in Wilsonville, Oregon Applications

• Vocals
• Voiceover
• Professional Podcast
• Studio Broadcast
• Studio recording
• Drum recording
• Instrument recording

Features

• Dynamic Microphone

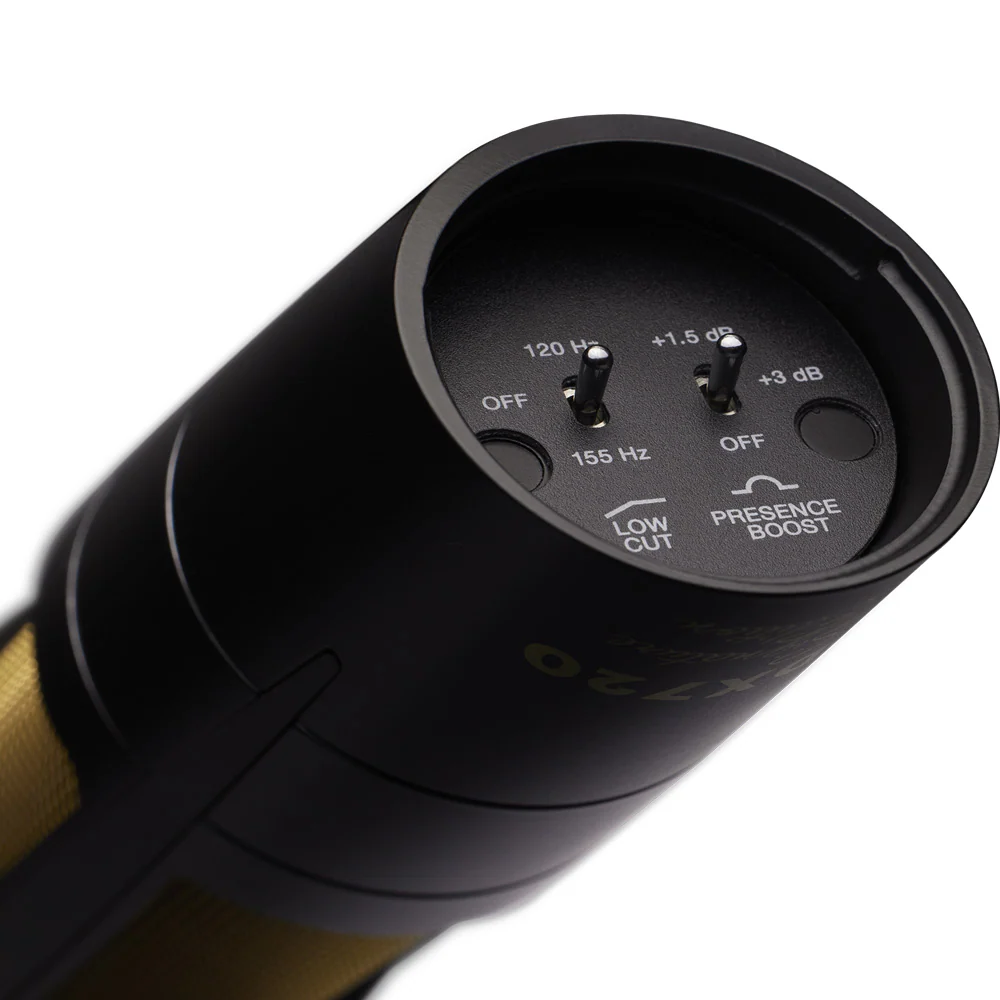

• High-pass filter switch at 120Hz and 155Hz
• Presence boost switch +1.5db and 3db
• Hyper Cardioid
• Plug & Play brilliant sound with excellent default gain level
• Low noise preamp circuitry
• Frequency response optimized for vocal performance
• Great versatility for drum and instrument recording
• Designed, machined & tested in the USA

Specifications

• Transducer Type Dynamic
• Frequency Response 50Hz - 20 kHz
• Polar Pattern Hypercardioid
• Output Impedance 280 ohms
• Sensitivity 1.9 mV / Pa @ 1k
• Maximum SPL 135 dB
• Power Requirements none
• Connector 3-pin XLRm
• Polarity
  • Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output
  • XLR connector
• Materials / Finish Aluminum / Black Finish
• Product Weight 869gm
• Product Length 212mm
